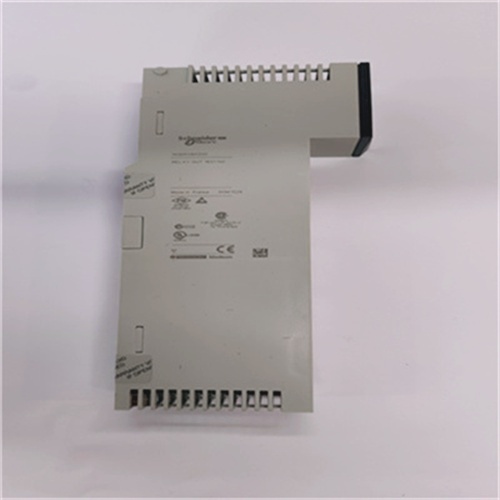

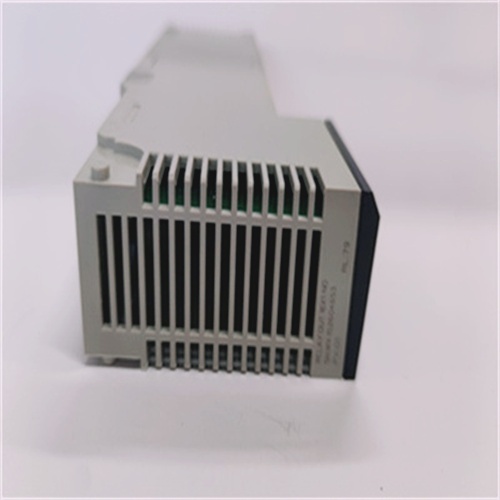

Schneider 140DRA84000 Detailed Information

140DRA84000 is a Schneider Quantum series discrete output module.It adopts a two-set isolation design,which can effectively prevent circuit interference and electrical fault propagation,and adapt to voltage fluctuations and electrical noise in the industrial environment.It supports 250V AC/30V DC load,with a single-point maximum current of 2A(60°C)and a surge current of 10A(10ms capacitive load),which is suitable for high-load scenarios.

Intelligence and compatibility

This module integrates LED status indication(bus communication,channel activation,etc.),supports industrial protocols such as Modbus TCP,EtherNet/IP,and can seamlessly connect with Schneider PLC,frequency converter and third-party systems.Its built-in hook design is compatible with 35mm DIN rail installation and is adapted to compact controllers such as SIMATIC S7-1200 to save control panel space.

Safety and environmental certification

The module has passed international certifications such as UL 508,CSA 22.2-142,CE,etc.,and provides a conformal coating version(140DRA84000C),which is suitable for harsh environments such as dust and corrosive gases.Its green design complies with RoHS standards and belongs to Schneider Premium Green products,taking into account both performance and sustainability.

Industry application scenarios

Industrial automation:control conveyor belt start and stop,robotic arm movement and other equipment to improve the efficiency and stability of the production line.

Power system:Manage substation switching and closing and signal indication to ensure the safe operation of the power grid.

Ports and mines:It is used in bulk loading and unloading equipment such as bucket wheel stackers to support frequent operation and complex control requirements.

Intelligent building:realize the logical control and state monitoring of lighting,air conditioning and other equipment.

Technological trends and industry impact

Industrial Internet of Things(IIoT)integration

Combined with PLC data acquisition and industrial Internet of Things platform,140DRA84000 can transmit device status data in real time,supporting predictive maintenance and remote monitoring.For example,in coal preparation plants,its modular design helps upgrade the system,reduce downtime and increase production.

Intelligent and edge computing

Through edge computing power,the module can preprocess field data and optimize control logic.For example,in the wind farm,the output parameters are dynamically adjusted with the AI algorithm to improve the power generation efficiency.

Green manufacturing and energy efficiency improvement

Low-power design(5.5W+0.5W/point)and wide temperature range(-40°C to 70°C)adapt to new energy scenarios(such as photovoltaic inverters and energy storage systems)to help”double carbon”targets.

Challenges and future directions

Domestic substitution pressure:Domestic manufacturers(such as Huichuan Technology)have risen in the field of small-scale PLC,and Schneider needs to strengthen the ecological compatibility of medium and large-scale PLC to consolidate the high-end market.

Data security risks:Under the popularization of the Industrial Internet of Things,it is necessary to improve the design of encryption protocols and physical isolation to prevent network attacks.

Summary

Schneider 140DRA84000 has become the core module of industrial automation with its high reliability,intelligence and multi-scene adaptability.Its technological evolution is deeply combined with the trend of IIoT and edge computing,and continues to promote the improvement of production efficiency and safety in energy,ports,construction and other fields.In the future,it needs to make continuous breakthroughs in green manufacturing and data security protection.
