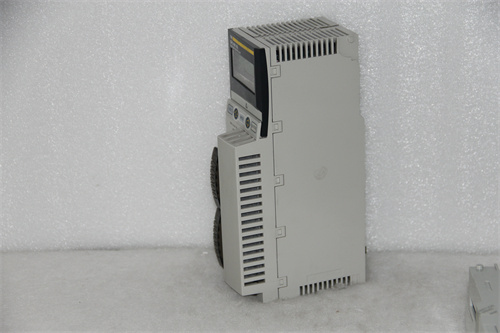

Schneider 140CPU65160 Product Overview

140CPU65160 is part of Schneider’s Modicon Quantum automation platform and is a high-performance central processing unit module.It is mainly used in industrial automation and control systems,responsible for executing user-written control logic,monitoring processes,and processing input and output signals.

Technical Specifications

Processing power:The processor has powerful processing power and can handle large-scale control tasks.

Communication interface:Supports multiple communication interfaces,including Ethernet,serial communication,etc.,to communicate with other PLC modules,external devices,and upper-level monitoring systems.

Program storage:Provides memory space for storing user-written control programs,including RAM(random access memory)and flash memory.

Real-time clock:Integrated real-time clock,supports timestamps and time-related control functions.

Fault diagnosis:With fault diagnosis function,it can quickly detect and eliminate system faults.

Programmability:The user can write the control logic in a specific programming language(usually something like IEC 61131-3)and load it into the CPU module.

Clock frequency:266 MHz.

Number of slots:2/3/4/6/10/16 slots are possible(depending on the configuration).

Number of racks:2 local racks.

Number of distributed I/O stations:63 stations,each rack contains 3 distributed networks.

Number of remote I/O stations:31,including 2 remote racks.

Number of inputs and outputs

Local I/O:1024 input channels and 1024 output channels(up to 27 slots).

Remote I/O(RIO):31744 input channels and 31744 output channels.

Distributed I/O(DIO):8000 input channels and 8000 output channels per network.

Number of analog inputs and outputs

Local I/O:64 input channels and 64 output channels(up to 27 slots).

Remote I/O(RIO):1984 input channels and 1984 output channels.

Distributed I/O(DIO):500 input channels and 500 output channels per network.

Product Features

High performance:With powerful processing power and high-speed data transmission rate,it can meet the high-performance requirements of industrial automation systems.

High reliability:Made of high-quality materials and advanced production processes,it has high reliability and stability.

Easy to expand:Supports a variety of slots and I/O modules,which is convenient for users to expand and upgrade according to actual needs.

Easy to maintain:All modules support hot-swap function,and modules can be replaced or maintained while the system is running,reducing system downtime.

Rich communication interfaces:Supports a variety of communication protocols and interfaces,which is convenient for integration and communication with other devices and systems.

Application scenarios

140CPU65160 is suitable for various industrial automation control systems,such as manufacturing,energy,water treatment,chemical industry,power and other fields.It can be used as the core component of the control system to achieve real-time monitoring and control of industrial processes and improve production efficiency and quality.
