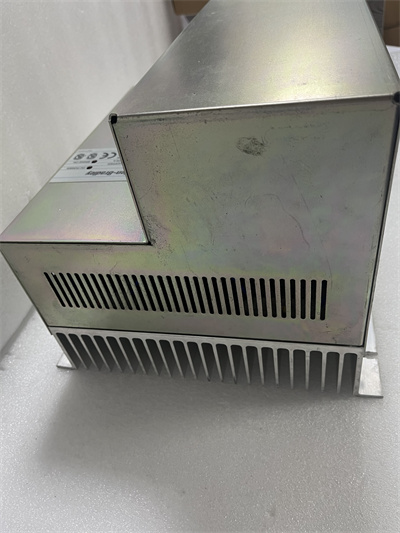

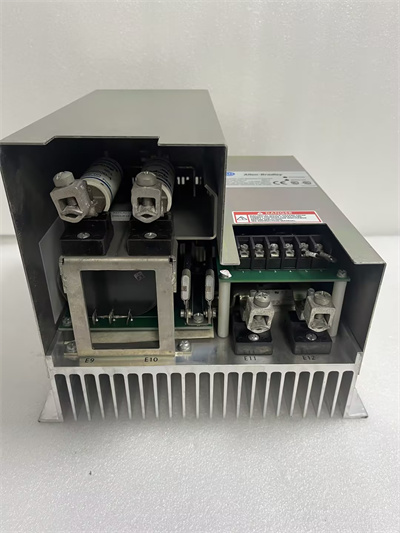

Allen‑Bradley 1336-WB110 Product Overview

1336-WB110 is a dynamic brake chopper module produced by Allen-Bradley,also known as Rockwell Automation.The following is a detailed introduction to 1336-WB110.

Basic specifications

Rated voltage:380/415/460V AC

DC continuous voltage:750V

Working voltage range:380~480V AC

Working current:110A

Braking resistor:2.5 ohms

Main features

Improved braking torque:1336-WB110 can significantly increase braking torque from 10%to 100%to higher levels(although the specific percentage of improvement may vary depending on the application scenario,the product description mentions that it can significantly Improved braking performance).

Overvoltage Protection:The module is equipped with an SCR overvoltage crowbar circuit,which is a cheap but effective overvoltage protection mechanism.

Voltage Control:Features Insulated Gate Bipolar Transistor(IGBT)chopper transistor voltage control to effectively regulate the DC bus voltage during regeneration.

Parallel Configuration:The 1336-WB110 can be set up in parallel with another Allen-Bradley brake chopper module in a master-slave configuration.

Fault indication:Equipped with a fault indication function,it closes when the brake module is powered and opens when a brake fault or power failure occurs.

Application and Compatibility

Application scenarios:1336-WB110 is suitable for industrial applications that require dynamic braking,such as inverter-controlled motor systems.

Compatibility:The module is compatible with Allen-Bradley’s 1336,1336VT,1336PLUSII,1336FORCE or 1336IMPACT inverter series.

Physical and Environmental Characteristics

Dimensions:290.6 mm x 239.8 mm x 304.8 mm(11.44 in x 9.44 in x 12 in)

Weight:Approx.11.34 kg(25 lbs)

Operating temperature range

Working:-1040℃(14104℉)

Storage:-4070℃(-40158℉)

Humidity range:No derating within the non-condensing and non-corrosive humidity range of 5%to 95%.
