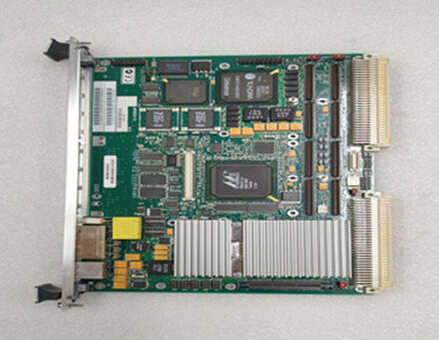

Motorola MVME55006E-0163R Controller

The Motorola MVME55006E-0163R is a high-performance embedded computer module designed for demanding industrial automation and control applications. Built on the PowerPC architecture, this controller offers robust computing capabilities, reliability, and flexibility for critical embedded systems.

Key Features

1. Powerful Processor:
   • Equipped with a 1 GHz MPC7457 PowerPC processor (or MPC7477 in some configurations), delivering exceptional computational performance for real-time control and data processing tasks.
2. High-Speed Memory:
   • Features up to 2 GB DDR2 SDRAM (or 512 MB ECC SDRAM in certain variants), ensuring rapid data access and system responsiveness.
3. Rich I/O and Connectivity:
   • Dual Gigabit Ethernet ports for high-speed networking.
   • USB 2.0, RS-232/422/485 serial ports, and PCI/PMC expansion slots for versatile connectivity and integration with other devices.
   • Supports CompactFlash and SATA storage options for flexible data storage solutions.
4. Industrial-Grade Reliability:
   • Designed to operate in harsh environments with an extended temperature range (-40°C to +85°C).
   • Supports wide voltage input (9V–36V DC), making it suitable for various industrial power supplies.
   • High resistance to shock and vibration, ensuring long-term stability in mission-critical applications.
5. High Customizability and Expandability:
   • Modular design allows for easy configuration with additional expansion cards and modules.
   • Supports a range of operating systems, including VxWorks, Linux, and QNX, enabling developers to choose the most suitable platform for their needs.
6. Compact and Rugged Design:
   • Dimensions: 233 mm (L) × 160 mm (W) × 40.6 mm (H).
   • Lightweight and robust construction for easy installation and maintenance in space-constrained environments.

Technical Specifications

• Processor: 1 GHz PowerPC MPC7457/MPC7477
• Memory: Up to 2 GB DDR2 SDRAM (or 512 MB ECC SDRAM)
• Storage: 128 MB Flash memory (for OS and data storage)
• Ethernet: Dual 10/100/1000Base-T ports
• Serial Ports: RS-232/422/485
• USB: USB 2.0
• Expansion Slots: PCI, PMC
• Power Input: 9V–36V DC
• Operating Temperature: -40°C to +85°C
• Dimensions: 233 mm × 160 mm × 40.6 mm
• Weight: Approximately 1.2 kg

Applications

• Industrial Automation: Control and monitoring of production lines, machinery, and automation systems.
• Military and Aerospace: Use in avionics, vehicle control systems, and communication equipment.
• Telecommunications: Data processing and control in communication base stations and network devices.
• Medical Equipment: Integration into medical imaging devices and laboratory instruments.
• Transportation: Traffic signal control and intelligent transportation systems.
• Energy: Power equipment control and grid monitoring.

Advantages

• High Reliability: Industrial-grade components and rigorous testing ensure stable operation in harsh conditions.
• Real-Time Performance: Excellent real-time processing capabilities for time-critical applications.
• Scalability: Flexible configuration options to meet specific application requirements.
• Ease of Maintenance: Modular design simplifies installation, replacement, and upgrades.

The Motorola MVME55006E-0163R is a trusted solution for applications requiring high performance, reliability, and adaptability in embedded computing environments. Its robust design and versatile features make it ideal for a wide range of industrial and critical control systems.

For more information, please refer to the Motorola Embedded Computing Product Catalog or contact your local Motorola/NXP representative.
