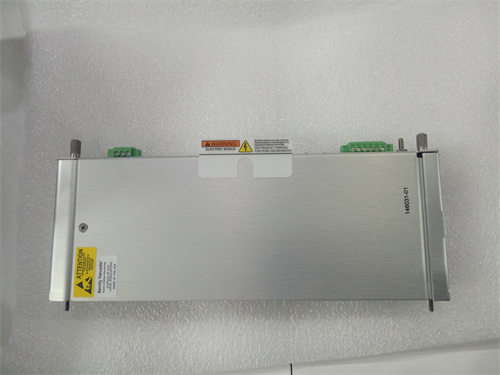

BENTLY 146031-01 Product Details

BENTLY 146031-01 is a 10Base-T/100Base-TX I/O module component of the 3500/22M system.It is designed to connect to the 3500 monitoring system and related software(such as System 1 status monitoring and diagnostic software,3500 system configuration software)to achieve data transmission and processing through the transient data interface(TDI).

Functional Features

High-performance processing capability

The module has powerful processing capabilities and can quickly and accurately process various real-time data and control algorithms to meet the needs of industrial automation and control systems.

Multi-channel input and output

Equipped with multiple input channels,it can simultaneously collect transient data from different locations or devices,improving the efficiency and accuracy of data collection.

High sampling rate

With a high sampling rate,it can capture and record short-term transient events and provide key data for subsequent analysis.

Data storage and transmission

The module has a data storage function that can record transient data and transmit it to the monitoring system or data analysis tool for processing.

Programmability and flexibility

Parameters can be set and customized according to specific control logic and application requirements,and it has anti-interference ability and fault recovery function to ensure the reliability and stability of the system.

Real-time monitoring and alarm

It can monitor the vibration speed,amplitude and frequency of the equipment in real time,and help users to detect equipment failures or abnormalities in time through data recording and analysis.When a serious fault or abnormality is detected,the module can notify the user in time through an alarm prompt.

Industrial reliability

Adopting high-quality electronic components and manufacturing processes,it can work stably in harsh industrial environments and has high reliability and stability.

Application fields

BENTLY 146031-01 is widely used in various industrial fields that require high-performance and high-reliability monitoring systems,such as

Industrial machinery equipment monitoring

It is used to monitor important industrial equipment such as pumps,compressors,generators,turbines,etc.,and detect equipment failures or abnormalities early by real-time monitoring of vibration signals.

Power Industry

In power plants,monitor the vibration of key equipment to ensure that generators,turbines,etc.are running well.

Oil and Gas Industry

Monitor the vibration of oil well pumps,compressors and other key equipment to prevent equipment failure.

Transportation

In transportation tools such as ships,trains and airplanes,vibration monitoring of key components can improve the reliability of transportation systems.

Technical Specifications

Operating Temperature Range:-30 degrees Celsius to+65 degrees Celsius

Storage Temperature Range:-40 degrees Celsius to+85 degrees Celsius

Humidity:Up to 95%(non-condensing)
