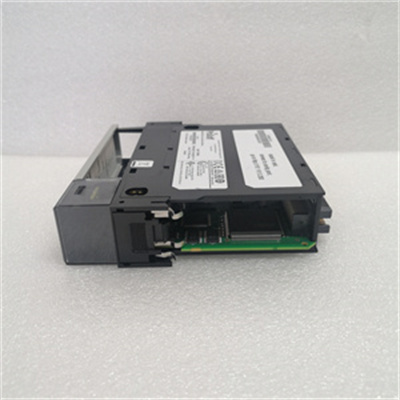

ProSoft MVI56E-MCM Product Introduction

ProSoft MVI56E-MCM is a Modbus communication module designed for Rockwell Automation ControlLogix platform,used to achieve seamless communication between ControlLogix system and Modbus devices.The module supports Modbus RTU and ASCII protocols,can operate as a Modbus master or slave,and is widely used in industrial automation and process control systems.

Main functions and features

Modbus protocol support

Supports Modbus RTU and ASCII protocols,suitable for a variety of industrial communication scenarios.

Can operate as a Modbus master or slave,flexible to adapt to different network architectures.

Multiple communication interfaces

Provides RS232,RS485 and RS422 serial interfaces,supporting a variety of electrical standards.

Supports multi-port configuration,can connect multiple Modbus devices at the same time.

Strong compatibility

Seamlessly integrated with Rockwell Automation’s ControlLogix system.

Backward compatible with earlier MVI56 modules,can be directly replaced without changing existing programs.

Remote configuration and diagnosis

Provides RJ45 Ethernet interface to support remote configuration and diagnosis over the network.

Equipped with intuitive configuration software to simplify system integration and maintenance process.

High reliability

Industrial-grade design,suitable for harsh environments.

The operating temperature range is 0℃to 55℃,and the storage temperature range is-40℃to 85℃.

Provides LED status indicator for quick check of module operation status.

Flexible installation method

Supports rail installation or panel installation to meet different installation needs.

Technical specifications

Communication protocol:Modbus RTU/ASCII

Interface type:RS232,RS485,RS422

Ethernet interface:RJ45

Operating voltage:24V DC

Operating temperature:0℃to 55℃

Storage temperature:-40℃to 85℃

Humidity:5%to 95%(no condensation)

Dimensions:about 114mm×90mm×30mm

Weight:about 0.5kg

Application scenarios

Industrial automation

Used in factory automation systems to connect Modbus devices to achieve data acquisition and equipment control.

Process control

Applicable to industries such as petroleum,chemical,and water treatment to achieve remote monitoring and data transmission of equipment.

Power industry

Used in monitoring systems for substations and power generation equipment to achieve real-time monitoring of equipment status.

Remote monitoring

Supports remote access to Modbus devices through the network to achieve remote operation and maintenance.
