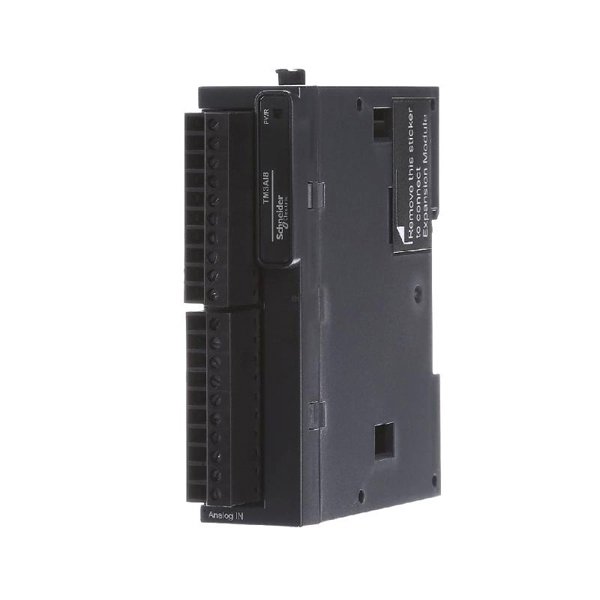

Schneider TM3AI8 Analog Input Module Detailed Technical Overview

Schneider TM3AI8 Analog Input Module is an I/O module launched by Schneider Electric,Used for collecting and converting analog signals, and transmitting them to the control system for further processing.

It is a component of the Modicon M221 series automation control system,Widely used in automated production lines, industrial equipment, and process control systems.

Main features

High precision input: supports 8 analog input channels,

Capable of accurately collecting analog signals from sensors, such as temperature, pressure, flow rate, etc.

Multiple input signal support: can receive standard 4-20 mA and 0-10 V input signals,

Flexibly adapt to different sensor and device requirements.

High resolution: It has a high-resolution data acquisition function to ensure the accuracy and stability of the collected data.

Modular design: Compatible with other modules in the Modicon M221 series, facilitating expansion and system integration.

Simple configuration and maintenance: Using Schneider Electric’s EcoStruxure Machine Expert software,

It can easily configure and debug modules, simplifying the system installation and maintenance process.

Application areas

Industrial automation: widely used in production lines and automation equipment to collect sensor signals and monitor the operating status of equipment.

Process control: Used in industries such as chemical, food, and pharmaceutical to accurately measure and control parameters such as temperature, pressure, and flow rate.

Mechanical equipment monitoring: used to monitor the operating status of various types of mechanical equipment, ensuring that the equipment is within normal working range.

Schneider TM3AI8 analog input module provides high precision

The high reliability analog input acquisition function is an important data interface module in modern industrial automation systems.
