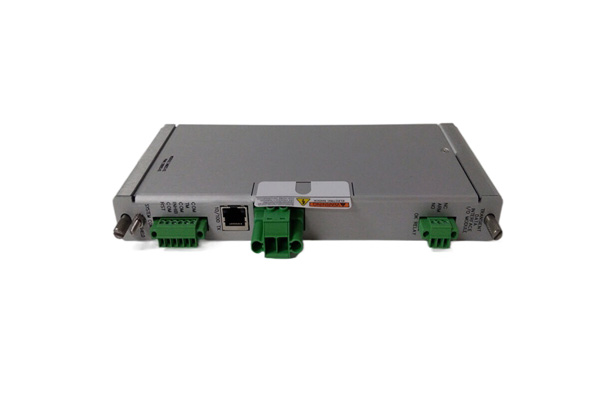

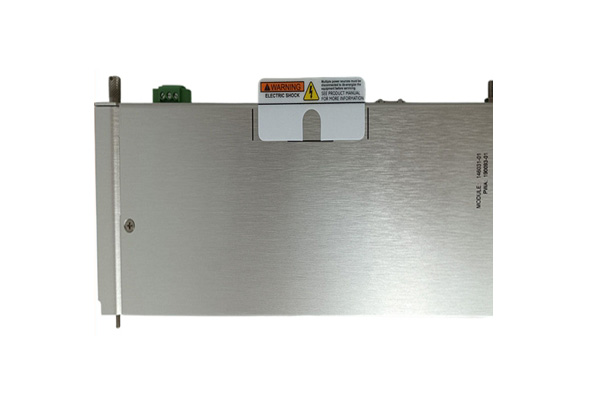

BENTLY 146031-01 3500/22M is a transient data interface module (TDI) developed by Bently Nevada, used to interface with the 3500 monitoring system and its compatible software, such as System 1 status monitoring and diagnostic software and 3500 system configuration software. The following is detailed information about BENTLY 146031-01 3500/22M:

Product features

Compatibility:

Compatible with the 3500 monitoring system, including System 1 status monitoring and diagnostic software, as well as 3500 system configuration software.

Data collection and transmission:

TDI combines the 3500/20 rack interface module (RIM function) with communication processors such as TDXnet to collect data.

Capable of continuously collecting steady-state and transient dynamic (waveform) data, and transmitting this data to host software through Ethernet links.

Interface and Connection:

146031-01 3500/22M provides dual or four channel 10Base-T/100Base-TX/1000Base-T interfaces.

Transparent 64 bit, up to 133 MHz PCI-x/PCI to PC ridge and one PCIe switch, providing access to Intel 210IT Gigabit Ethernet controllers.

Each Ethernet interface supports 10, 100, and 1000 mbit transfer rates, and is equipped with 16 mbit serial flash memory to support PXE and iSCSIboot.
