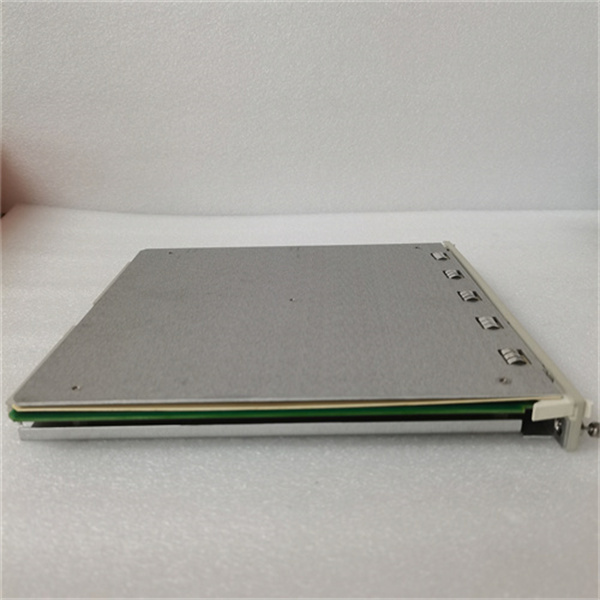

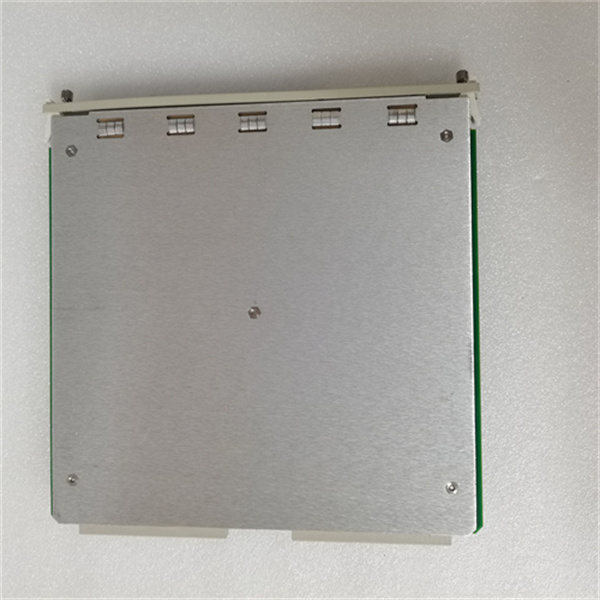

BENTLY 3500/33 149986-01 Product Overview

The Bently Nevada 3500/33 149986-01 is a high-performance 16-channel relay output module that belongs to the Bently Nevada 3500 series mechanical condition monitoring system.This module is mainly used for monitoring and protection of industrial equipment,and can realize a variety of complex control logic and alarm functions.

Main Features

16 independent relay outputs

Each channel can be independently programmed to support a variety of control logics,such as AND and OR logic.

Each relay channel contains alarm drive logic to achieve complex alarm and control functions.

High flexibility and configurability

The input signal of each relay can be configured according to specific needs,including alarm status,measured variables,etc.

Supports multiple input signal types,such as individual measured variables from any monitoring channel.

Multiple application scenarios

Applicable to the monitoring and protection of equipment such as generator sets,compressors,fans,etc.

Can be used to achieve multiple functions such as load balancing and parallel operation.

Communication and Integration

Supports seamless integration with Bently Nevada 3500 series systems.

Requires 3500 rack configuration version 3.3 or higher.

Environmental adaptability

Industrial-grade design,suitable for harsh environments,ensuring long-term stable operation.

High reliability

Adopting high-quality materials and advanced manufacturing processes to ensure high reliability and long life of the module.

Technical specifications

Dimensions:241 mm×24.4 mm×242 mm.

Weight:about 0.8 kg.

Input voltage:24V DC.

Number of channels:16 relay output channels.

Contact configuration:single-pole double-throw(SPDT).

Output rating:2 A 240 VAC.

Operating temperature range:-40℃to 85℃.

Application areas

Bently Nevada 3500/33 149986-01 is widely used in the following fields

Industrial equipment condition monitoring system.

Turbine generator.

Large motors.

Compressors.

Pumps.
