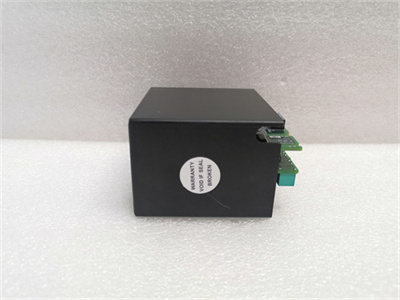

GE IC670CHS001E Product Introduction

GE IC670CHS001E is a field control I/O terminal block developed by Emerson Automation(formerly GE Fanuc),specifically designed for industrial automation systems,supporting discrete/analog signal transmission and modular expansion.Its core functions include signal distribution,electrical isolation,and backplane communication,suitable for high reliability scenarios such as power,automotive manufacturing,and chemical engineering.

Core functions and features

Modular connection

I/O Expansion:Supports up to 2 field control modules(discrete/analog),compatible with GE Fanuc series I/O devices.

Backplane communication:Built in connectors enable data transmission between adjacent terminal blocks,supporting hot swapping(requires firmware 2.1+BIU module).

Electrical isolation and safety

Isolation design:Electrical isolation of input/output circuits(voltage range 85-264V AC/DC),in compliance with industrial safety standards.

Overload protection:Supports automatic power-off for overcurrent and overvoltage to prevent equipment damage.

Installation and compatibility

Installation method:Horizontal DIN rail or panel installation,suitable for compact control cabinet layout.

Cable adaptation:Supports AWG#14(2.1mm²)to#22(0.35mm²)copper wires,with grounding terminals limited to#14 wires(≤4 inches).

Technical Parameter

Parameter description

37 terminals(including 2 power terminals A/B and 35 signal terminals)

The communication protocol supports Modbus and Profibus(requires BIU module expansion)

Working temperature-25℃to+70℃

Protection level IP65(dustproof and waterproof)

Install torque screws with a maximum torque of 8-10 inch pounds

Typical application scenarios

industrial automation control

Sensor signal acquisition(temperature,pressure,flow),actuator drive(motor,valve).

Power system integration

Substation equipment monitoring(circuit breaker status,current and voltage sampling).

automobile making

Assembly line PLC signal transmission,robot motion control.

Chemical and Metallurgical Engineering

Closed loop control of reactor temperature/pressure,signal isolation protection under high temperature environment.

Technical advantages

High reliability:Mechanical fixed module design(anti vibration loosening),failure rate<0.1%(based on industrial test data).

Intelligent maintenance:LED status indicator provides real-time feedback on power,communication,and overload status.

Flexible Expansion:Supports pre installed cable IC670CBL001,compatible with auxiliary terminal blocks(additional grounding/signal common connection).
