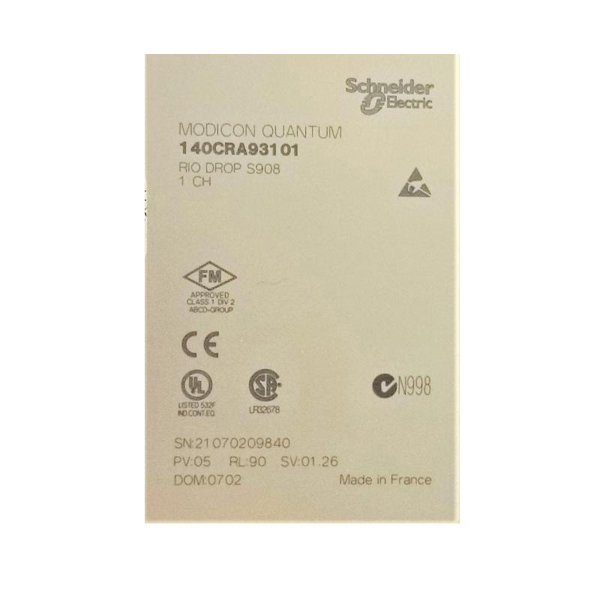

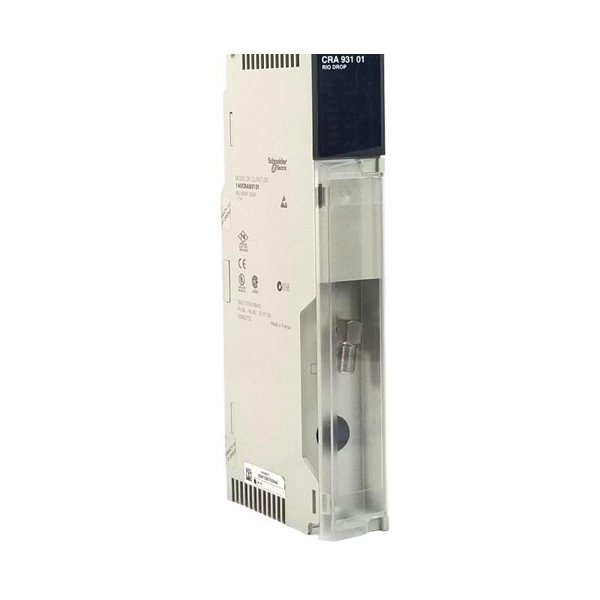

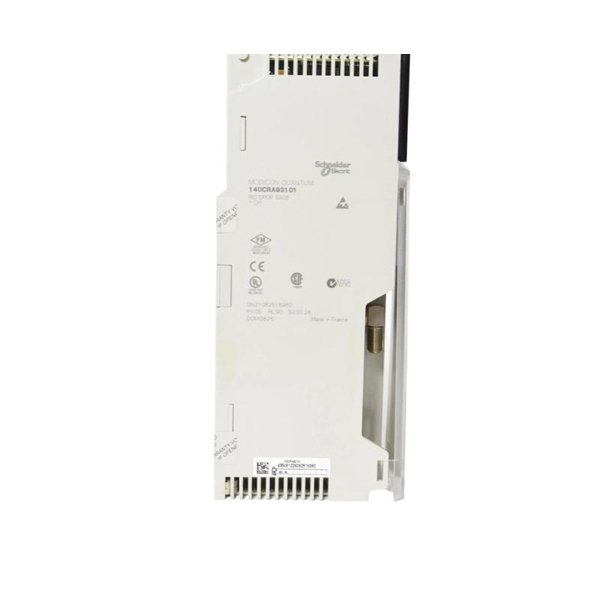

The Schneider 140CRA93101C RIO Slave Adapter Module is a key component of Schneider Electric’s Quantum automation system. This adapter module is designed to extend the capabilities of the Remote I/O (RIO) network, enabling communication between I/O devices and the central control system. The module allows the integration of additional I/O devices into the system, ensuring a seamless and efficient data exchange.

This RIO Slave Adapter Module supports the communication of digital and analog I/O signals with the control system, and is ideal for use in a wide range of automation applications, including process control, manufacturing systems, and building automation. It offers high performance, flexibility, and reliable data transfer, even under demanding industrial conditions.

The 140CRA93101C is particularly useful when expanding the number of connected devices without the need for complex cabling or configurations. Its user-friendly setup and robust design make it a dependable choice for a variety of industrial environments.

Product Specifications

Applications

The Schneider 140CRA93101C RIO Slave Adapter Module is primarily used in automation and control systems. Its ability to integrate I/O devices into Schneider Electric’s Quantum system makes it versatile across several industries. The following are key applications for this module:

1. Industrial Automation: The 140CRA93101C is widely used in automated manufacturing systems to connect I/O devices like sensors, actuators, and other control elements to the main system, ensuring real-time data transfer and control.

2. Building Automation Systems: In building management, this module helps integrate various systems like lighting, HVAC, and security, contributing to energy efficiency and control over various subsystems.

3. Process Control Systems: It is used in process control applications where real-time data exchange from devices like temperature sensors, pressure gauges, and flow meters is essential for smooth operations.

4. Energy Management: The module supports the integration of energy meters and load controllers, helping to monitor and control energy consumption efficiently in industrial plants or commercial buildings.

5. Water Treatment Systems: It is used to connect monitoring and control devices within water treatment plants, ensuring proper flow, filtration, and chemical dosing.

6. Oil and Gas Industry: The RIO Slave Adapter Module is used to collect data from field devices in oil and gas operations, ensuring data integrity and optimizing control over remote operations.

7. Mining Industry: It supports real-time control and monitoring of equipment in mining operations, providing continuous feedback from critical machinery.

8. Machine Monitoring Systems: The module can be used in machinery monitoring systems to transmit data from vibration sensors, motors, and other critical equipment to the central control system.

Product Advantages

1. Seamless Integration: The 140CRA93101C module integrates seamlessly with Schneider Electric’s Quantum system, enabling easy expansion of the existing network without complex wiring.

2. High Flexibility: This adapter module supports both digital and analog I/O, making it suitable for a wide range of applications across industries.

3. Real-Time Communication: The 140CRA93101C facilitates real-time data transmission, ensuring timely and efficient processing of information.

4. Durability and Reliability: Built to withstand harsh industrial environments, the module operates effectively in temperature ranges from -20°C to +60°C, ensuring reliability in extreme conditions.

5. Compact Design: The DIN rail mountable design allows for easy installation in compact spaces, helping save space in control panels and equipment racks.

6. Low Power Consumption: Operating on a 24V DC power supply, the module is energy-efficient, contributing to reduced operational costs in the long run.

7. Modular Expansion: This module makes it easy to expand the I/O network without disrupting existing systems, providing an effective solution for growing automation systems.

8. Enhanced Communication Protocols: The Modbus and Ethernet/IP support allow for smooth communication with other industrial equipment and control systems, enhancing interoperability.

9. Cost-Effective: The module offers an affordable solution for adding more I/O devices to an automation system without high additional investment.

10. Ease of Use: With an intuitive setup and configuration, the module simplifies the integration process, reducing the time spent on installation and system maintenance.

FAQs

1. What is the packaging size of the Schneider 140CRA93101C?

   The packaging dimensions are 46 x 162 x 312 mm.

2. How much does the Schneider 140CRA93101C packaging weigh?

   The packaging weighs 0.511 kg.

3. What is the power supply requirement for the module?

   The 140CRA93101C operates on a 24V DC power supply.

4. What communication protocols are supported by the module?

   The module supports Modbus and Ethernet/IP protocols.

5. What is the operating temperature range of the module?

   The module operates in a temperature range of -20°C to +60°C.

6. Can the Schneider 140CRA93101C be mounted on a DIN rail?

   Yes, the module can be easily mounted on a DIN rail.

7. What types of I/O does the Schneider 140CRA93101C support?

   The module supports digital I/O and analog I/O devices.

8. Is the Schneider 140CRA93101C compatible with other Schneider Electric systems?

   Yes, it is specifically designed to integrate with Schneider Electric’s Quantum system.

9. Can the module be used for outdoor applications?

   The module is designed for industrial environments, and while it can be used outdoors, it should be protected from extreme weather and moisture.

10. How many devices can the 140CRA93101C module support?

    The module supports the integration of multiple I/O devices, expanding the system’s capacity and flexibility.
