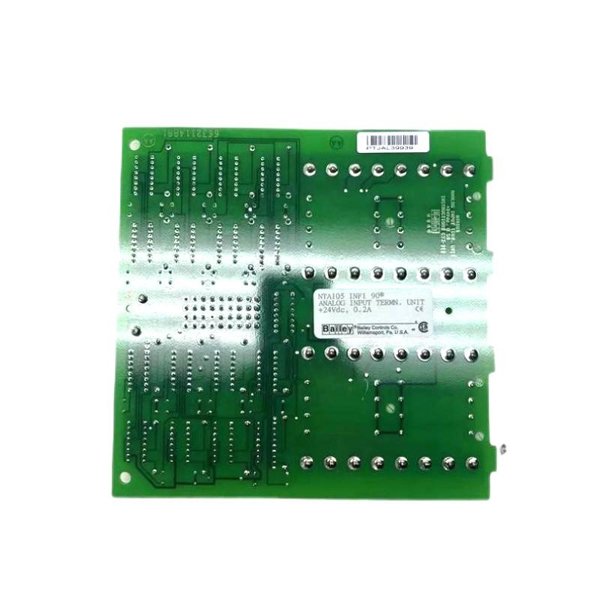

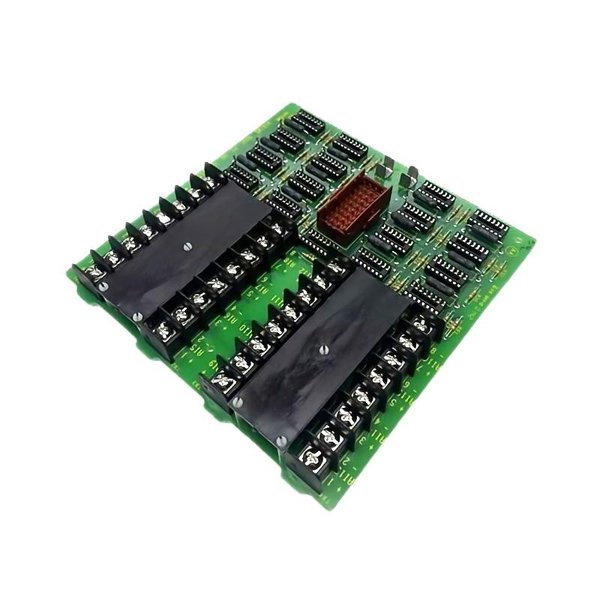

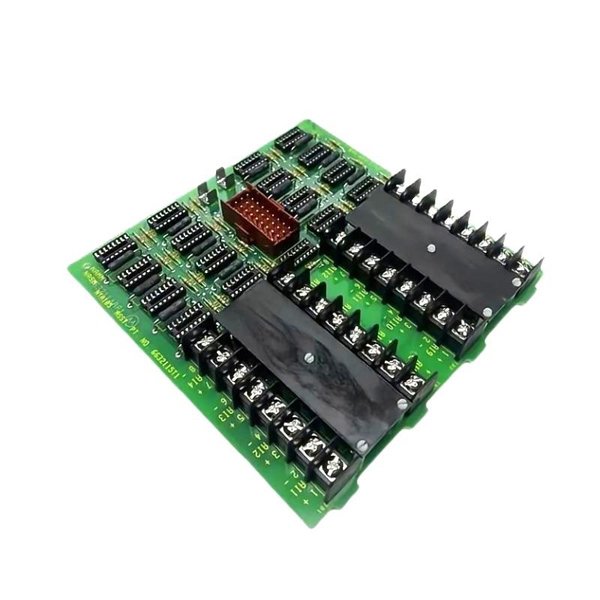

The ABB Bailey NTAI05 Analog Input Termination Unit is a high-performance device designed to interface industrial analog sensors with control systems. This unit plays a vital role in industrial automation by providing signal conditioning and termination for analog input signals. It is part of ABB’s advanced automation solutions, enabling precise monitoring and control of critical processes in industries such as power generation, chemical processing, manufacturing, and water treatment.

The NTAI05 is engineered for reliability and accuracy in handling various input signals from sensors. With the ability to support multiple types of analog input signals, this termination unit ensures that critical process data is accurately processed and communicated to control systems for further analysis and action. Its robust design and flexibility make it an essential component in automation systems where precision, durability, and high performance are key requirements.

Product Specifications

Applications

• Power Generation: The NTAI05 is employed in power plants to connect various types of sensors, such as temperature and pressure transmitters, to control systems, enabling real-time monitoring and control of equipment.

• Oil & Gas Industry: This unit interfaces with field devices such as flow meters, pressure sensors, and level transmitters in oil rigs, refineries, and pipelines, ensuring accurate data transmission to control systems for monitoring and decision-making.

• Chemical Manufacturing: The NTAI05 supports critical operations in chemical plants by interfacing with sensors that monitor variables like temperature, pressure, and chemical reactions, ensuring that processes run safely and efficiently.

• Water Treatment: In water treatment facilities, the NTAI05 ensures that sensors for monitoring water quality, flow rates, and chemical dosing provide accurate and reliable data for process control.

• Manufacturing Automation: The unit helps connect a wide range of sensors in industrial production lines, allowing operators to monitor machine performance, product quality, and operational efficiency.

• HVAC Systems: The NTAI05 is used in building automation systems for interfacing with environmental sensors, such as temperature, humidity, and air quality monitors, to optimize HVAC system performance.

Advantages

• High Channel Capacity: The NTAI05 supports up to 16 input channels, making it ideal for medium-to-large systems with numerous sensors requiring signal termination and conditioning.

• Versatile Signal Compatibility: It supports a wide range of input signals, including 4-20 mA, 0-10 V, and 0-5 V, allowing it to integrate seamlessly with various types of analog sensors used in industrial settings.

• Precise Signal Conditioning: The NTAI05 ensures that analog signals are accurately conditioned and terminated, reducing the potential for signal distortion and interference during transmission.

• Compact and Space-Saving Design: With its compact dimensions of 78.74 x 215.9 x 233.68 mm, the NTAI05 is designed to fit easily into control panels and DIN rail setups, saving space in industrial environments.

• Durable and Robust: The unit features an IP20 protection rating, offering protection against dust and physical damage, ensuring it performs reliably in harsh industrial conditions.

• Easy Integration and Maintenance: The NTAI05 is designed for easy installation with DIN rail mounting, enabling quick integration into control systems. Its screw terminal blocks facilitate secure and reliable connections.

• Wide Temperature Range: The unit operates efficiently across a temperature range of -20°C to +60°C, making it suitable for various industrial environments that may experience temperature fluctuations.

• Compliant with International Standards: The NTAI05 is UL and CE certified, meeting rigorous international safety standards, ensuring high-quality performance and safety for industrial applications.

Frequently Asked Questions (FAQ)

1. What is the main function of the NTAI05 Analog Input Termination Unit?

   The NTAI05 is designed to provide reliable signal conditioning and termination for analog input signals, ensuring accurate transmission to control systems.

2. How many input channels does the NTAI05 support?

   The NTAI05 supports up to 16 input channels, making it suitable for medium-to-large systems with multiple sensors.

3. What types of analog input signals does the NTAI05 support?

   The unit supports 4-20 mA, 0-10 V, and 0-5 V analog input signals, providing compatibility with a wide range of industrial sensors.

4. What is the weight of the NTAI05 unit?

   The NTAI05 weighs 0.358 kg, making it a relatively lightweight solution for its high-channel capacity.

5. What is the input impedance of the NTAI05?

   The input impedance for current inputs (4-20 mA) is 250 Ohms.

6. How is the NTAI05 mounted?

   The NTAI05 is designed for DIN rail mounting, allowing it to be easily integrated into control panels and systems.

7. What is the environmental protection rating of the NTAI05?

   The NTAI05 has an IP20 protection rating, which means it is protected against dust and physical impacts in indoor environments.

8. What is the operating temperature range for the NTAI05?

   The NTAI05 operates within a temperature range of -20°C to +60°C, making it suitable for a variety of industrial environments.

9. Is the NTAI05 compliant with international safety standards?

   Yes, the NTAI05 is UL and CE certified, ensuring it meets global safety and quality standards.

10. Can the NTAI05 be used in hazardous environments?

    No, the NTAI05 is designed for standard industrial applications and is not suitable for hazardous or explosive environments.
