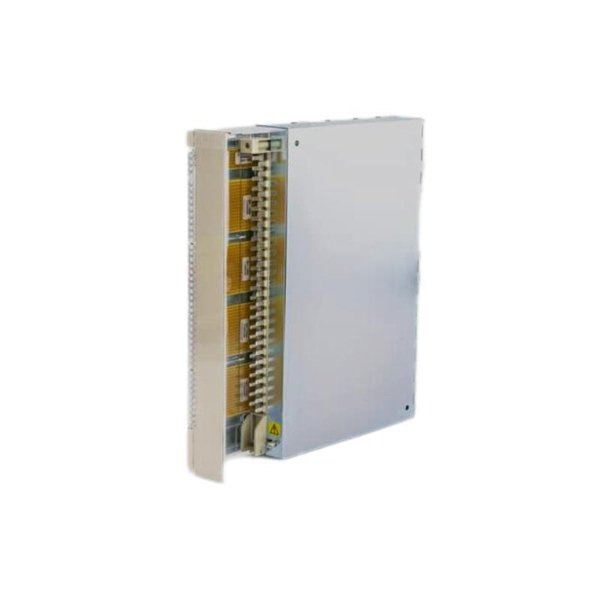

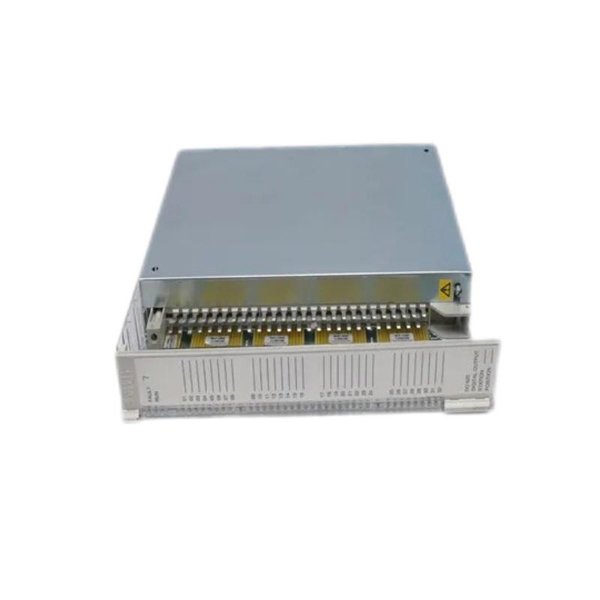

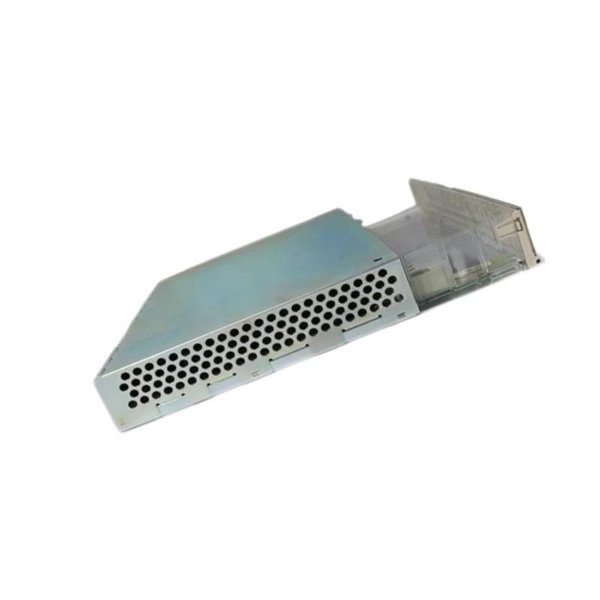

The ABB DO620 (part number 3BHT300009R1) is a high-quality digital output module designed for use in ABB’s S800 I/O system, widely applied in industrial automation and process control. This module provides multiple digital outputs with fast switching capability to drive actuators, relays, alarms, and other discrete devices.

With robust design and comprehensive diagnostics, the DO620 ensures high reliability and system availability in demanding industrial environments. The module supports various output configurations and integrates seamlessly into ABB’s modular automation architecture, providing scalability and flexibility for a wide range of applications.

Key Features

• 16 digital output channels per module

• Supports transistor outputs for switching loads

• Fast response time and high switching frequency

• Integrated diagnostic functions including short-circuit detection and load monitoring

• Galvanic isolation between output channels and system bus

• LED status indicators for each channel and module status

• Compact and rugged design suitable for harsh industrial conditions

• Compatible with ABB S800 I/O systems and AC 800M controllers

Technical Specifications

Product Advantages

• High Channel Density: 16 digital outputs in one compact module save valuable panel space.

• Fast Switching: Capable of switching loads rapidly, ideal for dynamic control applications.

• Comprehensive Diagnostics: Detects faults like short circuits and open loads to prevent downtime.

• Reliable Isolation: Galvanic isolation protects control system and ensures signal integrity.

• Wide Operating Range: Operates reliably in harsh temperature and humidity conditions.

• Seamless System Integration: Fully compatible with ABB’s modular S800 I/O platform and AC 800M controllers.

Industry Applications

• Automation of discrete actuators in manufacturing lines

• Control of valves, motors, and relays in process plants

• Alarm and indication systems in power plants and utilities

• Building automation for lighting and HVAC control

• Packaging and material handling systems

• Oil and gas process control automation

• Water and wastewater treatment automation

Frequently Asked Questions (FAQ)

1. Q: How many digital outputs does the DO620 module provide?

   A: The module provides 16 transistor digital output channels.

2. Q: What is the maximum current per output channel?

   A: Each channel supports up to 0.5 A output current.

3. Q: What type of output does the module use?

   A: It uses transistor (PNP) type outputs.

4. Q: Does the module include diagnostics?

   A: Yes, it supports short-circuit, overload, and open load detection.

5. Q: What is the operating temperature range?

   A: The module operates between -25°C and +60°C.

6. Q: Is the module compatible with ABB AC 800M controllers?

   A: Yes, it integrates fully with ABB AC 800M and S800 I/O systems.

7. Q: How is the module powered?

   A: It is powered through the S800 I/O backplane.

8. Q: What are the physical dimensions of the DO620?

   A: Dimensions are 252 x 273 x 40 mm.

9. Q: How is the module mounted?

   A: It can be mounted on DIN rail or within an S800 I/O chassis rack.

10. Q: Can the module switch inductive loads?

    A: Yes, it supports resistive, inductive, and capacitive loads.
