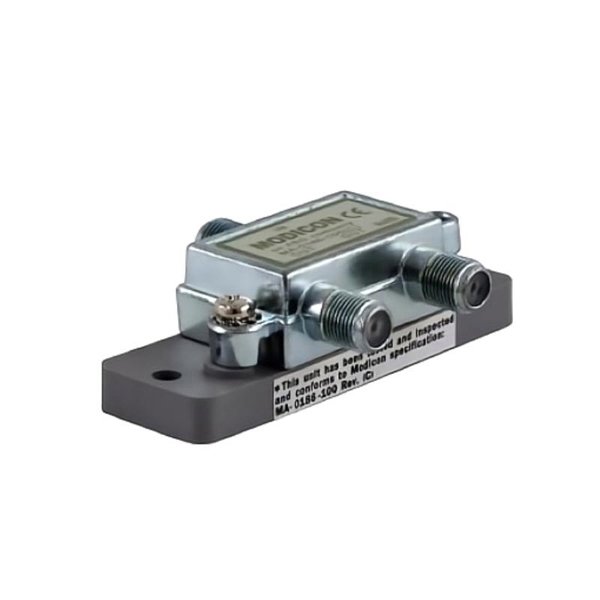

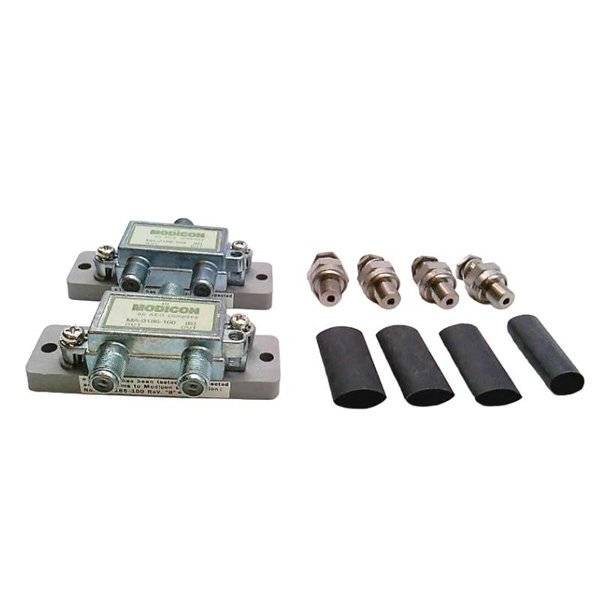

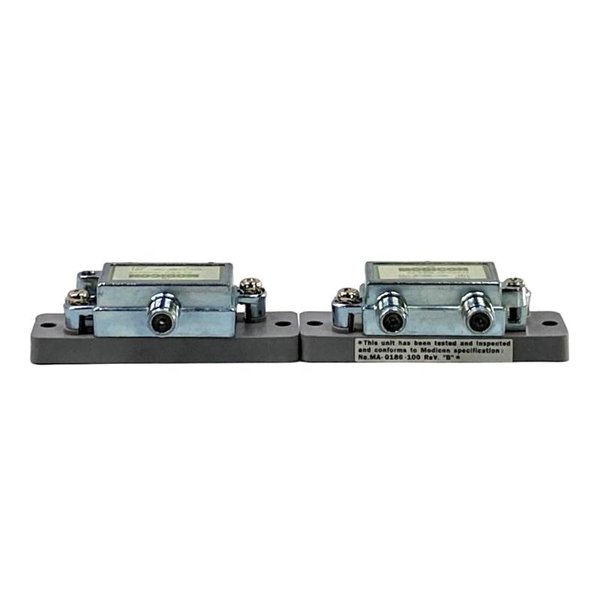

The Schneider 140CHS32000 Hot Standby Splitter Kit is a specialized accessory used to implement high-availability configurations in Modicon Quantum PLC systems. Specifically designed for coaxial cable-based redundancy, this splitter kit enables seamless communication and synchronization between an active Quantum CPU and its hot standby counterpart.

In a Hot Standby configuration, the system utilizes a pair of Quantum CPUs — one actively controlling the process, and the other maintaining an identical, synchronized state. Should a failure occur in the primary CPU, the backup CPU instantly takes over, ensuring zero interruption in the control process. The 140CHS32000 splitter kit facilitates this by allowing both CPUs to share the communication path over coaxial media — a robust and EMI-resistant connection option ideal for many industrial environments.

Designed with industrial durability and ease of integration in mind, the 140CHS32000 Hot Standby Splitter Kit is an essential part of any redundancy scheme where coaxial cabling is required or preferred. It supports reliable data transmission, quick switchover, and uninterrupted system operation — making it a trusted choice in sectors such as manufacturing, energy, transportation, and critical infrastructure.

Product Specifications

Applications

The 140CHS32000 Hot Standby Splitter Kit is purpose-built for use in industrial automation systems that require high availability and fault tolerance, especially when using coaxial cabling for redundancy. Typical applications include:

• Process Automation

  For chemical, petrochemical, food & beverage, and life sciences plants requiring 24/7 operation.

• Oil & Gas Production

  Onshore, offshore, refining, and pipeline SCADA systems with critical uptime needs.

• Energy & Power Generation

  Redundant PLC architecture in turbines, generators, and distribution substations.

• Water & Wastewater Treatment

  Ensures no disruption to critical pumping stations and filtration processes.

• Transportation Networks

  Mission-critical systems in airports, railway networks, and urban traffic control.

• Data Centers & Critical Infrastructure

  For seamless control and automation with full CPU redundancy.

Product Advantages

• Ensures Process Continuity

  Supports Hot Standby CPU redundancy with coaxial communication to maintain uninterrupted control processes.

• Passive Design

  No power supply required — contributes to reliability and eliminates additional wiring complexity.

• Industrial-grade Robustness

  Metal housing and durable construction for harsh environments.

• Compact and Space-efficient

  Designed for DIN-rail or panel mounting with a small footprint.

• Low Signal Loss

  High-quality signal transmission with minimal insertion loss and excellent return loss.

• Flexible Coax Compatibility

  Compatible with standard 75-ohm coaxial cables (e.g., RG-59, RG-6).

• Fast Switchover

  Facilitates redundancy systems with switchover times typically under 50 ms.

• EMI-resilient Communication

  Coaxial cabling provides superior resistance to electromagnetic interference — ideal for heavy industrial environments.

• Certified and Proven

  CE, UL, CSA certified — meets international standards for reliability and performance.

• Low Maintenance

  Passive, highly reliable design with long MTBF (> 500,000 hours) reduces service and maintenance costs.

Frequently Asked Questions (FAQ)

1. What is the purpose of the 140CHS32000 Splitter Kit?

   It enables coaxial cable-based communication between active and standby Quantum CPUs in Hot Standby configurations.

2. Does the splitter require external power?

   No, it is a passive device and does not consume power.

3. What type of coaxial cables are supported?

   Standard 75-ohm coaxial cables such as RG-59/U, RG-6/U, or equivalent.

4. What is the typical switchover time?

   Less than 50 milliseconds under normal operating conditions.

5. Is the kit compatible with all Quantum CPUs?

   It works with Quantum CPUs that support Hot Standby redundancy.

6. Can it be used in outdoor environments?

   It is designed for indoor industrial applications; for outdoor use, it must be housed in a suitable enclosure.

7. What is the insertion loss?

   Less than 1 dB, ensuring high-quality signal transmission.

8. How is it mounted?

   The splitter kit can be mounted on a DIN rail or directly onto a panel.

9. What temperature range does it support?

   Operating from 0 °C to +60 °C; storage from -25 °C to +70 °C.

10. What is its expected service life?

    With an MTBF exceeding 500,000 hours, it offers many years of reliable operation.
