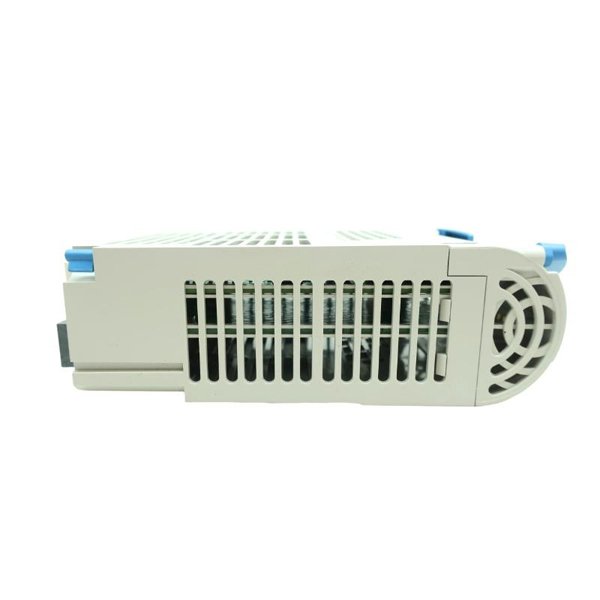

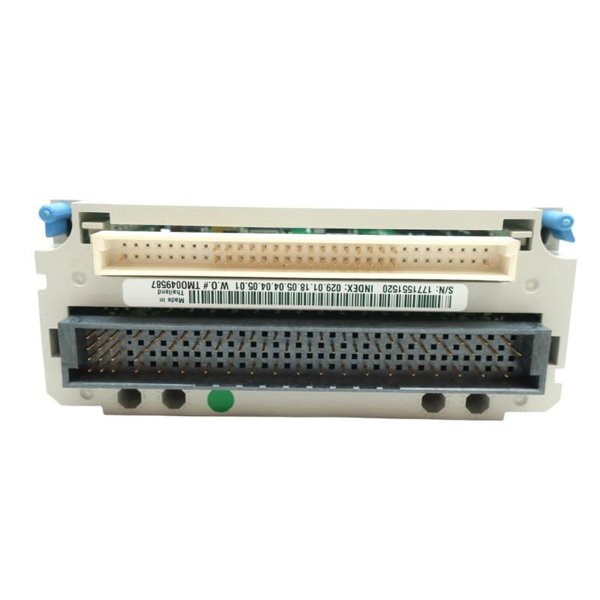

The Ovation 5X00301G01 Analog Output Module is a high-precision signal transmission component designed for Emerson’s Ovation™ Distributed Control System (DCS). Its primary function is to convert digital control signals from the DCS into analog voltage or current outputs for controlling field devices such as control valves, variable frequency drives (VFDs), actuators, and other analog-driven equipment.

Built for high-accuracy applications, this module ensures smooth, continuous signal modulation across a wide range of industrial operations. With multiple isolated output channels, robust diagnostic capabilities, and seamless DCS integration, the 5X00301G01 is ideal for mission-critical environments that demand both precision and reliability.

The module’s performance, durability, and compatibility with Ovation’s modular system make it a core component in analog process control systems across the power, water, and process industries.

Product Specifications

Product Applications

The 5X00301G01 Analog Output Module is used in industrial systems requiring precise analog control. It is especially valuable where gradual control actions are preferred over simple on/off switching. Common applications include:

• Power Generation Plants: Regulating turbine governors, boiler feedwater valves, combustion dampers, and pressure controllers.

• Water and Wastewater Facilities: Modulating valve positions, pump speed via VFDs, and dosing chemical feeds.

• Chemical and Petrochemical Processing: Controlling reaction flows, tank levels, and temperature loops with proportional signals.

• Oil & Gas Systems: Adjusting actuator positions, gas flow, and injection rates.

• Food & Beverage Automation: Managing mixing speed, fluid level, and temperature setpoints with smooth analog modulation.

• HVAC and Building Automation: Adjusting dampers, chilled water valves, or fan speed for precise climate control.

Product Advantages

• High Accuracy and Resolution: Ensures precise control of field equipment requiring proportional signals.

• Robust Isolation: Prevents cross-talk, signal degradation, and ground loops in noisy industrial environments.

• Multi-Signal Capability: Supports both voltage and current outputs, configurable via Ovation software.

• Integrated Diagnostics: Continuously monitors output channels for open circuits, faults, and overcurrent.

• Seamless DCS Integration: Fully compatible with Ovation’s architecture, enabling fast commissioning and system expansion.

• Flexible Configuration: Channels can be independently programmed for signal range, calibration, and scaling.

• Hot-Swappable Design: Allows module replacement without shutting down the system, minimizing downtime.

• Compact and Modular Form: Saves panel space while maintaining high output density.

• Wide Environmental Tolerance: Operates reliably in harsh industrial and utility environments.

• Field-Proven Reliability: Trusted across industries for critical operations over long lifecycles.

Frequently Asked Questions (FAQ)

1. What type of signals does the 5X00301G01 output?

It outputs either 4–20 mA current signals or 0–10 VDC voltage signals, which can be selected via configuration.

2. How many output channels are available on this module?

The module features 8 isolated analog output channels, each of which can operate independently.

3. Is this module compatible with all Ovation systems?

Yes, it is fully compatible with Ovation DCS systems and can be used alongside other I/O modules in the same rack.

4. Can each channel be configured individually?

Yes. Each output channel can be assigned a unique signal range, scaling, and operational behavior using Ovation tools.

5. Does the module provide fault detection?

Yes. It includes diagnostic functions that detect output faults such as open-loop conditions and overcurrent.

6. Can I use this module in a redundant system?

While the module itself is not redundant, it supports operation within system-wide redundancy configurations.

7. What are the power requirements for this module?

It draws regulated power from the Ovation backplane; no external power supply is required for analog output circuits.

8. Is calibration required after installation?

Factory calibration is provided, but site-specific tuning and scaling can be performed during commissioning using Ovation software.

9. How can I verify channel activity or faults?

The module includes LED indicators for status and uses the Ovation diagnostics platform for real-time feedback and alerts.

10. How long is the expected service life of this module?

With proper maintenance, it typically operates for over 10 years in standard control system environments.
