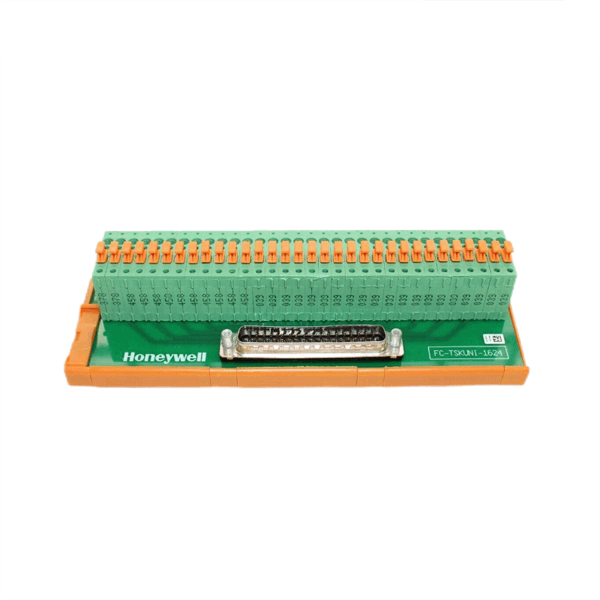

Honeywell FC-TSKUNI-1624 Field Terminal Module Assemblies

Constructed with industrial-grade materials and built for long-term durability, this unit provides consistent performance in harsh environmental conditions. Its form factor is optimized for high-density I/O installations, making it ideal for complex process control architectures in energy, petrochemical, manufacturing, and other industrial applications.

Product Advantages

• Universal Compatibility: Supports a wide range of I/O modules, reducing inventory complexity.

• Time-Saving Installation: Preconfigured and labeled terminal points simplify field wiring.

• High Reliability: Rugged construction minimizes failures in harsh industrial settings.

• Compact Form Factor: Enables space-saving in control cabinets and panels.

• Enhanced Safety: Clear labeling and standardized connections help reduce wiring errors.

• Long-Term Support: Fully integrated into Honeywell’s Experion PKS lifecycle support system.

Technical Specifications

Product Applications

• Oil & Gas Processing Facilities

• Power Generation Plants

• Chemical and Petrochemical Industries

• Water Treatment and Utilities

• Pharmaceutical and Biotech Manufacturing

• Pulp and Paper Mills

• Automated Assembly Lines

• Distributed Control Systems (DCS) and SCADA Environments

Installation Instructions

1. Ensure the DIN rail is properly mounted and grounded in accordance with Honeywell standards.

2. Snap the FC-TSKUNI-1624 base onto the DIN rail securely.

3. Connect the field wiring to the labeled terminal blocks, observing polarity and signal type.

4. Insert the corresponding I/O module directly onto the base and lock it in place.

5. Verify connections for accuracy before applying power to the system.

6. Power up and configure via Experion PKS tools for diagnostics and commissioning.

FAQs

Q1: Is the FC-TSKUNI-1624 compatible with both analog and digital modules?

A1: Yes, the base supports both analog and digital I/O modules, making it versatile for multiple signal types.

Q2: Can this base be hot-swapped during operation?

A2: No, the module base itself cannot be hot-swapped. Ensure the power is off before replacement.

Q3: What kind of terminals are used for wiring?

A3: Screw-clamp terminals are used for secure and vibration-resistant connections.

Q4: Is additional wiring labeling required for this module?

A4: The terminal base comes pre-labeled, simplifying the field wiring process.

Q5: Does this model support HART communication?

A5: HART capability depends on the I/O module used with the base, not the base itself.

Q6: What is the expected operational life of this unit?

A6: With proper environmental conditions, the expected life exceeds 5 years.

Q7: Can the FC-TSKUNI-1624 be mounted in hazardous areas?

A7: It is not rated for direct use in hazardous areas unless housed in certified enclosures.

Q8: Are firmware updates required for this base?

A8: No, this is a passive component with no firmware or software updates needed.

Q9: How many bases can be installed in a single node?

A9: This depends on the I/O capacity of the node controller and available power supply.

Q10: Is the FC-TSKUNI-1624 backward compatible with older Honeywell systems?

A10: It is primarily intended for use with C300 and newer Experion PKS systems. Compatibility with older platforms should be confirmed with Honeywell support.
