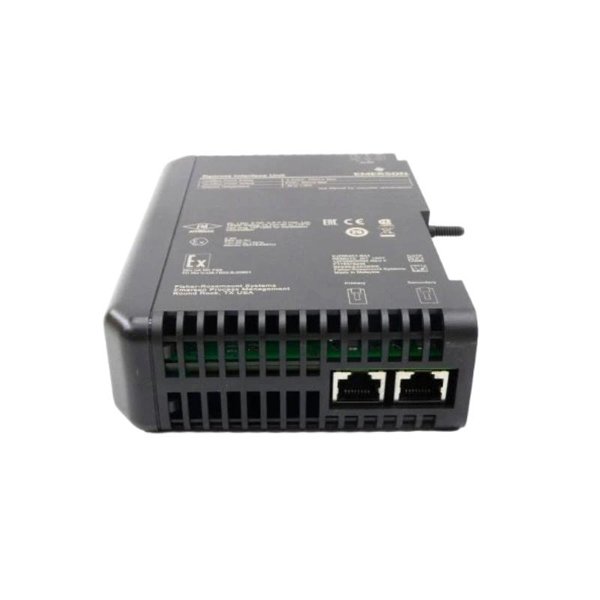

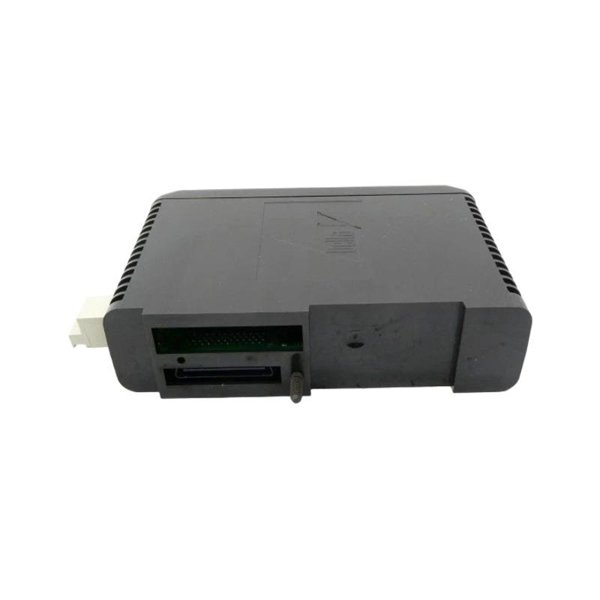

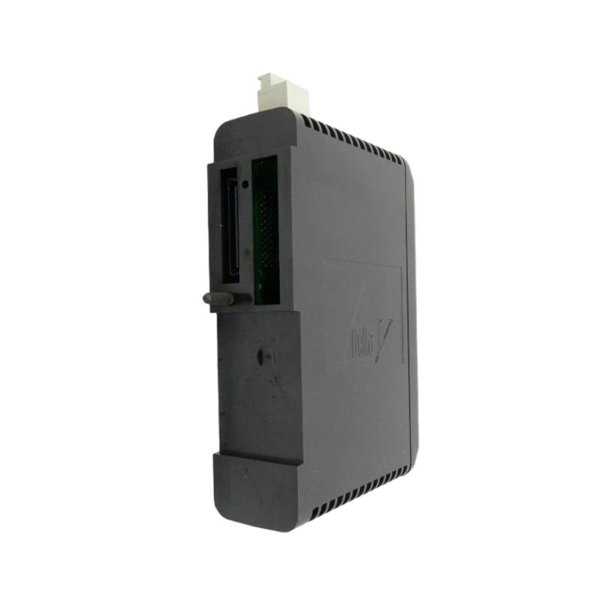

The Emerson KJ2004X1-BA1 VS3201 Remote Interface Unit (RIU) is a versatile, rugged communication and interface device designed for integration with Emerson’s DeltaV™ Distributed Control System (DCS) and DeltaV™ Safety Instrumented System (SIS) platforms. It serves as a vital link between remote field instruments, control networks, and safety systems, enabling efficient data transmission and command execution over extended distances.

This Remote Interface Unit supports multiple communication protocols and is engineered for use in harsh industrial environments, including oil and gas, power generation, and chemical processing plants. Its modular design, combined with robust diagnostics and redundancy capabilities, ensures continuous operation and easy maintenance, even in safety-critical applications.

Product Specifications

Product Applications

• Remote Field Device Integration

  Interfaces with instruments located at remote or hazardous sites, collecting process data for centralized control.

• Safety Instrumented Systems (SIS)

  Provides a secure and redundant communication channel for safety devices, maintaining SIL-rated safety loops.

• Process Automation Networks

  Enables communication between diverse fieldbus protocols and control systems, supporting multi-vendor environments.

• Oil and Gas Facilities

  Supports hazardous area communications, including intrinsically safe signal connections for process safety.

• Power Generation Plants

  Facilitates data acquisition and control for turbine and generator monitoring at distributed locations.

• Chemical and Petrochemical Plants

  Interfaces with complex instrumentation setups to ensure seamless integration and process reliability.

Product Advantages

• Multi-Protocol Support

  Accommodates multiple industrial communication standards, enabling versatile system integration.

• Redundancy and Reliability

  Supports redundant communication paths to ensure continuous operation in safety-critical systems.

• Robust Diagnostics

  Provides detailed real-time monitoring and fault detection, simplifying maintenance and troubleshooting.

• Rugged Design

  Built to withstand harsh environmental conditions including wide temperature ranges and humidity.

• Flexible Installation

  Suitable for rack or panel mounting, allowing easy integration in existing control infrastructure.

• Seamless DeltaV Integration

  Fully compatible with Emerson DeltaV DCS and SIS platforms, enhancing system scalability.

FAQ

1. What communication protocols does the KJ2004X1-BA1 support?

   It supports Modbus RTU, HART, FOUNDATION Fieldbus, and optionally Profibus protocols.

2. Can the RIU handle both analog and digital signals?

   Yes, it supports multiple signal types including analog, digital, and serial communications.

3. Is redundant communication supported by this unit?

   Yes, the unit supports redundant communication paths to enhance reliability.

4. How does the RIU integrate with the DeltaV system?

   It interfaces via Ethernet and serial ports and is configured through DeltaV software tools.

5. What diagnostic features are available?

   The unit offers built-in LEDs for status, as well as detailed diagnostics accessible remotely via DeltaV.

6. What is the operating temperature range of this device?

   The unit operates reliably between -40°C and +70°C.

7. Does the KJ2004X1-BA1 support hazardous area certifications?

   Yes, depending on configuration, it can be certified for ATEX hazardous locations.

8. Can this unit be panel mounted?

   Yes, it supports both rack and panel mounting options.

9. What power supply is required for operation?

   It requires a nominal 24V DC power supply.

10. Are firmware updates supported?

    Yes, firmware can be updated through the DeltaV engineering station.
