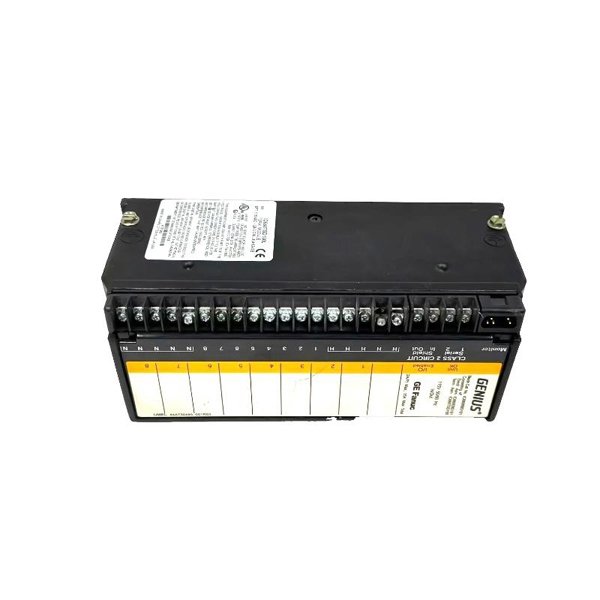

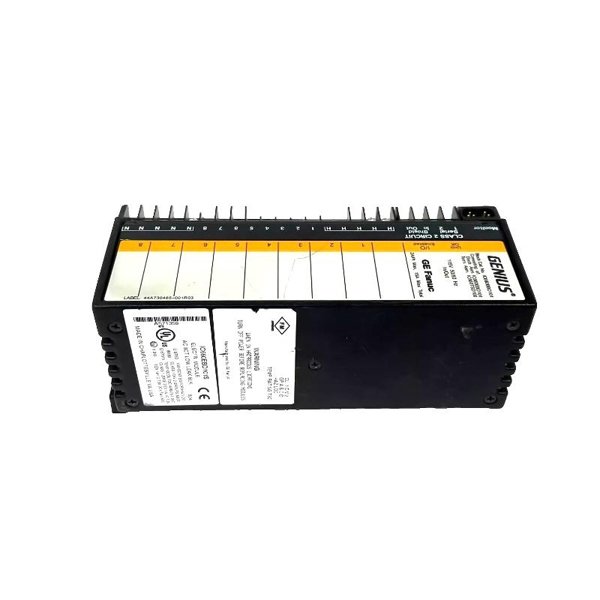

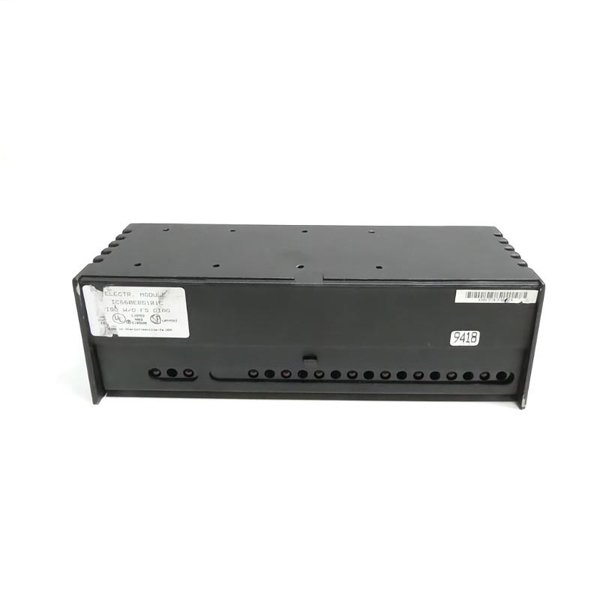

The GE IC660EBS101 I/O Block Electronic Assembly is a robust component in the GE Genius I/O system, purpose-built to support demanding industrial automation environments. This module is part of GE’s modular distributed I/O system, responsible for managing the internal intelligence and communication functions within the I/O block. The IC660EBS101 acts as the brain of the block, directing signal flow, handling diagnostics, and facilitating data communication across the Genius Bus network.

Engineered for durability, high performance, and compatibility, this electronic assembly is frequently deployed in high-reliability automation applications such as power generation, process manufacturing, and infrastructure systems.

Product Specifications

Product Applications

The IC660EBS101 module is ideal for integration into mission-critical and heavy-duty industrial systems where precise data acquisition and reliable communication are required. Typical applications include:

• Power Plants: Monitor and control generator and turbine subsystems.

• Water and Wastewater Treatment: Interfaces sensors and actuators in process flow automation.

• Automotive Manufacturing Lines: Ensures high-speed, deterministic communication with PLCs.

• Steel and Metal Plants: Works in rugged environments with high EMI resistance.

• Chemical and Petrochemical: Assures process reliability and hazard-safe operation.

• Industrial Packaging Systems: Synchronizes multiple devices across conveyor systems.

Product Advantages

• Decentralized Processing Power: Enables localized control and reduces controller burden.

• Network-Friendly Design: Seamless integration with Genius I/O networks and GE PLCs.

• Advanced Diagnostics: Built-in status indicators and fault memory enhance maintenance efficiency.

• Modular Replacement: Easy to swap without disturbing field wiring or other modules.

• High Environmental Resilience: Withstands harsh industrial temperatures and humidity levels.

• Flexible Mounting Options: Designed for both DIN rail and panel mounting.

• Strong Interoperability: Compatible with various GE discrete and analog I/O blocks.

• Field-Proven Reliability: Trusted for decades in global industrial environments.

• Reduced Wiring Costs: Supports distributed architecture, lowering installation effort.

• Long-Term Availability: Backed by GE’s long product life cycle support.

Frequently Asked Questions (FAQ)

1. What is the main function of the IC660EBS101 module?

   It manages control logic, diagnostics, and communication within a Genius I/O block.

2. Is this unit compatible with all Genius I/O blocks?

   It works with most standard GE Genius I/O terminal blocks, both discrete and analog.

3. Can I replace the electronic assembly without rewiring the block?

   Yes, the modular design allows you to replace the electronic assembly independently.

4. What’s the typical voltage requirement?

   The module operates on a nominal 24 VDC supply (range: 10.8–30 VDC).

5. What happens during a communication failure?

   The module will indicate communication loss via its LED indicators and internal diagnostics.

6. Is the unit programmable?

   While not directly programmable like a PLC, it supports address configuration for communication.

7. How is the module diagnosed during faults?

   Built-in LED status indicators provide real-time feedback for faults and power status.

8. Can this device be installed outdoors?

   It is recommended for installation inside a protected control cabinet or enclosure.

9. Does it support analog I/O blocks?

   Yes, it is compatible with both discrete and analog Genius I/O blocks.

10. Is firmware upgradeable in this module?

    No, the IC660EBS101 is a hardware-only unit without user-upgradable firmware.
