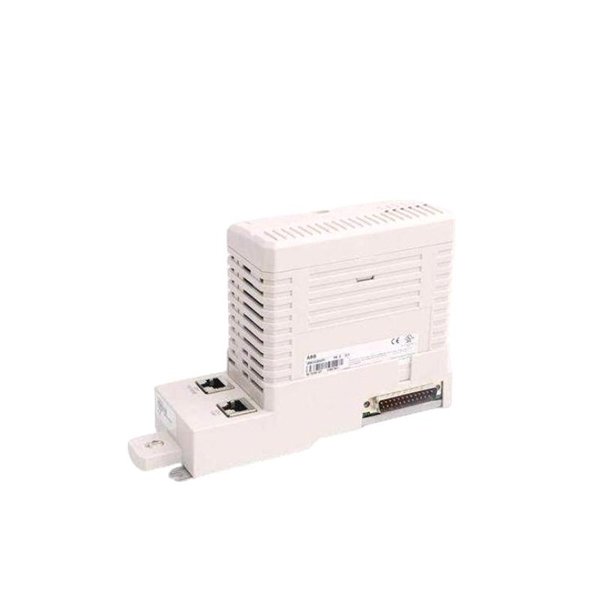

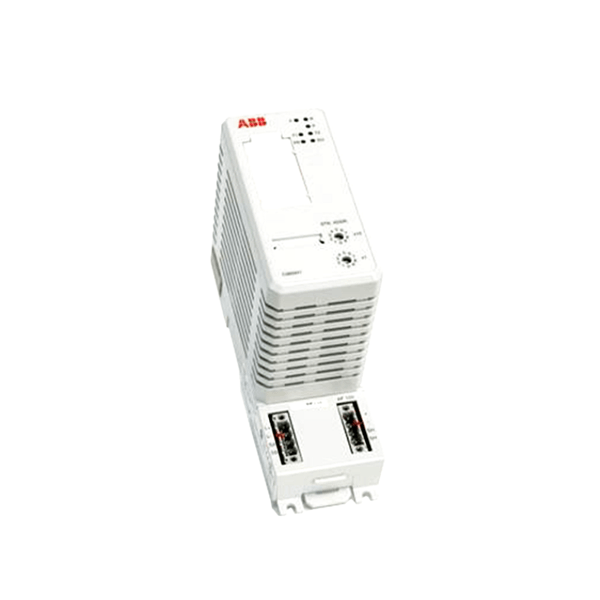

The ABB CI820 3BSE013200R1 redundant communication module is an advanced communication solution designed to ensure high reliability and performance for industrial automation systems. With built-in redundancy, this module guarantees continuous, secure, and fast communication across various devices in control systems. The CI820 module is ideal for use in industries where communication reliability is critical, such as power generation, oil and gas, manufacturing, and transportation.

Redundant communication in the CI820 ensures that if one communication path fails, the backup will automatically take over, thus reducing downtime and enhancing system stability. Its compact design and ease of integration make it a perfect fit for complex control systems, where efficiency and reliability are key to optimal performance.

Product Parameters

Below are the key technical parameters of the ABB CI820 redundant communication module:

Product Applications

The ABB CI820 3BSE013200R1 module is widely used in various industrial applications that require stable and redundant communication for automated control systems. Some common applications include:

• Industrial Automation Systems: Ensures uninterrupted communication between control units and field devices in large-scale automation systems.

• Oil and Gas Industry: Provides reliable communication between process control systems and hazardous field equipment.

• Power Generation Plants: Facilitates seamless communication between SCADA systems and power plant devices for efficient operation and monitoring.

• Manufacturing Industry: Used to connect machines, sensors, and control units in automated production lines, enhancing operational efficiency.

• Transportation Systems: Ensures real-time communication across complex transit control systems like those in airports, railways, and highways.

The CI820 module supports Ethernet communication, offering high data transfer rates for quick decision-making and continuous process control.

Product Advantages

1. High Redundancy: The CI820 module offers redundant communication paths, ensuring system reliability. If one path fails, the backup automatically takes over to minimize system downtime.

2. Flexible Communication: Supports Ethernet communication, which is widely used in industrial control systems. It allows high-speed data transfer and ensures compatibility with a broad range of devices.

3. Compact Design: With dimensions of 59 × 185 × 127.5 mm and a weight of only 0.512 kg, the CI820 module is easy to integrate into existing control systems without requiring excessive space.

4. Wide Temperature Range: The module can operate in environments with temperatures ranging from -5°C to 60°C, and can be stored between -25°C and 70°C, making it suitable for harsh industrial environments.

5. Ease of Installation: The CI820 module is designed for quick and easy installation, saving time and reducing complexity during system setup. Its plug-and-play design ensures smooth integration into existing communication networks.

6. Reliable Communication: Equipped with two Ethernet ports, the CI820 ensures continuous and reliable data communication, even in environments with potential interference or failures.

FAQs

1. What is the function of the ABB CI820 redundant communication module?

   The ABB CI820 module ensures reliable and continuous communication between control systems by supporting redundant Ethernet communication paths.

2. How does the redundancy feature work?

   If one communication path fails, the redundant path automatically takes over, ensuring no communication disruptions.

3. What is the weight of the CI820 module?

   The weight of the CI820 module is 0.512 kg.

4. What are the dimensions of the CI820 module?

   The module’s dimensions are 59 × 185 × 127.5 mm.

5. What is the operating temperature range of the CI820?

   The operating temperature range is from -5°C to 60°C.

6. Can the CI820 be used in hazardous environments?

   Yes, the CI820 module is certified with Ex and is suitable for use in hazardous environments such as those found in the oil and gas industry.

7. What is the power supply requirement for the CI820?

   The CI820 requires a 24 V DC power supply.

8. What certifications does the CI820 have?

   The CI820 is certified with CE, UL, and Ex.

9. Can I use the CI820 module in a power generation plant?

   Yes, the CI820 module is ideal for use in power generation plants to facilitate secure and stable communication between control systems and field devices.

10. How many Ethernet ports does the CI820 module have?

    The CI820 module is equipped with 2 Ethernet ports for redundant communication.
