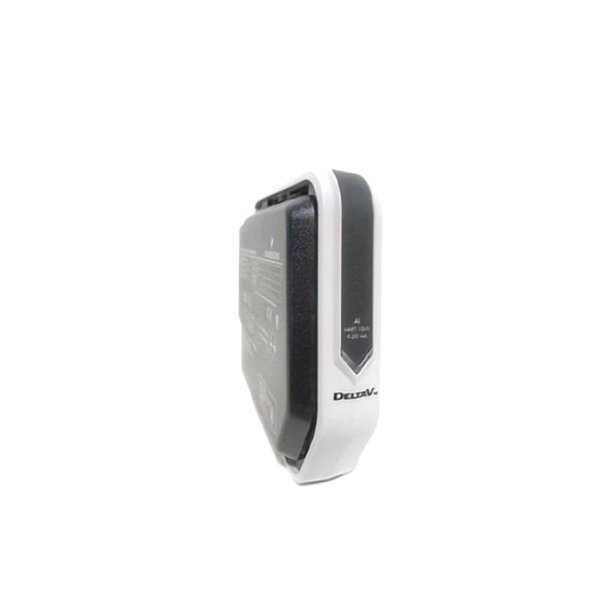

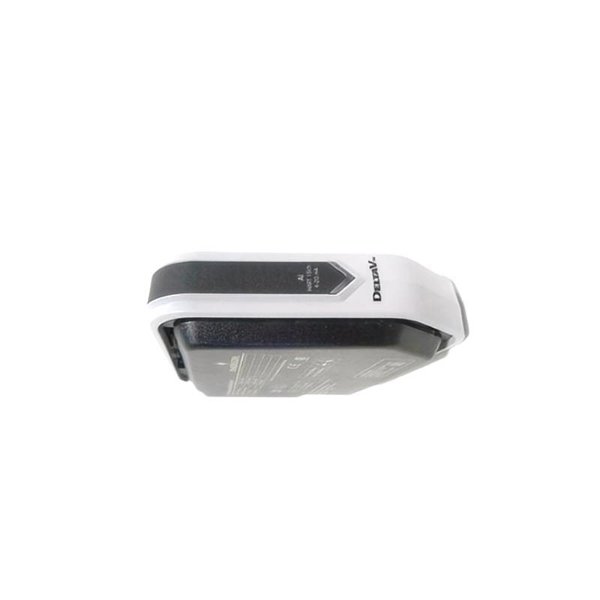

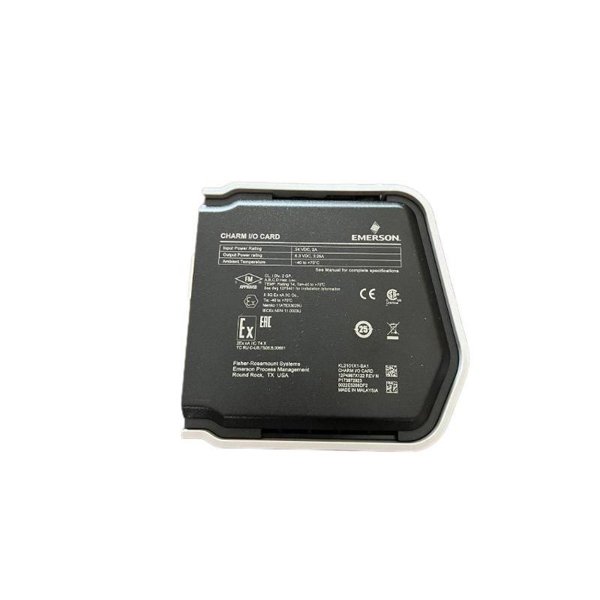

The Emerson KL2001X1-BD1 Ethernet I/O Card is designed to provide high-performance, reliable communication for industrial automation systems. As part of Emerson’s modular I/O family, this card offers seamless integration with safety and control platforms by supporting Ethernet connectivity. It serves as an interface between field I/O modules and the higher-level control system or network, enabling fast and secure data exchange via standard Ethernet protocols.

With a focus on durability and robust performance, the KL2001X1-BD1 supports harsh industrial environments, providing consistent connectivity for real-time data acquisition and control. This Ethernet I/O card is commonly used in conjunction with Emerson safety controllers and PLC systems, enhancing system scalability and flexibility.

Product Specifications

Product Applications

The KL2001X1-BD1 Ethernet I/O Card is widely used across multiple sectors where robust and efficient industrial communication is essential. Common applications include:

• Process Automation: Linking distributed I/O modules to central control systems in chemical, oil & gas, and refining plants.

• Manufacturing: Facilitating real-time data transfer between field devices and programmable logic controllers (PLCs).

• Energy Sector: Integrating sensors and actuators with SCADA systems for power generation and distribution.

• Water and Wastewater Treatment: Providing reliable communication for process monitoring and control.

• Automotive Industry: Supporting automated assembly lines with fast and stable networked I/O.

• Food & Beverage: Ensuring hygienic and efficient control with robust industrial communications.

Product Advantages

• High-Speed Communication: Supports 10/100 Mbps Ethernet for fast data transfer and minimal latency.

• Broad Protocol Support: Compatible with Ethernet/IP and Modbus TCP/IP, enabling flexible integration into existing networks.

• Robust Industrial Design: Constructed to withstand wide temperature ranges and harsh environmental conditions.

• Easy Installation: DIN rail mounting and standard RJ-45 connector simplify system setup and maintenance.

• LED Diagnostics: Visual indicators assist with quick status checks and troubleshooting.

• Modular Flexibility: Seamlessly interfaces with Emerson’s modular I/O system, allowing scalable expansion.

• Reliable Power Supply: Operates on a standard 24 V DC power source, common in industrial settings.

• Compliance and Safety: Meets key international certifications ensuring quality and operational safety.

• Scalable Networking: Supports multiple network topologies for optimized system design.

• Long Service Life: Designed with durable components for continuous industrial operations.

Frequently Asked Questions (FAQ)

1. What communication protocols does the KL2001X1-BD1 support?

   It supports Ethernet/IP and Modbus TCP/IP protocols.

2. Is the Ethernet port auto-negotiating for speed and duplex?

   Yes, it supports automatic negotiation of 10/100 Mbps and full/half duplex.

3. Can this card be used with Emerson safety controllers?

   Yes, it is designed to integrate fully with Emerson’s safety and control systems.

4. What is the operating temperature range of the device?

   The device operates reliably from -20°C to +60°C.

5. What type of mounting does the card support?

   The card mounts on a standard DIN rail for easy installation.

6. Does the card provide any diagnostic LEDs?

   Yes, it has LED indicators for power and communication status.

7. What power supply voltage is required?

   The card requires a 24 V DC power supply.

8. Can the card be used in hazardous environments?

   The KL2001X1-BD1 is suitable for industrial environments but verify specific hazardous area certifications before use.

9. What are the dimensions and weight of the card?

   Dimensions are 156 x 132 x 50 mm; weight is 0.3 kg.

10. How many Ethernet ports does this card provide?

    It includes a single RJ-45 Ethernet port.
