Manufacturer:GE
Product Number:IC660TBA105
Product Type:Terminal Assembly
Origin:USA
Dimensions:120 x 80 x 40 mm
Weight:0.59 kg
Views:33
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24

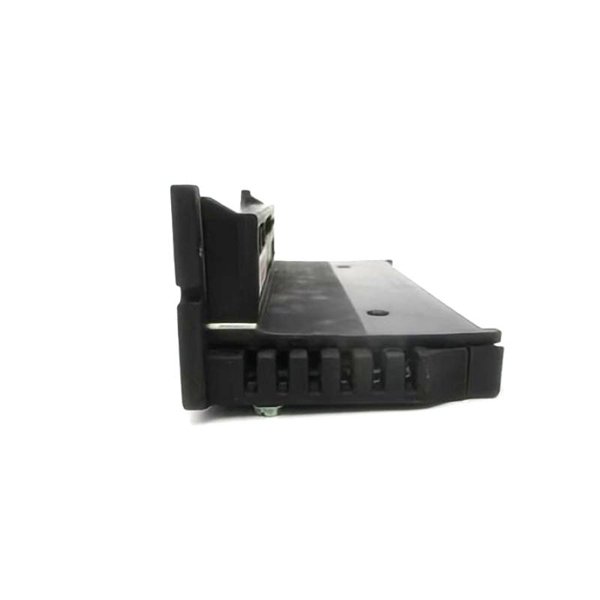

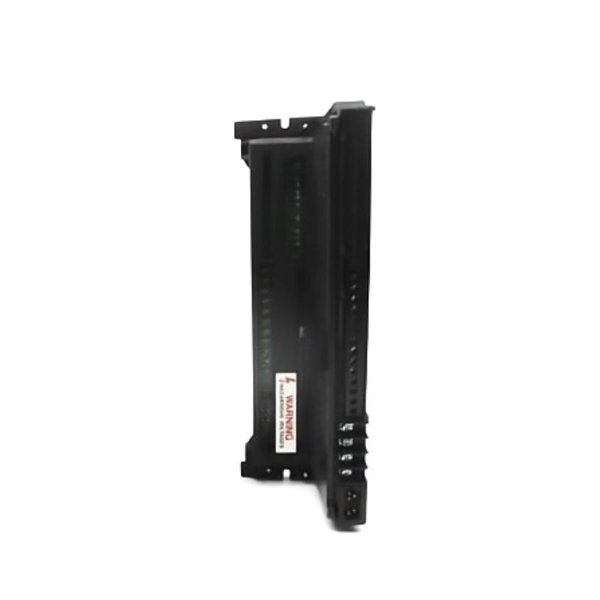

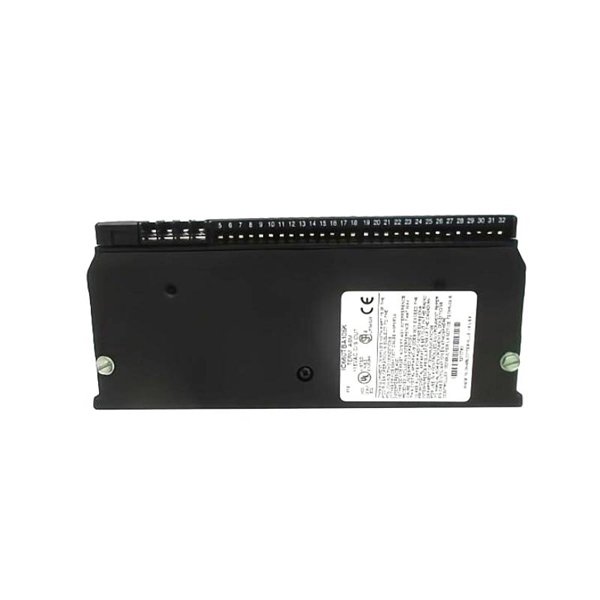

The GE IC660TBA105 Terminal Assembly is a versatile, high-reliability wiring interface module designed specifically for use with GE Genius I/O systems. It serves as a terminal block for discrete input/output connections in industrial automation environments. Built for robust field operation, it enables secure and organized wiring for industrial sensors, actuators, and devices to communicate with a central control unit.
This terminal assembly is widely recognized for its compatibility with Genius I/O discrete blocks and is engineered to simplify field wiring while maintaining signal integrity and minimizing installation errors. It provides the necessary electrical termination to ensure consistent system performance across various industrial applications.
| Specification | Details |
|---|---|
| Product Name | GE Terminal Assembly |
| Model Number | IC660TBA105 |
| Series | Genius I/O Series |
| Function | Terminal block for discrete I/O modules |
| Number of Terminals | 24 screw-clamp terminals |
| Terminal Type | Compression-type screw terminals |
| Supported Modules | Compatible with discrete input/output Genius blocks |
| Rated Voltage | Up to 250 VAC or 125 VDC (based on connected module) |
| Current Rating | Up to 2 A per terminal |
| Mounting Type | DIN rail or panel mounting |
| Enclosure Requirement | Must be installed inside a protective enclosure |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% non-condensing |
| Certifications | UL, CSA, CE |
| Dimensions (W × H × D) | 120 x 80 x 40 mm |
| Weight | 0.59 kg |
The IC660TBA105 is widely deployed in industrial sectors requiring precise and secure terminal connections for discrete devices. Key application areas include:
Manufacturing Automation
Used for interfacing discrete I/O devices such as switches, relays, and contactors to control systems.
Oil & Gas Operations
Connects critical field devices to Genius I/O blocks for localized control and data monitoring.
Power Generation Plants
Facilitates the integration of switchgear, alarms, and discrete signals in turbine and generator control systems.
Material Handling Systems
Provides reliable wiring for limit switches, sensors, and solenoids in conveyor and packaging systems.
Building Management Systems (BMS)
Interfaces with HVAC control points, access systems, and lighting controls.
Water Treatment Plants
Connects level switches, flow indicators, and valve actuators in distributed control setups.
Industrial-Grade Reliability
Engineered for harsh environments with stable performance across a wide temperature and humidity range.
Compatible with Genius I/O System
Seamlessly integrates with discrete Genius I/O blocks for enhanced flexibility and modularity.
Compact and Efficient
Designed with a small footprint to save space in control cabinets while maintaining 24 connection points.
Field-Proven Durability
Trusted by OEMs and end users globally for mission-critical control applications.
Easy Installation
Compression screw terminals make installation and maintenance straightforward and tool-friendly.
Flexible Mounting Options
Supports both DIN rail and panel mounting, catering to a variety of installation requirements.
Clear Terminal Labeling
Ensures straightforward identification of connections, reducing wiring mistakes and downtime.
High Voltage & Current Ratings
Capable of handling significant loads per terminal, ideal for high-demand I/O systems.
Certified for Global Use
UL, CSA, and CE certifications guarantee safety and compliance in regulated environments.
Minimal Downtime
Stable connections help reduce maintenance and system outages, maximizing uptime.
Q: What type of I/O is the IC660TBA105 compatible with?
A: It is designed for use with discrete input/output Genius I/O blocks.
Q: Can this module be used outdoors?
A: It must be installed inside a protective enclosure to be used in outdoor or harsh conditions.
Q: How many terminals does it support?
A: It has 24 screw-type terminals for field wiring.
Q: Is it suitable for analog applications?
A: No, it is specifically designed for discrete I/O connections.
Q: Does it support DIN rail mounting?
A: Yes, it can be mounted on DIN rails or panels.
Q: What is the recommended wire gauge?
A: Typically, it supports 14–22 AWG wires, depending on application.
Q: Can terminals be removed or replaced individually?
A: No, the terminal block is a fixed assembly and not modular at the terminal level.
Q: Is there any diagnostic function in this terminal assembly?
A: No, diagnostics are handled by the I/O block it connects to.
Q: What kind of maintenance is needed?
A: Periodic inspection and tightening of terminals is recommended.
Q: Is this product still actively supported by GE?
A: While it may be in mature lifecycle stages, it is still widely available and supported in many industrial systems.
