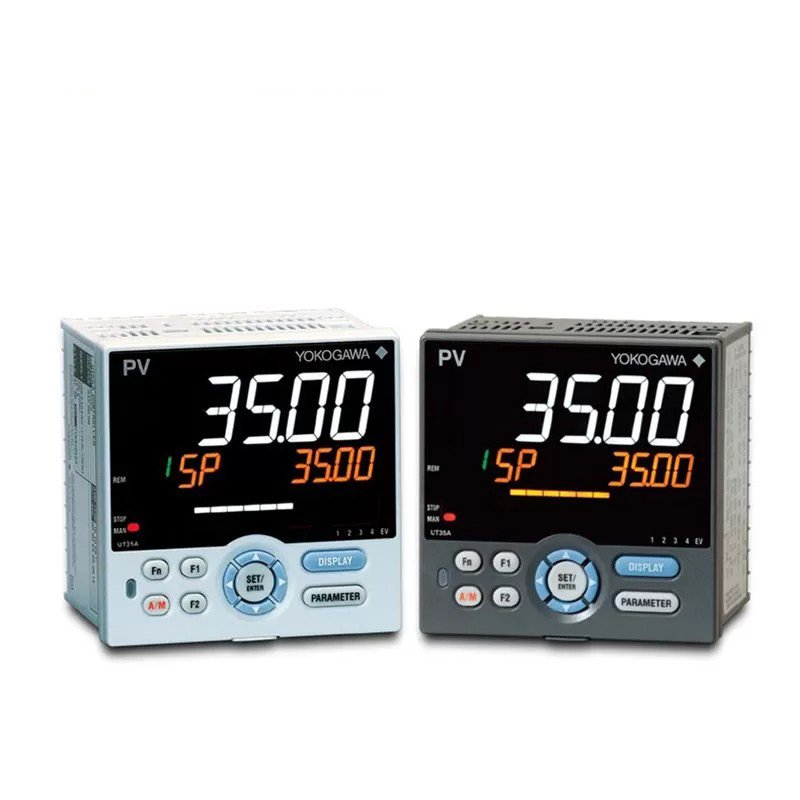

The YOKOGAWA UT35A-100-10-00 is a 1/4 DIN general-purpose digital indicating controller, designed for single-loop control. This versatile instrument offers numerous features:

Display and Input

• 14-segment Large Color LCD Display: Provides clear and easy-to-read output.
• Universal Input: Supports RTDs, thermocouples, and linear analog signals.

Output and Control

• Two Output Channels: Includes relay and analog outputs.
• Control Mode: Features PID control.

Power Supply and Consumption

• Power Supply: Operates on 100 to 240 VAC (+10%, -15%) or 24 VAC/DC (+10%, -15%).
• Power Consumption: Maximum of 18 VA.

Dimensions and Weight

• Dimensions: Measures 96 x 96 x 48 mm (3.78 x 3.78 x 1.89 in).
• Weight: Maximum of 0.5 kg (1.1 lb).

Applications

The UT35A-100-10-00 is ideal for:

• Temperature Control
• Pressure Control
• Flow Control
• Level Control

Additional Features

• Auto-Tuning: Automatically adjusts control parameters.
• Self-Diagnostics: Provides system health checks.
• Alarm Functions: Includes built-in alarm capabilities.
• Communication Options: Supports RS-485, Ethernet, PROFIBUS-DP, CC-Link, and DeviceNet.

Extra Functions

• Ladder Sequence Function: Facilitates advanced control sequences.
• Data Logging: Records operational data.
• PID Parameter Backup and Restore: Saves and retrieves control settings.
• Remote Setpoint Control: Allows remote adjustments.
