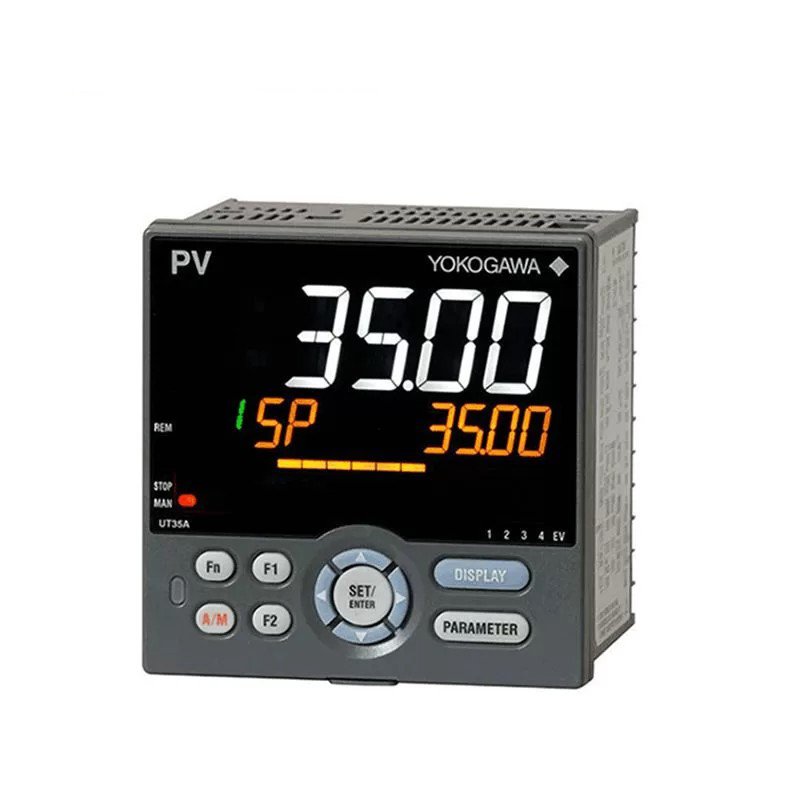

The YOKOGAWA UT35A-010-01-00 is a single-loop digital indicating controller for temperature control applications. It boasts a large, color LCD display and supports Ethernet communication.

Key Features

• 14-segment large color LCD display for clear readings.
• Five built-in control types:
  • PID control
  • ON/OFF control (1 point of hysteresis)
  • ON/OFF control (2 points of hysteresis)
  • Two-position, two-level control
• Supports open networks such as Ethernet communication.
• DIN rail mounting for easy installation.

Technical Specifications

• Input Types:
  • Thermocouple: J, K, T, E, C, R, S, B, N
  • RTD: Pt100, JPt100, Ni120, Cu50
  • Linear: 4-20mA, 0-10V
• Output Types:
  • Relay: 2A contact output
  • Analog: 4-20mA
• Power Supply: 100-240VAC, 50/60Hz
• Accuracy: ±0.1% of full scale
• Operating Temperature: -10 to 55°C (14 to 131°F)
• Storage Temperature: -20 to 65°C (-4 to 149°F)
• Humidity: 0 to 90% RH (non-condensing)
• Protection: IP66

Applications

• Heating and cooling systems
• Ovens and furnaces
• Plastic molding machines
• Food and beverage processing
• Pharmaceutical production
