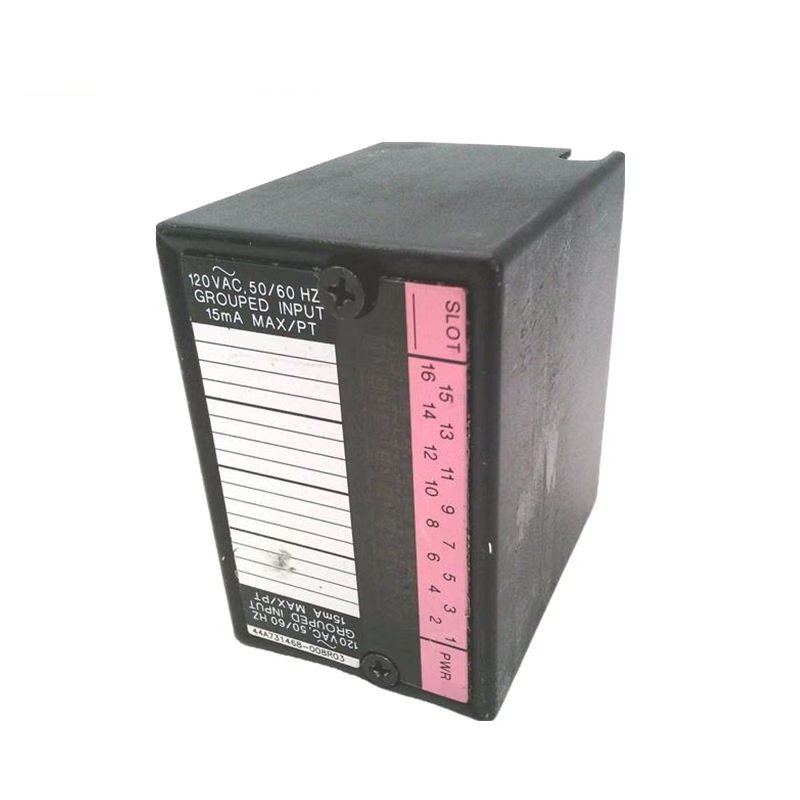

GE Fanuc IC670MDL240 Discrete Input Module
Manufacturer:General Electric
Part Number:IC670MDL240
Product Type:Discrete Input Module
Stock:IN STOCK
Repair:3-7 Day
Warranty:1 Year
Dimensions:122 mm x 82 mm x 60 mm
Weight:0.50 lbs
Product Description
The IC670MDL240 is a 16-point discrete input module from GE Fanuc’s Field Control series. It is designed to interface with binary devices such as pushbuttons, limit switches, and proximity sensors. The module operates with an external 120 VAC supply for input devices and draws power from the Bus Interface Unit (BIU). The module provides 16 input channels, each capable of accepting a nominal 120 VAC signal with a voltage range of 0-132 VAC.
Technical Specifications of IC670MDL240
- Manufacturer: GE Fanuc
- Part Number: IC670MDL240
- Module Type: Discrete Input Module
- Series: Field Control
- Number of Input Channels: 16
- Input Voltage Range: 0-132 VAC
- Nominal Input Voltage: 120 VAC
- Input Current: 15 mA per channel
- Input Frequency: 47-63 Hz
- Current Draw from BIU: 77 mA (max.)
Input Characteristics:
- On-State Voltage: 70-120 VAC
- Off-State Voltage: 0-20 VAC
- On-State Current: 5-15 mA
- Off-State Current: 0-2.5 mA
- Typical Impedance: 8.6 kΩ
- On Response Time: 12 ms (max. 20 ms)
- Off Response Time: 25 ms (max. 40 ms)
Power Requirements:
- External Power Supply: 120 VAC (for input devices)
- Power from BIU: 77 mA (max.)
- Input-to-Logic Isolation: 250 VAC continuous, 1500 VAC for 1 minute
- Ground-to-Logic Isolation: 250 VAC continuous, 1500 VAC for 1 minute
LED Indicators:
- PWR LED: Indicates backplane power
- Channel LEDs: Show on/off state of individual inputs
Physical Characteristics:
- Weight: 0.50 lbs
