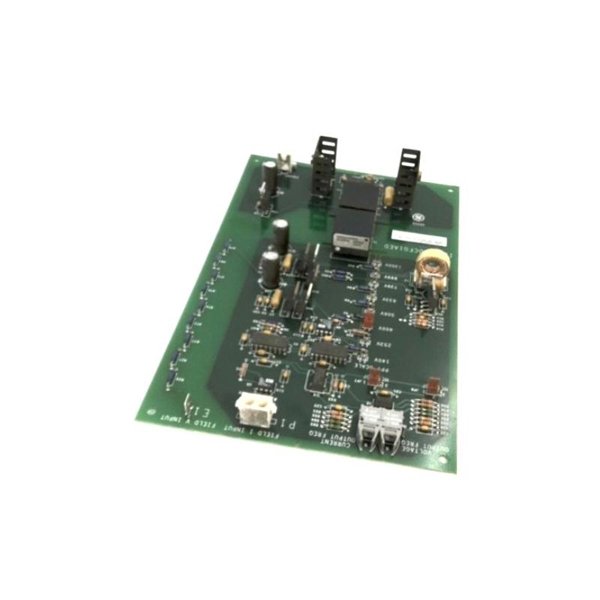

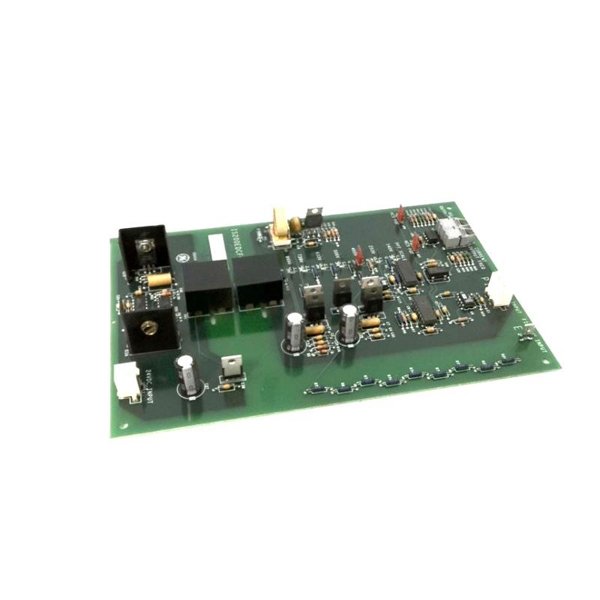

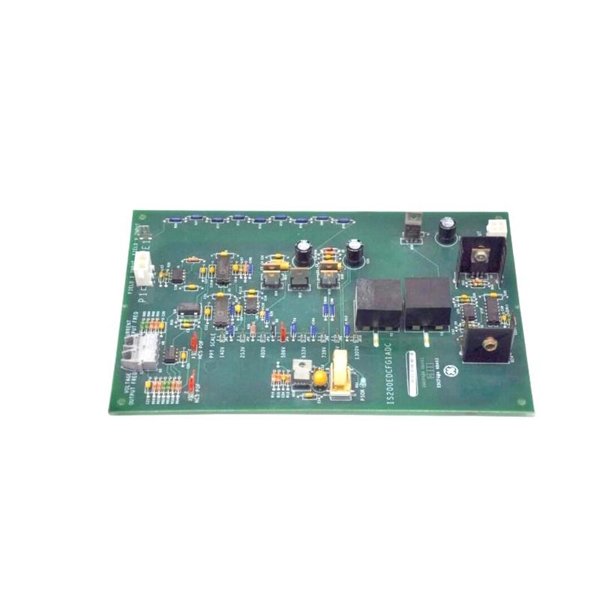

General Electric IS200EDCFG1A EX21000 Series Exciter DC Feedback Board

The GE IS200EDCFG1A is a high-reliability DC feedback board designed for the EX21000 series excitation control system. It monitors and feeds back DC parameters, ensuring precise control and stable operation of generators in power plants and industrial applications. Its compact and robust design makes it suitable for demanding environments.

Technical Specifications

Applications

The IS200EDCFG1A is used primarily in:

• Generator excitation control systems

• Power plants

• Large-scale industrial generators

• Systems requiring accurate DC feedback for stability

Advantages

• High measurement accuracy for DC parameters

• Compact and lightweight for easy integration

• Reliable performance in harsh industrial conditions

• Essential for maintaining generator voltage stability

• Proven GE quality and durability

FAQ

Q1: What is the main function of the IS200EDCFG1A?

A1: It provides DC voltage and current feedback to the EX21000 exciter system.

Q2: Is it compatible with all EX21000 systems?

A2: Yes, it is specifically designed for the EX21000 series.

Q3: Can it be replaced in the field?

A3: Yes, it is field-replaceable and designed for ease of maintenance.

Q4: What type of signals does it handle?

A4: It handles DC voltage and current feedback signals.

Q5: How much does the board weigh?

A5: Approximately 0.7 kg.

Q6: What are the physical dimensions of the board?

A6: 38 × 330 × 250 mm.

Q7: Is it suitable for outdoor use?

A7: It is intended for controlled indoor environments.

Q8: Does it require calibration?

A8: Calibration may be required per maintenance schedule.

Q9: What is the typical operating temperature range?

A9: 0°C to +60°C.

Q10: Is it part of a redundant system design?

A10: It can be used in systems with redundancy depending on configuration.
