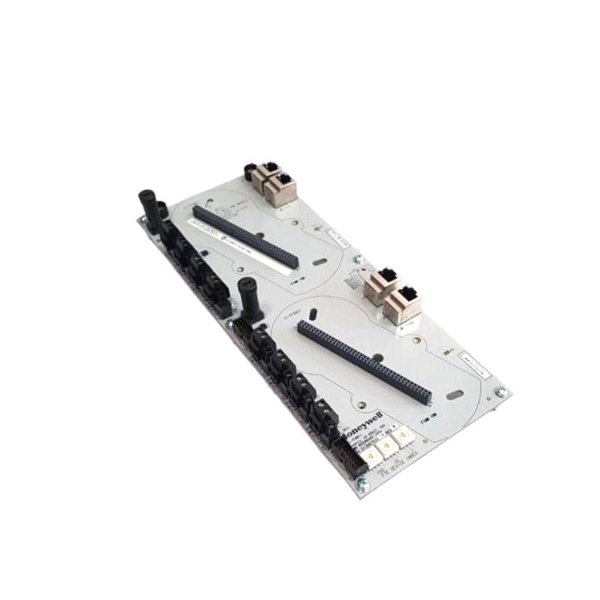

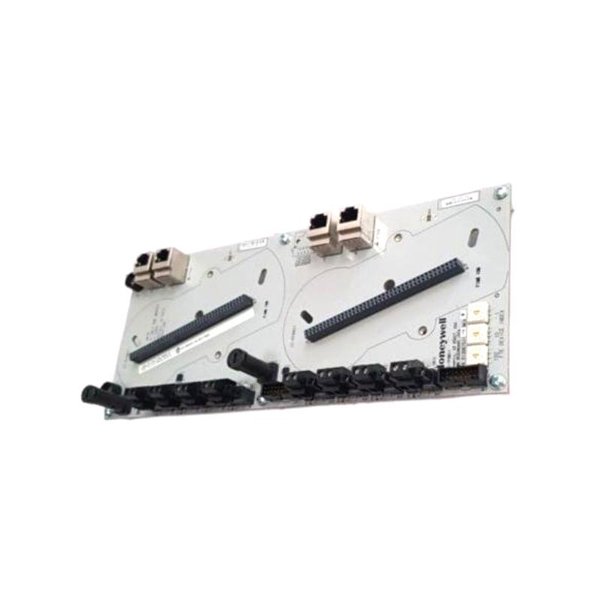

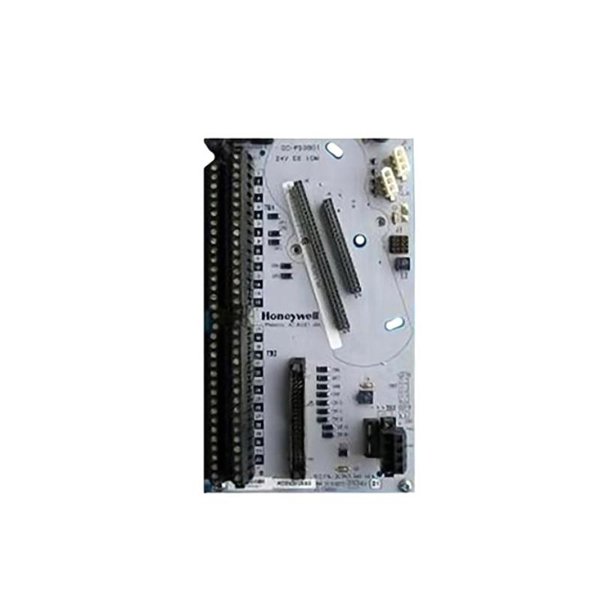

The Honeywell CC-GDIL01 51306317-175 is a Digital Input Module designed for use in Honeywell’s Experion Process Knowledge System (PKS) and legacy TDC3000 platforms. As part of the ControlEdge or C300 controller system infrastructure, this module is responsible for receiving binary signals from field devices such as limit switches, pressure switches, proximity sensors, or dry contact closures.

Designed with a rugged industrial form factor, the CC-GDIL01 module provides high-channel density, noise immunity, and integrated diagnostic capabilities. It plays a critical role in collecting field status inputs for process control, sequencing, safety interlocks, and alarm handling. The module ensures precise and timely signal processing, allowing the control system to make accurate operational decisions.

Technical Specifications

Applications

The CC-GDIL01 module is widely deployed in various industrial control and automation applications where monitoring of discrete field signals is essential:

• Refining and Petrochemical Plants: For capturing status signals from field interlocks and switches in high-availability environments.

• Power Generation Units: Used for monitoring relay status, turbine control switches, and alarm contacts.

• Pulp and Paper Industry: For sensing mechanical switch status in drying and rolling units.

• Pharmaceutical Manufacturing: Ensures accurate sequencing of equipment via limit switches.

• Oil and Gas Facilities: Monitors digital signals from remote I/O racks in hazardous zones.

• Water and Wastewater Plants: Captures pump feedback, valve open/close status, and local alarm inputs.

This module is particularly suitable where signal integrity and high availability are paramount.

Product Advantages

• High Reliability: Built to meet stringent Honeywell industrial-grade standards, ensuring uninterrupted operation.

• Isolated Inputs: Reduces the risk of signal interference and enhances safety through electrical isolation.

• Compact Form Factor: Enables high-density installations in control cabinets with limited space.

• Integrated Diagnostics: Built-in health checks and fault detection support proactive maintenance strategies.

• Fast Response Time: Real-time digital signal capture with sub-2ms latency enhances control loop responsiveness.

• Ease of Integration: Seamlessly fits into existing Honeywell platforms without the need for additional converters.

• LED Status Indicators: Clear visibility of signal states reduces commissioning and troubleshooting time.

• Flexible Input Type: Supports both sinking and sourcing configurations, increasing application versatility.

FAQ

1. What is the purpose of the CC-GDIL01 module?

   It is used to receive and process 16 individual digital input signals from field devices for control or monitoring.

2. Is this module compatible with legacy Honeywell systems?

   Yes, it supports legacy TDC3000 systems as well as modern Experion PKS and ControlEdge architectures.

3. What type of field devices can be connected to the module?

   Any dry contact, proximity switch, or voltage-based digital output device operating within 24VDC can be used.

4. Does the module provide input isolation?

   Yes, both channel-to-channel and channel-to-system bus electrical isolation are provided.

5. How are faults detected in this module?

   Integrated diagnostics can detect wire breaks, short circuits, and over-voltage conditions.

6. Can I replace the CC-GDIL01 module while the system is running?

   In redundant systems with appropriate configuration, hot-swapping is possible. Otherwise, a shutdown may be required.

7. Is the module CE and RoHS certified?

   Yes, it meets multiple global certification standards including CE and RoHS.

8. How is wiring performed for this module?

   It connects to a terminal base or wiring block compatible with Honeywell chassis or marshalling cabinets.

9. Does the module come with integrated LEDs?

   Yes, each channel has an LED for real-time signal status monitoring.

10. Can the module be used in hazardous environments?

    When installed with appropriate enclosures and barriers, it can be certified for use in ATEX or Class I Div 2 areas.
