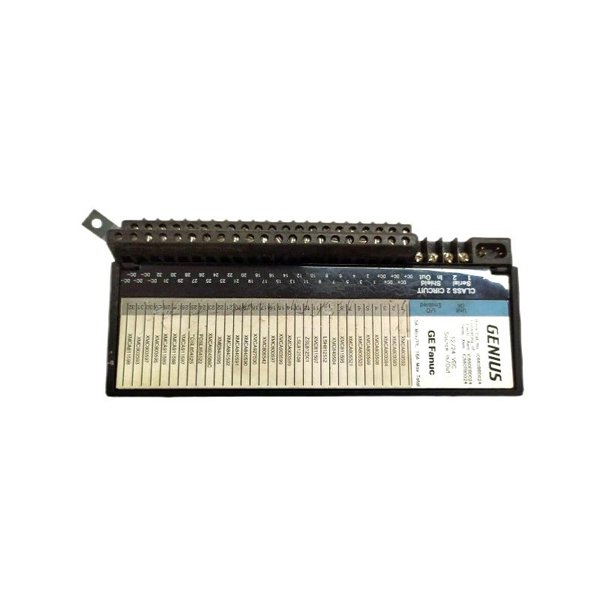

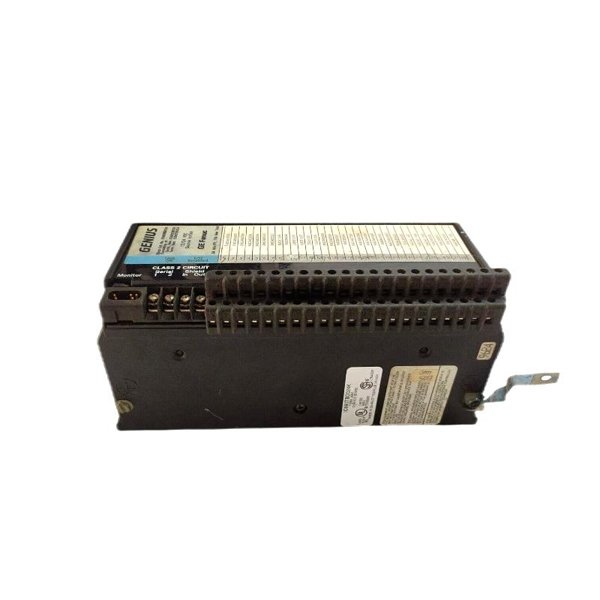

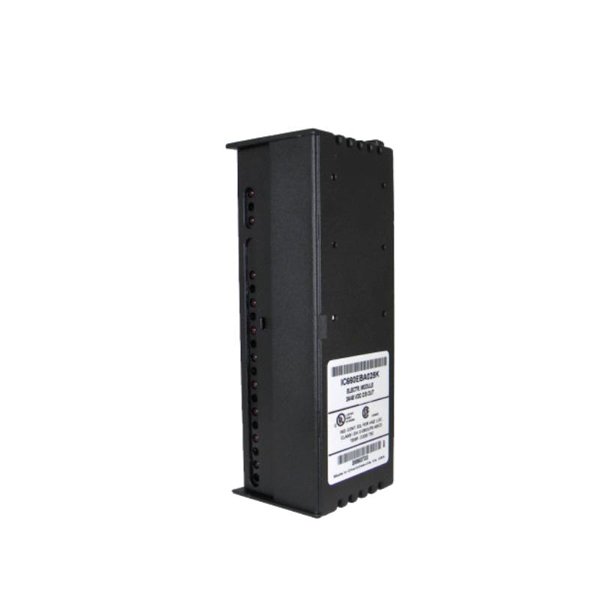

The GE Fanuc IC660EBD024 is a 32-circuit discrete input/output electronic assembly designed for industrial automation systems. As part of the Genius I/O system, it facilitates communication between controllers and field devices that provide binary signals. The module supports both sourcing and sinking I/O configurations, offering versatility in various industrial applications. Known for its diagnostic capabilities, it provides valuable information about device statuses, ensuring efficient and reliable operation.

Product Specifications

Product Applications

The IC660EBD024 module is widely utilized across various industries for integrating discrete field devices into control systems. Key application areas include:

• Manufacturing: Facilitates efficient data communication from sensors and actuators on production lines.

• Automotive: Enables real-time monitoring and control of assembly line equipment.

• Food and Beverage: Supports precise control and monitoring of processing and packaging machinery.

• Pharmaceuticals: Provides real-time access to critical process parameters, ensuring regulatory compliance.

• Water and Wastewater Treatment: Allows for smart monitoring and control of pumps, valves, and analyzers.

• Energy: Enhances control of equipment in power generation and distribution systems.

Product Advantages

• Versatility: Supports both sourcing and sinking I/O configurations, accommodating various field devices.

• High-Density I/O: Offers 32 configurable circuits, maximizing I/O capacity within a compact module.

• Advanced Diagnostics: Provides switch fault detection, enhancing system reliability and maintenance efficiency.

• Robust Design: Built to withstand harsh industrial environments, ensuring long-term durability.

• Flexible Input Filtering: Selectable input filter times allow for noise reduction and signal stabilization.

• Efficient Power Management: Low power consumption contributes to overall energy savings.

• Compact Size: Small footprint allows for easy integration into existing systems.

• High Isolation: 850 V block-to-block isolation ensures signal integrity and safety.

• Rapid Response: Fast input processing and output response times enable real-time control.

• Wide Operating Range: Suitable for various industrial environments with broad temperature and humidity tolerances.

Frequently Asked Questions (FAQs)

1. Q: What is the primary function of the IC660EBD024 module?

   A: It serves as a 32-circuit discrete input/output electronic assembly for industrial automation systems.

2. Q: Can the module be configured for both input and output operations?

   A: Yes, each of the 32 circuits can be individually configured as either an input or an output.

3. Q: What types of devices can be connected to this module?

   A: It supports connection to various discrete devices such as sensors, switches, and actuators.

4. Q: What is the maximum output current per circuit?

   A: Each output circuit can handle up to 0.5 A of steady-state current.

5. Q: Does the module provide diagnostic features?

   A: Yes, it includes switch fault detection to aid in troubleshooting and maintenance.

6. Q: What is the operating voltage range for the module?

   A: The module operates within a voltage range of 10 to 30 VDC.

7. Q: What are the dimensions and weight of the module?

   A: The module measures 224.4 x 88.9 x 100 mm and weighs 0.862 kg.

8. Q: Is the module suitable for use in harsh environments?

   A: Yes, it is designed to operate within a temperature range of 0°C to +60°C and up to 95% non-condensing humidity.

9. Q: How does the module handle electrical isolation?

   A: It provides 850 V block-to-block isolation to ensure signal integrity and safety.

10. Q: Can the input filter times be adjusted?

    A: Yes, the module offers selectable input filter times ranging from 1 to 100 ms.
