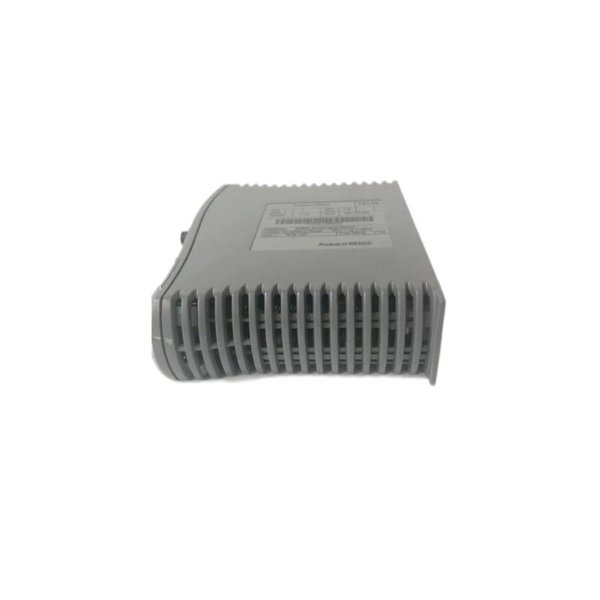

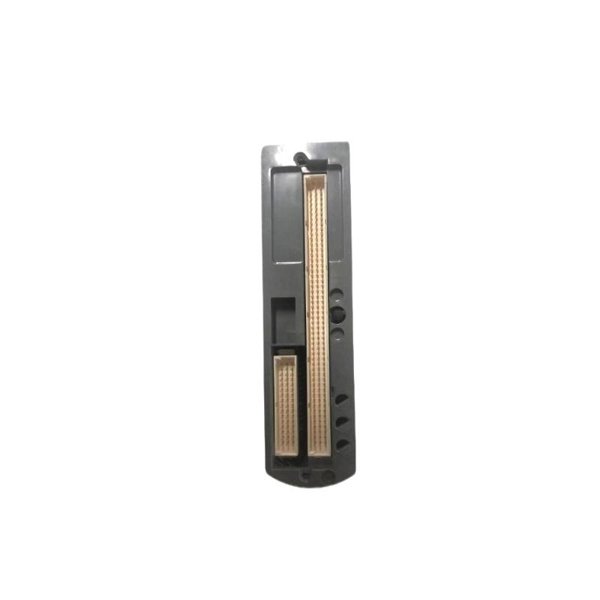

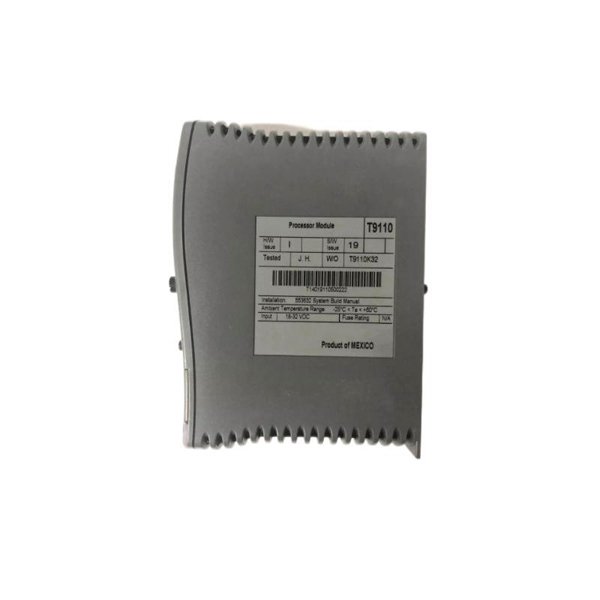

The ICS Triplex T9110 AADvance Base Unit Processor is a critical component in the AADvance system, specifically designed for safety-critical applications in industries that require high reliability and robust system control. It is widely used in sectors such as nuclear power, oil and gas, aerospace, and power generation, where system uptime and operational safety are of utmost importance.

The T9110 Base Unit Processor manages the core functions of the system, including communication, processing, and control. It can support a large number of I/O modules and offers exceptional scalability, making it ideal for a wide range of applications. Built with advanced features such as redundancy, fault tolerance, and real-time diagnostics, the T9110 ensures maximum safety and operational efficiency.

Product Specifications

Applications

The ICS Triplex T9110 AADvance Base Unit Processor is designed for deployment in high-risk industries where safety and reliability are paramount. Common applications include:

1. Nuclear Power: In nuclear power plants, the T9110 is used to control critical safety systems, ensuring safe operation by minimizing the risk of failure.
2. Oil & Gas: The processor plays an essential role in offshore drilling platforms and refineries, providing reliable control for complex safety systems.
3. Power Generation: In power plants, it helps monitor and control plant operations, ensuring efficient and safe energy production.
4. Aerospace: The T9110 is used for monitoring and control systems in aerospace applications, where safety and real-time response are critical.
5. Chemical Processing: Ensures secure operations of automated systems in chemical plants, particularly for hazardous material handling and processing.

Advantages

1. Fault Tolerance: The T9110 features a Triple Modular Redundancy (TMR) design, allowing the system to continue operating even if one module fails. This is crucial for safety-critical operations.
2. High Availability: Designed for 24/7 operations, the T9110 ensures that systems remain online even in the event of a component failure, offering maximum uptime.
3. Scalability: With support for up to 48 I/O modules, the T9110 is highly scalable, accommodating both small and large systems.
4. Real-Time Processing: The T9110 is engineered for real-time performance, ensuring that control systems respond quickly to dynamic changes in industrial environments.
5. Security: Equipped with advanced cybersecurity measures, including data encryption, user authentication, and secure communication protocols, the T9110 ensures protection against cyber threats.
6. Modular Architecture: The T9110’s modular design simplifies system integration and upgrades, allowing for future expansion without overhauling the entire system.
7. Cost-Efficiency: Due to its modular nature, the T9110 reduces maintenance costs and improves operational efficiency by allowing easy replacement of faulty modules.

FAQs

1. What industries benefit from the T9110 Base Unit Processor?

   • Industries such as nuclear power, oil & gas, aerospace, and power generation benefit from the T9110, particularly where safety and reliability are essential.

2. What are the main advantages of using the T9110 in safety-critical applications?

   • The T9110 offers fault tolerance through Triple Modular Redundancy (TMR), ensuring continuous operation even if one processor module fails.

3. How does the T9110 ensure system reliability?

   • The T9110 supports redundant configurations for power supply and communication, reducing the risk of system failure and enhancing overall system reliability.

4. What communication options are available with the T9110?

   • The processor includes two 100 BaseT Ethernet ports and two serial communication ports for flexible system integration and communication.

5. Can the T9110 be integrated with other ICS Triplex products?

   • Yes, the T9110 is fully compatible with other ICS Triplex products and integrates seamlessly into the AADvance modular safety system.

6. How many I/O modules can be connected to the T9110?

   • The T9110 can support up to 48 I/O modules, which are connected via a command and response bus, making it suitable for large and complex systems.

7. What type of power supply does the T9110 require?

   • The T9110 requires a dual +24 VDC power input to ensure stability and redundancy for mission-critical applications.

8. Is the T9110 processor suitable for harsh environments?

   • Yes, the T9110 is designed for harsh industrial environments, with a robust build that can withstand temperature extremes and other challenging conditions.

9. What are the installation requirements for the T9110?

   • The T9110 is designed for cabinet mounting and is easy to integrate into existing systems with minimal disruption to operations.

10. Does the T9110 offer real-time performance?

• Yes, the T9110 is capable of real-time processing, providing the responsiveness needed for dynamic industrial control systems.
