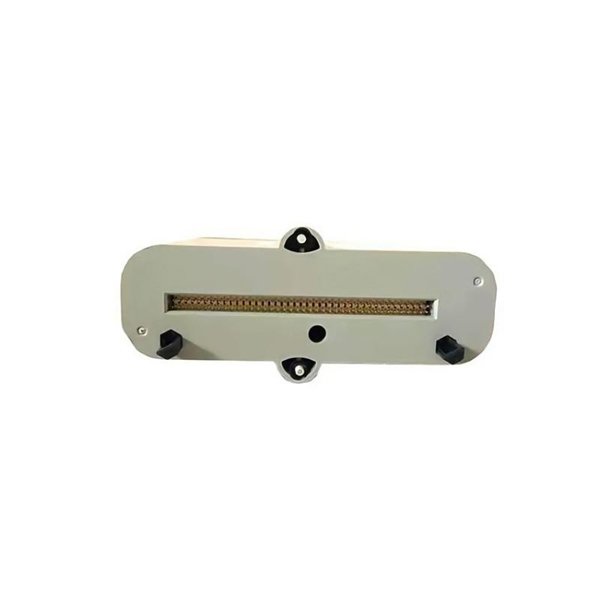

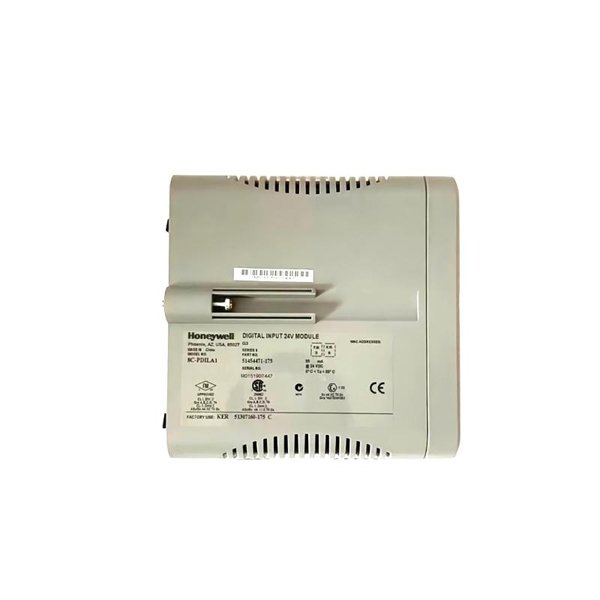

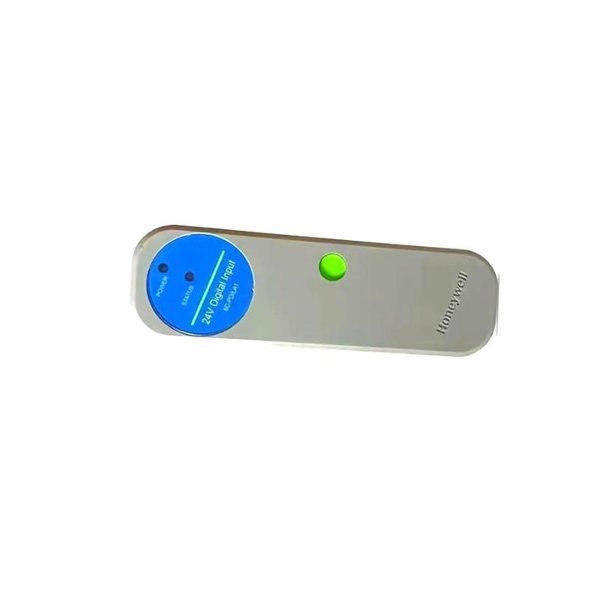

The Honeywell 8C-PDILA1 (51454471-175) is a high-density, industrial-grade digital input module designed for use within Honeywell’s Experion PKS (Process Knowledge System) and C300 Controller platform. As part of the renowned Series 8 family, the 8C-PDILA1 is engineered to meet the demands of process automation in critical applications across energy, chemical, oil & gas, and manufacturing sectors.

This module supports 32 digital input channels, accepting 24 VDC logic-level signals. It features per-channel isolation to prevent signal interference and ensure robust fault protection. Engineered for reliability and operational efficiency, the 8C-PDILA1 offers advanced diagnostics including open-wire detection and input status indication, which simplify commissioning and maintenance activities. Its modular and compact architecture also allows for hot-swap replacement, making it a valuable asset for minimizing downtime in continuous process environments.

Technical Specifications

Product Applications

• Oil & Gas Processing Plants: Interfaces with emergency stop circuits, compressor trip signals, and valve interlocks.

• Chemical and Petrochemical Facilities: Suitable for input from limit switches, position sensors, and contactors.

• Power Generation: Captures digital states from turbine control systems, switchgear status, and fault alarm panels.

• Manufacturing Automation: Used for feedback from machine sensors, limit switches, and control buttons.

• Water Treatment Systems: Reads digital signals from motor controllers, level switches, and fault indicators.

• Mining and Metals Processing: For rugged environments needing isolated digital inputs from protective relays and field switches.

Product Advantages

• High-Density Input Capacity: 32 isolated channels in a compact footprint, reducing control panel space.

• Advanced Fault Diagnostics: Detects open wire, stuck-at faults, and wiring issues to enhance system safety and maintenance efficiency.

• Electrical Isolation: 500 V isolation minimizes interference and protects both equipment and personnel.

• Hot-Swappable Design: Enables quick replacement during runtime, supporting continuous plant operation.

• Real-Time Status Monitoring: Individual channel LEDs provide immediate feedback on signal state and health.

• Rugged Design: Built for harsh industrial environments with extended temperature and humidity tolerances.

• Easy Integration: Seamlessly fits into existing Honeywell Experion and C300 controller environments.

• Reduced Downtime: Diagnostic features and modular design contribute to faster fault localization and system restoration.

FAQ

1. What is the input voltage range supported by the 8C-PDILA1?

   The module is designed for 24 VDC logic-level inputs, typically ranging between 18–30 VDC.

2. How many inputs does this module provide?

   It offers 32 individually isolated digital input channels.

3. Is hot-swapping possible with this module?

   Yes, it supports hot-swapping in redundant and fault-tolerant configurations.

4. Does this module support diagnostic feedback?

   Yes, it includes diagnostics for open wires, short circuits, and signal integrity.

5. Can I monitor the status of each input directly on the module?

   Yes, each input channel has a corresponding LED indicator for status display.

6. Is the module suitable for safety-related applications?

   Yes, it is SIL2 certified and can be used in safety instrumented systems when properly configured.

7. What happens if a connected input wire breaks?

   The module will detect the open-wire condition and report it via diagnostics.

8. How does this module differ from 8C-PDIL51?

   The 8C-PDILA1 includes advanced diagnostics and may support intrinsically safe (IS) wiring options, depending on configuration.

9. What type of field devices can be connected to this module?

   It supports dry contact switches, sourcing outputs, and most 24 VDC discrete sensors.

10. What environments is the module certified for?

    It carries CE, UL, CSA, ATEX, GOST, and SIL2 certifications, making it suitable for global industrial applications.
