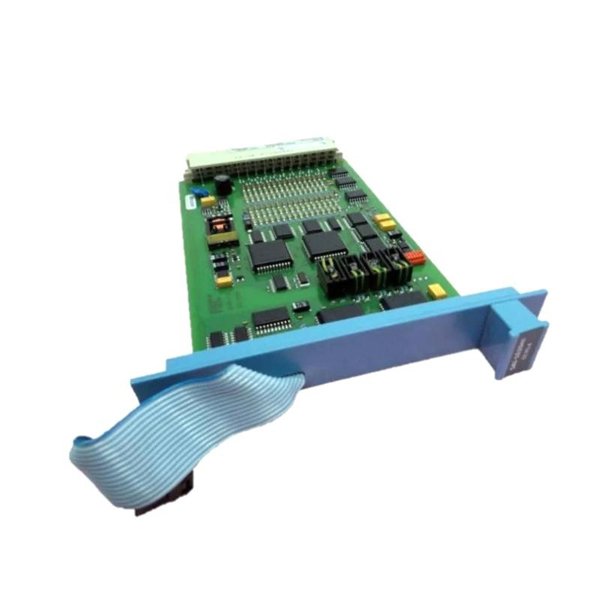

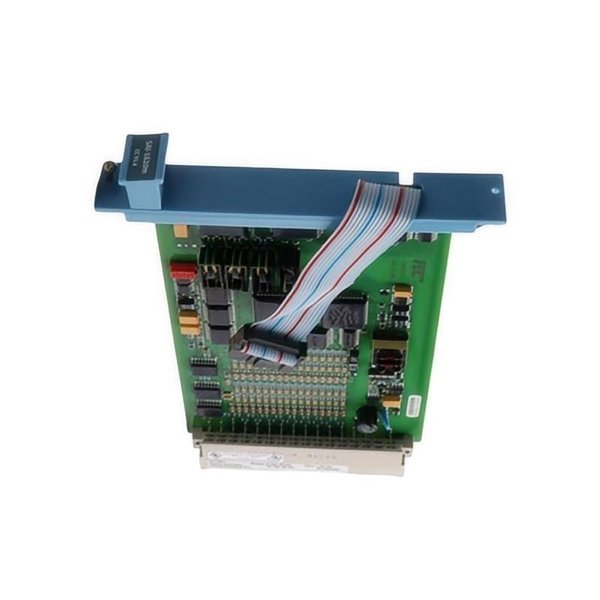

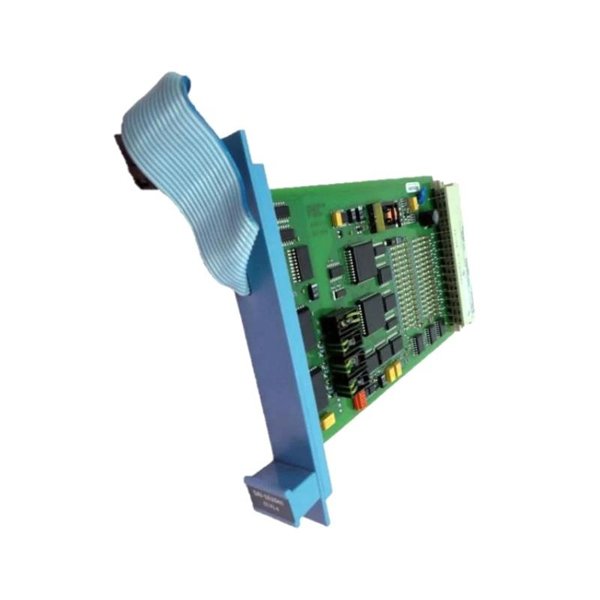

The Honeywell FS-SAI-0410 Safe Analog Input Module is a high-reliability analog input module designed for safety-critical industrial automation and process control systems. It is engineered to acquire and process analog signals from field sensors, transmit accurate data to control systems, and maintain functional safety in hazardous or high-demand environments.

The module is compliant with industry safety standards, providing high-integrity signal conversion, fault detection, and isolation features. It is compatible with Honeywell PLCs and distributed control systems, ensuring seamless integration and reliable operation for mission-critical applications.

Product Specifications

Applications

• Process Automation – acquiring analog signals from flow, pressure, temperature, and level sensors.

• Safety-Critical Systems – providing safe input for SIL 2 or SIL 3 compliant control loops.

• Industrial Control Panels – integrating with PLCs and DCS for analog monitoring.

• Remote Monitoring Systems – transmitting field sensor data to centralized control systems.

• Energy Management – measuring electrical parameters such as current or voltage for safe control.

• Building and Infrastructure Automation – safe analog monitoring for HVAC, lighting, and critical systems.

Advantages

• High Safety Integrity: Supports SIL 2 / SIL 3 applications with reliable fault detection.

• Accurate Analog Measurement: ±0.1% full-scale accuracy ensures precise data acquisition.

• Multiple Signal Types Supported: 4–20 mA, 0–20 mA, and 0–10 V signals.

• Isolation Between Channels: 1500 V isolation enhances safety and reduces interference.

• DIN Rail Mountable: Easy installation in industrial control panels.

• Durable Construction: Polycarbonate housing with metal reinforcement for industrial reliability.

• Seamless Honeywell Integration: Fully compatible with Honeywell PLCs and distributed control systems.

Frequently Asked Questions (FAQ)

1. How many input channels does the FS-SAI-0410 support?

   The module provides 4 analog input channels, allowing multiple sensor signals to be safely monitored simultaneously.

2. Which analog signal types are compatible with this module?

   It accepts 4–20 mA, 0–20 mA, and 0–10 V signals, covering most industrial sensor output types for flexibility in installation.

3. What is the typical signal accuracy of the module?

   The measurement accuracy is ±0.1% of full scale, ensuring precise and reliable data acquisition for critical control applications.

4. Can this module be used in SIL 3 safety applications?

   Yes, it is designed to meet SIL 2 and SIL 3 requirements, providing high-integrity signal input suitable for safety-critical systems.

5. What is the response time of the analog inputs?

   The typical response time is 10 ms, which allows fast and accurate signal processing for real-time control systems.

6. Is the module isolated between channels?

   Yes, each input channel is electrically isolated up to 1500 V, reducing interference and ensuring signal safety across multiple sensors.

7. Does it integrate with Honeywell PLC and DCS systems?

   Yes, the module is fully compatible with Honeywell PLCs and distributed control systems, providing seamless integration into existing control networks.

8. What is the operating temperature range of this module?

   It operates reliably between -20°C and +60°C, making it suitable for both indoor and harsh industrial environments.

9. Can it be mounted on a standard DIN rail?

   Yes, the FS-SAI-0410 is designed for DIN rail installation, enabling easy and secure mounting in industrial control panels.

10. What materials are used in the module construction?

    The module uses industrial-grade polycarbonate housing reinforced with metal components, ensuring long-term durability and mechanical protection in demanding environments.
