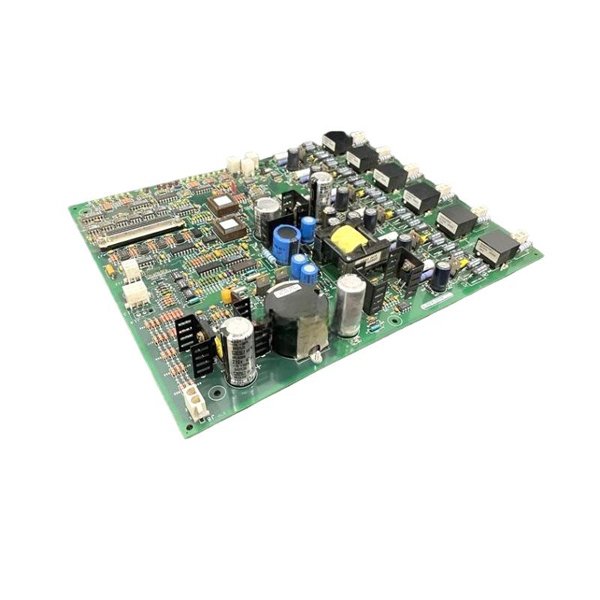

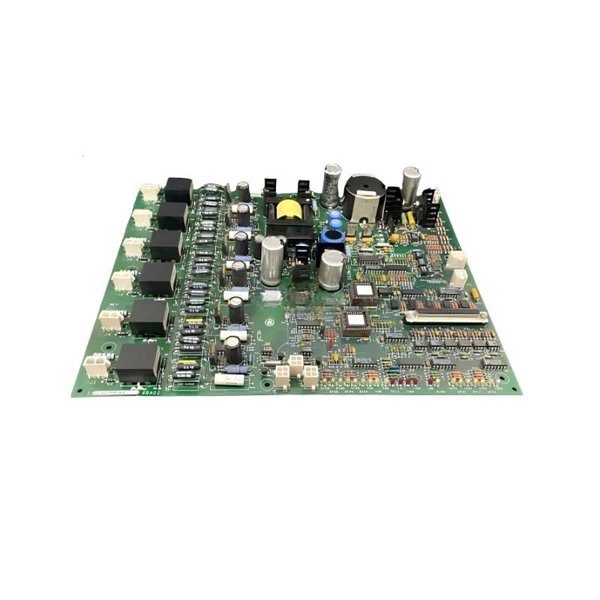

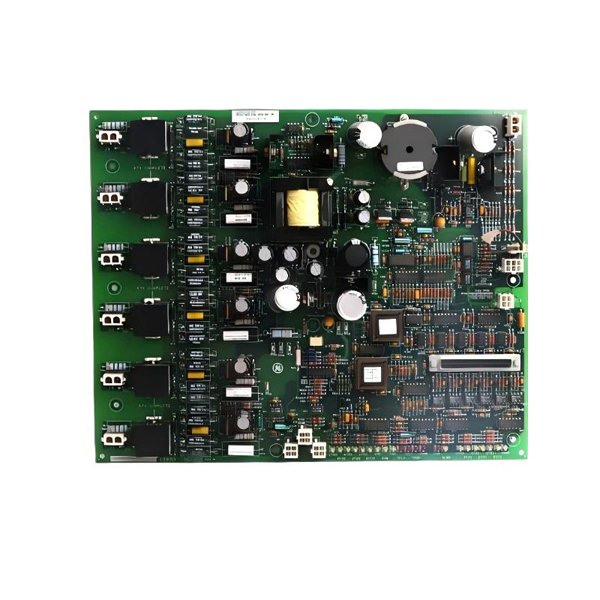

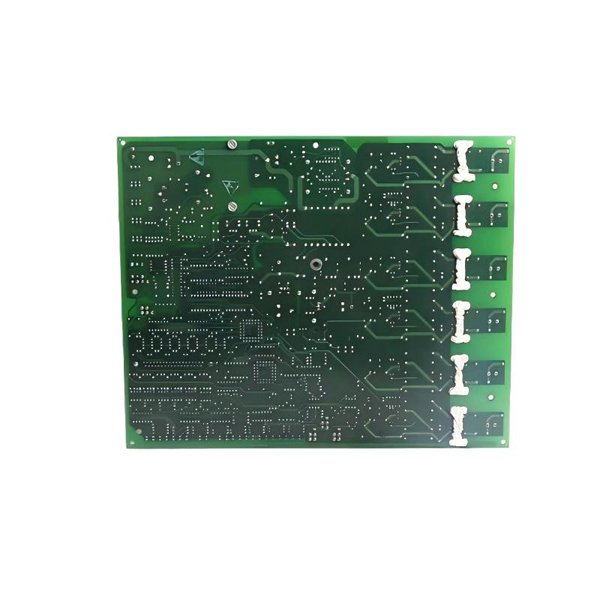

The GE IS200EHPAG1A is a high-performance Gate Pulse Amplifier board designed for use in industrial control systems. It is a critical component in various applications where signal amplification is required, particularly in excitation systems and power control systems. This amplifier board ensures efficient pulse signal processing, enabling reliable communication and control within the system.

The IS200EHPAG1A offers excellent durability and reliability, operating effectively within a temperature range of -40°C to +70°C. With dimensions of 331 x 267 x 45 mm and a weight of 1.1 kg, this board is compact yet powerful, designed for installation in demanding industrial environments. It enhances the performance of your equipment by providing high-accuracy signal amplification.

Technical Parameters

Product Applications

The GE IS200EHPAG1A Gate Pulse Amplifier Board is ideal for applications requiring high-frequency pulse amplification and reliable signal processing. Some key applications include:

1. Excitation Systems: The IS200EHPAG1A is frequently used in excitation control systems, where it amplifies the gate pulse signals to manage power transmission and distribution systems effectively.

2. Power Control Systems: This amplifier is essential in power control applications where precision in signal amplification is critical for optimal system performance.

3. Industrial Automation: In industrial automation setups, this board helps amplify control signals, ensuring that command and feedback signals are processed with high accuracy.

4. Signal Processing in SCADA Systems: The IS200EHPAG1A is used in SCADA (Supervisory Control and Data Acquisition) systems to improve signal processing reliability and efficiency.

5. Motor Control Systems: In motor control applications, this board ensures that gate pulse signals are amplified, allowing for smooth and consistent operation of electric motors.

6. Test Equipment and Laboratories: This board can be used in test equipment and laboratories to amplify signals for diagnostics, troubleshooting, or system testing.

Advantages

1. High Precision and Reliability: The IS200EHPAG1A provides precise pulse signal amplification, ensuring accurate system control, especially in complex automation or power systems.

2. Compact Design: With a dimension of 331 x 267 x 45 mm and weighing 1.1 kg, the board is compact, easy to install, and adaptable to various system layouts.

3. Wide Operating Temperature Range: Operating effectively between -40°C to +70°C, this board is designed to perform well in harsh industrial environments.

4. Durable Construction: Built with industrial-grade materials, the IS200EHPAG1A board is robust and designed to withstand demanding industrial conditions, ensuring long-term durability and performance.

5. Efficient Power Consumption: It operates with a 24 V DC power supply, offering energy-efficient operation without compromising performance.

6. Flexible Connectivity: The board features screw-terminal connectors, making it easy to integrate into existing systems and ensuring secure connections.

7. High Output Frequency: The IS200EHPAG1A is designed to support high-frequency pulse output, ensuring fast and accurate signal processing in high-speed systems.

8. Compliance with Safety Standards: It is CE, UL, and RoHS certified, guaranteeing it meets international safety and environmental standards, enhancing the reliability of your system.

9. Easy Integration: The rack-mounted design allows for easy integration into existing equipment racks, simplifying the installation process.

10. Versatile Use Cases: Its wide range of applications, including excitation systems, motor control, and signal processing, makes it suitable for various industrial and laboratory environments.

Frequently Asked Questions (FAQ)

1. What is the operating temperature range of the GE IS200EHPAG1A?

   • The IS200EHPAG1A operates in the temperature range of -40°C to +70°C.

2. What is the weight of the GE IS200EHPAG1A board?

   • The board weighs 1.1 kg.

3. What type of signal does the IS200EHPAG1A amplify?

   • The board amplifies pulse signals for high-accuracy signal processing.

4. What is the power supply requirement for the IS200EHPAG1A?

   • The board operates on a 24 V DC power supply.

5. What is the output frequency supported by the IS200EHPAG1A?

   • The board supports high-frequency pulse output.

6. What is the mounting type of the IS200EHPAG1A?

   • The IS200EHPAG1A is designed for rack-mounting.

7. Is the IS200EHPAG1A board compatible with other GE systems?

   • Yes, the board is designed for use in GE industrial control systems and is compatible with other GE equipment.

8. What certifications does the IS200EHPAG1A board have?

   • The board is CE, UL, and RoHS certified, meeting international safety and environmental standards.

9. Can the IS200EHPAG1A be used in motor control systems?

   • Yes, it is widely used in motor control systems to amplify gate pulse signals.

10. What is the main function of the IS200EHPAG1A board?

    • The IS200EHPAG1A amplifies gate pulse signals for use in power control, automation, and excitation systems.
