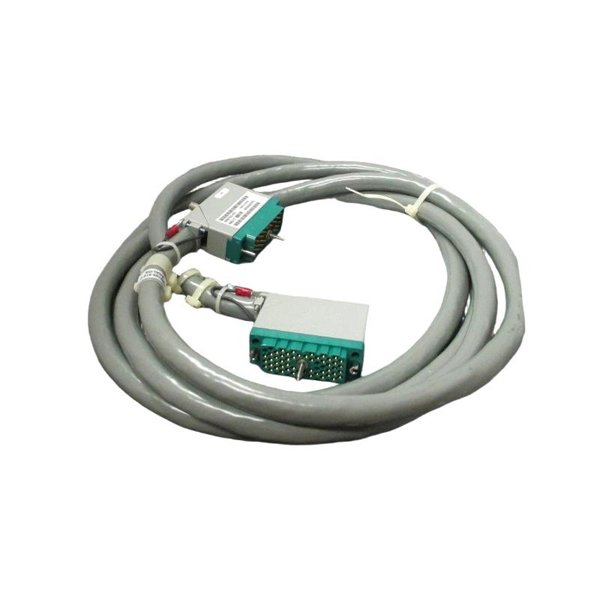

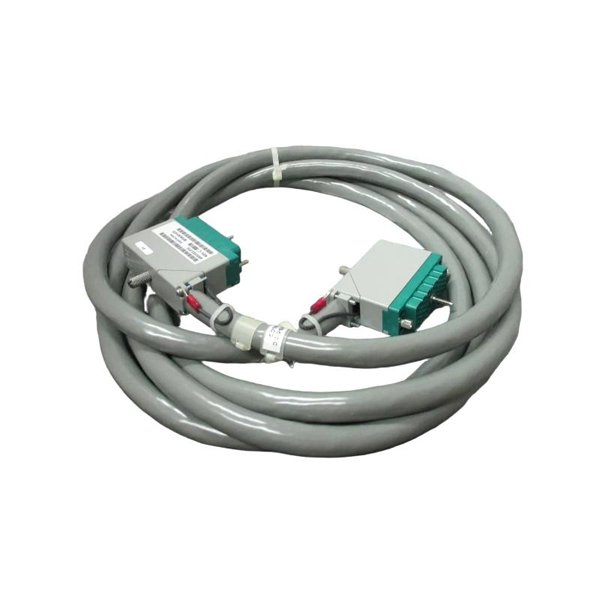

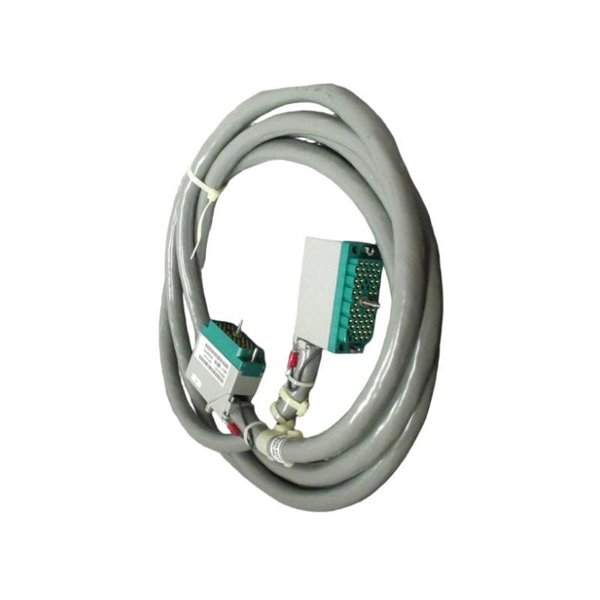

The Triconex 9101-010F Fanned Out Cable is a high-performance industrial cable specifically designed to support Triconex safety and control systems. Its “fanned-out” design allows for multiple connection points from a single bundled cable, simplifying wiring for complex installations. This configuration is particularly effective for distributing signals to multiple input/output terminals, reducing installation time and ensuring neat, organized wiring layouts.

Built with robust shielding and durable materials, the 9101-010F provides reliable communication and signal transmission in mission-critical applications. It is engineered to withstand harsh industrial conditions, including electrical noise, vibration, and thermal variations. Its flexibility in configuration and installation makes it a preferred solution in large-scale Safety Instrumented Systems (SIS), Emergency Shutdown Systems (ESD), and Fire & Gas Systems (F&G).

Product Specifications

Applications

The Triconex 9101-010F Fanned Out Cable is widely used in industries requiring safe, reliable, and efficient wiring solutions:

• Signal Distribution – Simplifies connection of multiple input and output signals from Triconex controllers.

• Control Panel Integration – Neatly organizes and reduces wiring clutter in dense control cabinets.

• Safety Instrumented Systems (SIS) – Provides reliable connectivity for safety-critical operations.

• Emergency Shutdown Systems (ESD) – Ensures quick and reliable signal paths during shutdown events.

• Fire and Gas Systems (F&G) – Connects sensors and controllers with reduced wiring complexity.

• Large-Scale Process Plants – Offers structured wiring layouts for refineries, petrochemical plants, and power stations.

Advantages

The Triconex 9101-010F Fanned Out Cable delivers clear benefits for industrial system engineers:

• Simplified Wiring – Reduces complexity by distributing signals through a single bundled cable.

• High Signal Integrity – Shielding ensures reliable communication in noisy industrial environments.

• Space Optimization – Fanned-out design eliminates excess wiring bulk in control cabinets.

• Durability – Built with robust materials for long-term use in demanding environments.

• Flexibility – Optional cable lengths allow customized installation.

• Safety-Certified – Meets international industrial safety standards.

• Reduced Maintenance – Organized wiring makes troubleshooting faster and more efficient.

FAQ

1. What is the main purpose of a fanned-out cable in a Triconex system?

   It distributes multiple signals from a single cable to different terminals, simplifying wiring.

2. Does the 9101-010F support both digital and analog signals?

   Yes, it is designed for both low-voltage digital and analog signal transmission.

3. What type of shielding is included in this cable?

   The cable features EMI/RFI shielding for maximum noise protection.

4. Can the cable be customized in terms of length?

   Yes, it is available in optional lengths depending on installation requirements.

5. Is the fanned-out design compatible with Triconex terminal panels?

   Yes, it integrates seamlessly with Triconex terminal blocks and panels.

6. How does the cable improve cabinet organization?

   By reducing bulk and distributing connections more efficiently than multiple separate cables.

7. Does this cable support redundant system layouts?

   Yes, it can be deployed in redundant configurations for fault-tolerant designs.

8. What is the maximum recommended operating temperature?

   The cable is rated for continuous operation up to +70°C.

9. Is the cable resistant to industrial vibration and bending?

   Yes, it is mechanically reinforced to handle bending and vibration.

10. Can the cable be used in fire and gas detection systems?

    Yes, it is flame-retardant and suitable for F&G signal transmission.
