Manufacturer:Honeywell
Product Number:900H02-0001
Product Type:Digital Output Module
Origin:USA
Dimensions:137 x 35.6 x 137.16 mm
Weight:0.425 kg
Views:75
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24

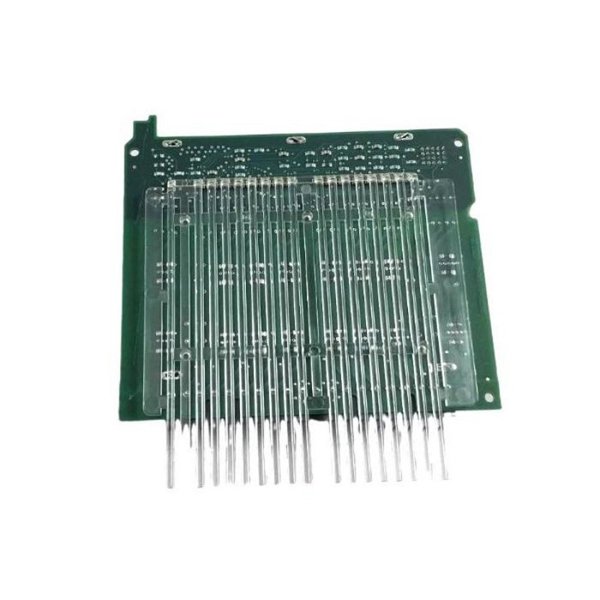

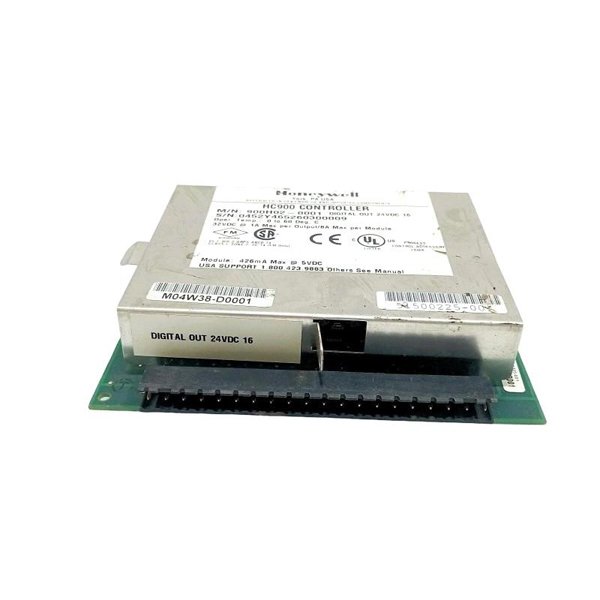

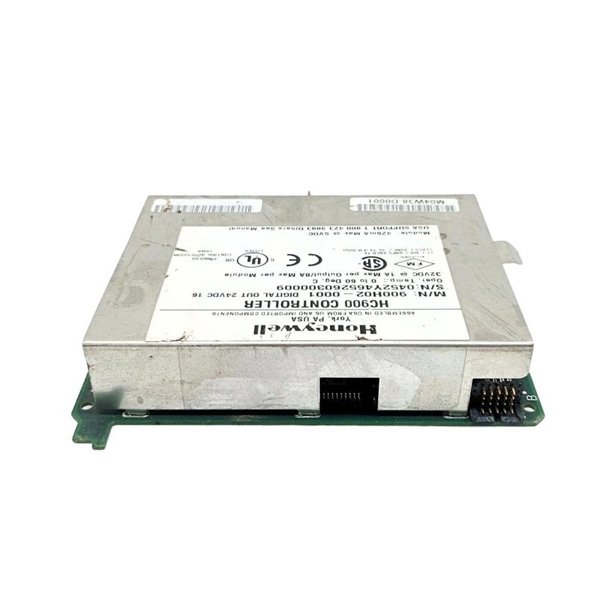

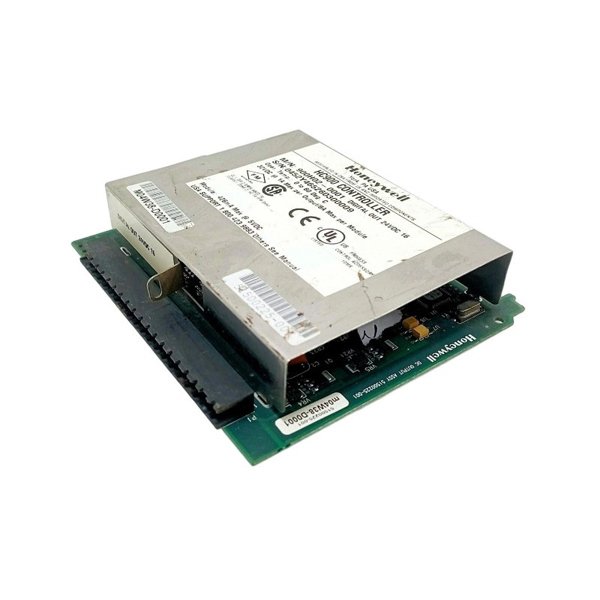

The Honeywell 900H02-0001 is a 16-channel DC digital output module used in the ControlEdge HC900 system. It features intelligent power switching with galvanic isolation, electronic protection, and diagnostic indicators for enhanced reliability in industrial automation environments.
| Parameter | Specification |
|---|---|
| Module Type | Digital Output (DC, current sinking) |
| Output Channels | 16 (in 2 groups of 8) |
| Output Type | Intelligent Power Switch (IPS) |
| Operating Voltage | 6.5 to 32 VDC (5.0–6.5 V @ <0.5A) |
| Peak Voltage | 34 VDC |
| Output Current | Max 1 A/point, 8 A total resistive load |
| Inrush Current | 4 A for 10 ms |
| ON Voltage Drop | 0.3 VDC @ 1 A |
| Leakage Current | Max 0.15 mA @ 32 VDC |
| Output Protection | Electronic overload (current & temperature) |
| ON/OFF Response Time | 6 ms / 6 ms |
| Galvanic Isolation | 2 groups of 8 outputs |
| Power Consumption | 5V: 340 mA; 24V: 0 mA |
| Dimensions (H x W x D) | 137 x 35.6 x 137.16 mm |
| Weight | 0.425 kg |
Factory automation systems
Burner and boiler control
Material handling systems
Batch and continuous process control
Water treatment and utilities
Safety interlock signaling
Modular design fits ControlEdge HC900 racks
Electronic protection ensures durability under overload
Galvanic isolation between output groups prevents cross-interference
Real-time diagnostics with status LEDs for each channel
Hot-swappable module for ease of maintenance
Compact footprint suitable for space-constrained cabinets
Q1: What is the max load current per channel?
A1: 1 A per point for resistive load.
Q2: Is the module protected from overload?
A2: Yes, it has electronic current and thermal overload protection.
Q3: Can the module be replaced while powered?
A3: Yes, hot-swap is supported with appropriate terminal block disconnection.
Q4: What is the minimum load requirement?
A4: 0 mA, making it suitable for low-power signaling.
Q5: Is each output channel galvanically isolated?
A5: No, isolation is per group of 8 outputs, not per point.
Q6: What diagnostics are available?
A6: Each output has a green LED; the module has green (active), amber (forced), and red (fault) indicators.
Q7: What is the peak voltage rating?
A7: 34 VDC.
Q8: Does it support AC output?
A8: No, it supports only DC (sinking type).
Q9: What is the response time?
A9: 6 ms both for OFF to ON and ON to OFF transitions.
Q10: What are typical application voltages?
A10: 24 VDC is most commonly used.
