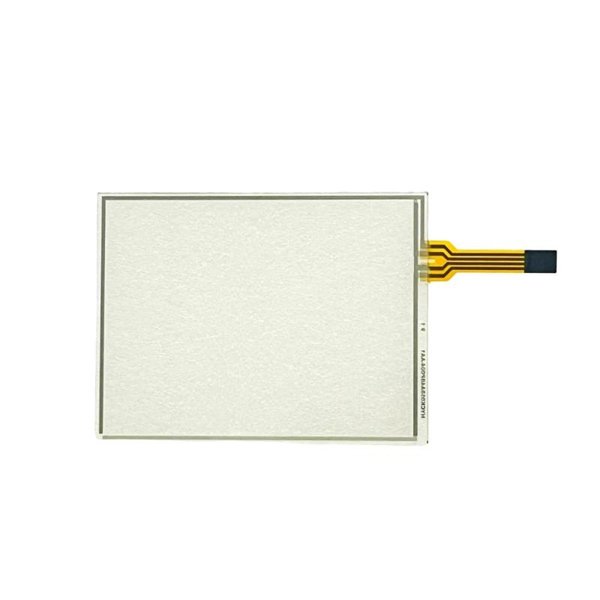

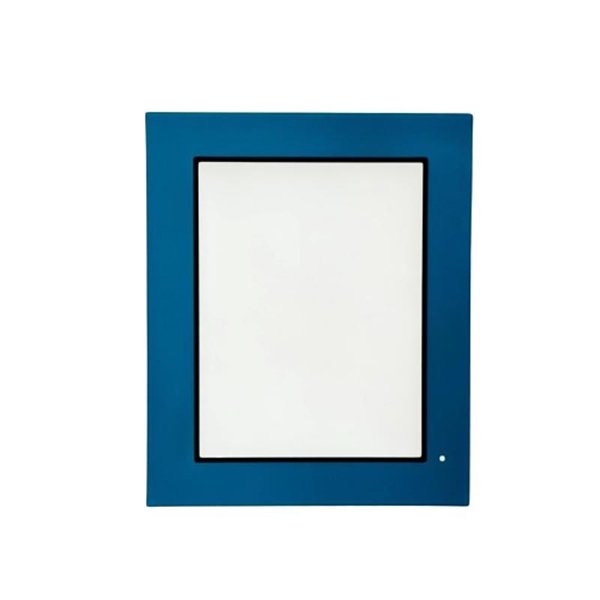

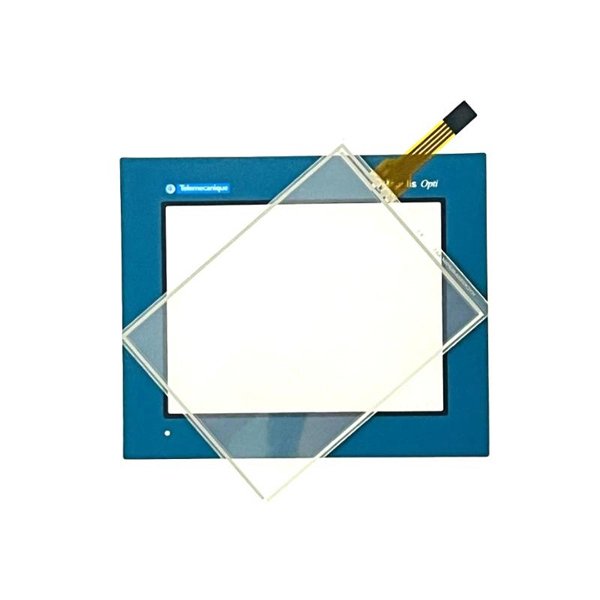

Schneider XBT0T2210 Touch Screen Panel Glass

The Schneider XBT0T2210 Touch Screen Panel Glass is an advanced, high-quality replacement touch screen designed for use with Schneider Electric’s HMI (Human-Machine Interface) systems. The XBT0T2210 is part of the Magelis series of HMI products, designed for industrial and automation environments. This touch screen panel is known for its durability, precision, and ease of use, providing an intuitive interface for machine operators and technicians.

With its superior construction and high-resolution display, the XBT0T2210 ensures a seamless user experience, enabling operators to efficiently monitor, control, and troubleshoot industrial systems. The glass is engineered to withstand the rigors of industrial applications, offering long-lasting performance even in harsh environments.

Product Specifications

Applications

The Schneider XBT0T2210 Touch Screen Panel Glass is commonly used in industrial automation systems where user interfaces are essential for controlling machinery, systems, and processes. Some key applications include:

• Industrial Control Systems: The XBT0T2210 is used to replace the touch screen on Schneider’s Magelis HMI systems, providing clear visual control for operators.

• Manufacturing Systems: It helps in monitoring production lines, adjusting settings, and controlling machines.

• Energy Management: Used in energy control systems for real-time monitoring and interaction with energy distribution devices.

• Building Automation: In HVAC systems, it allows operators to control temperature, lighting, and security systems from a central interface.

• Process Automation: Ideal for use in chemical, water treatment, and other process industries where precise control and monitoring are necessary.

Advantages

1. Durable Construction: The panel is made of tempered glass, which enhances its resistance to impacts, scratches, and environmental factors.

2. High Resolution: The 640 x 480 resolution ensures a clear and sharp display for better user experience.

3. Intuitive Interface: The resistive touch technology allows for easy navigation with a finger or stylus, making it simple to operate and interact with the system.

4. Wide Temperature Range: The screen can operate in temperatures ranging from -10°C to +60°C, which makes it ideal for use in a variety of industrial environments.

5. Easy Installation: The XBT0T2210 is designed to be a direct replacement for the corresponding Schneider HMI touch screens, making installation straightforward and convenient.

6. High Sensitivity: The touch screen is highly responsive, providing a seamless experience even in harsh environments where precise input is crucial.

7. Enhanced Durability: Built to withstand wear and tear, it provides long-term reliability in industrial and automation applications.

8. Energy Efficient: The touch screen consumes minimal power, which helps reduce energy costs while maintaining high performance.

Frequently Asked Questions (FAQ)

1. What is the screen size of the Schneider XBT0T2210?

   • The screen size of the XBT0T2210 is 159 x 131 mm.

2. What type of touch technology does the XBT0T2210 use?

   • It uses analog resistive touch technology.

3. Is the XBT0T2210 compatible with all Magelis HMI systems?

   • The XBT0T2210 is compatible with Schneider Electric’s Magelis XBT series HMI systems.

4. What is the resolution of the XBT0T2210 screen?

   • The screen resolution is 640 x 480 pixels.

5. What is the weight of the Schneider XBT0T2210 touch screen glass?

   • The weight of the touch screen glass is 0.35 kg.

6. What is the operating temperature range of the XBT0T2210?

   • The operating temperature range is from -10°C to +60°C.

7. Can the XBT0T2210 be used in outdoor environments?

   • While the screen is durable and built for industrial environments, it is recommended to use it in controlled indoor environments, as it is not specifically designed for direct exposure to outdoor elements.

8. What materials are used in the construction of the XBT0T2210?

   • The touch screen panel is made from tempered glass for enhanced durability and resistance to impacts.

9. Can I replace the touch screen by myself?

   • Yes, the XBT0T2210 is designed for easy installation and can be replaced with minimal effort by following the installation instructions.

10. What is the interface compatibility of the XBT0T2210?

    • The XBT0T2210 is compatible with Schneider Electric’s Magelis XBT series of HMI systems.
