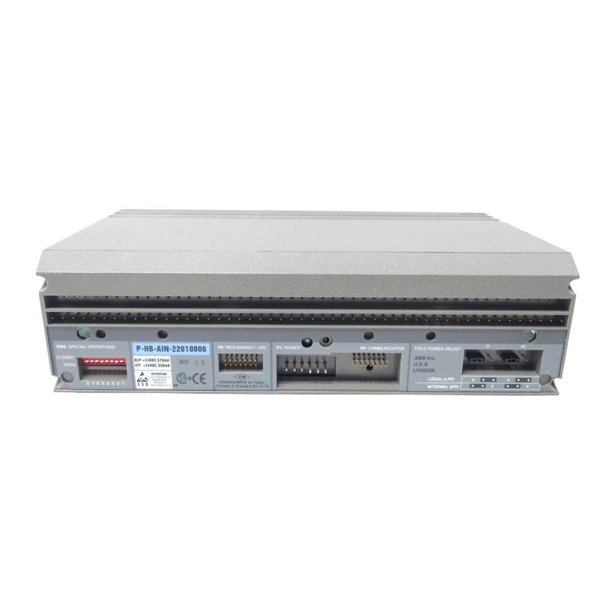

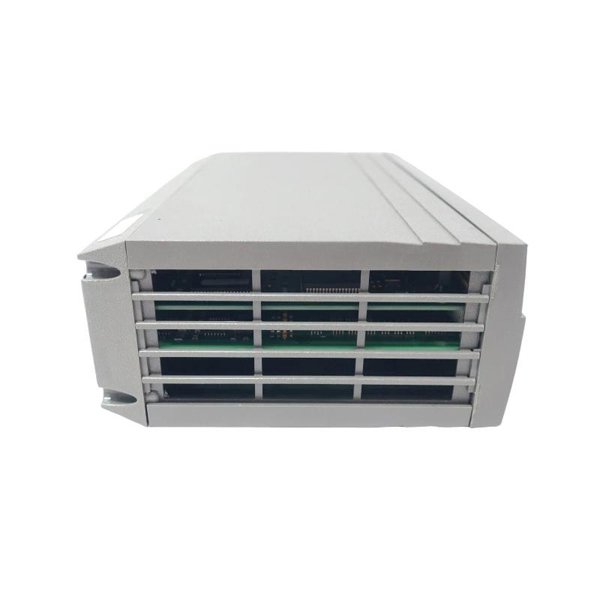

ABB Bailey AIN200 P-HB-AIN-20010 000 Analog Input Module

The ABB Bailey AIN200 (P-HB-AIN-20010 000) Analog Input Module is designed as a reliable and precise solution for converting field analog signals into digital data within ABB’s Bailey INFI 90 distributed control system (DCS). This single-channel module provides consistent and accurate analog data acquisition, vital for effective process monitoring and control.

Engineered for integration within ABB’s INFI 90 system, the AIN200 module is built to withstand industrial environments, ensuring long-term operational stability. It supports typical industrial signals such as 4–20 mA current and 0–10 V voltage inputs. Its rugged construction and diagnostic capabilities enable easy maintenance, helping plants maintain continuous, high-quality data flows.

The AIN200 module is favored in industries that require dependable analog measurement for critical control processes, facilitating process accuracy, safety, and efficiency.

Product Specifications

Applications

The ABB Bailey AIN200 Analog Input Module is applied extensively in industries where precision and reliability of analog measurements are critical. It is used to translate physical parameters into digital data for control systems:

• Chemical Processing Plants: Monitoring temperatures, pressures, and flow rates from analog sensors.

• Oil & Gas Sector: Measurement of pipeline pressures, valve positions, and tank levels.

• Power Generation Facilities: Acquisition of generator and turbine sensor signals.

• Water Treatment Plants: Measuring pH, turbidity, and chemical dosing parameters.

• Pharmaceutical Manufacturing: Environmental monitoring and process variable measurement.

• Food & Beverage Industry: Quality control measurements for temperature and flow.

Product Advantages

• Accurate Signal Conversion: Utilizes a 16-bit A/D converter, ensuring high fidelity of measured analog signals.

• Noise Immunity: Designed to reduce signal noise and interference in industrial environments.

• Compact and Modular Design: Facilitates simple integration and replacement within INFI 90 rack systems.

• Integrated Diagnostics: LED indicators provide clear and immediate status information, easing troubleshooting.

• Broad Environmental Tolerance: Operates reliably over wide temperature and humidity ranges.

• Legacy System Compatibility: Supports existing Bailey INFI 90 systems, making it suitable for retrofits and upgrades.

Frequently Asked Questions (FAQ)

1. What analog signals can the AIN200 module accept?

It accepts both 4–20 mA current and 0–10 V voltage signals.

2. How many channels does the module support?

The AIN200 has one analog input channel.

3. Is the module compatible with ABB’s INFI 90 system?

Yes, it is fully compatible with the INFI 90 DCS platform.

4. What is the operating temperature range?

The module operates between 0°C and 60°C.

5. How is the module powered?

It receives power from the INFI 90 system rack, usually 5V DC.

6. Does the module provide diagnostics?

Yes, it includes LED indicators for system status and fault detection.

7. Can this module be used for different sensor types?

Yes, it supports standard industrial analog sensor signals within its input range.

8. What maintenance is required?

Minimal maintenance is needed; periodic calibration of connected sensors is recommended.

9. Is the module suitable for harsh industrial environments?

Yes, it is designed for industrial-grade durability and environmental tolerance.

10. How precise is the signal measurement?

It uses 16-bit resolution for high-precision analog-to-digital conversion.
