Emerson KJ3002X1-BC1 12P0681X092 Analog Input Module

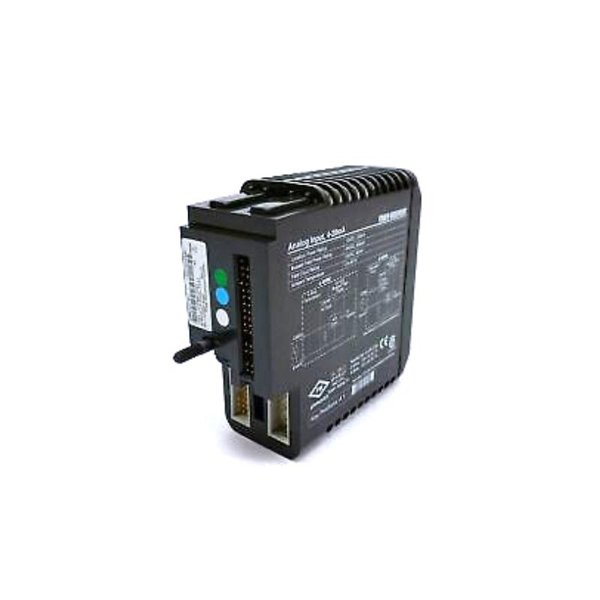

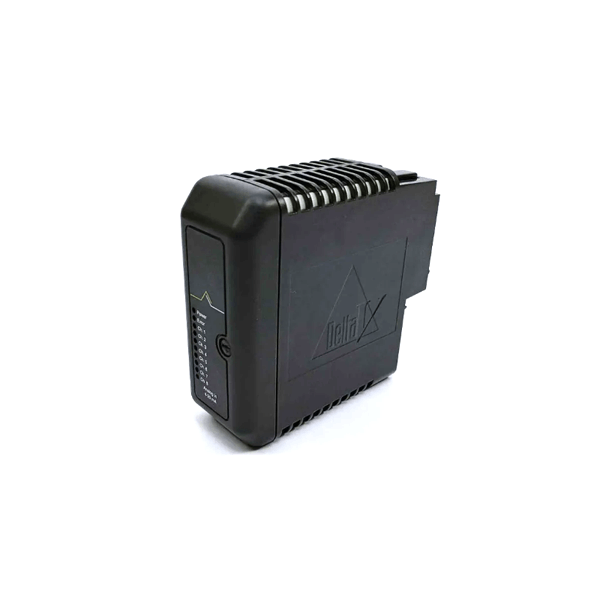

The Emerson KJ3002X1-BC1 12P0681X092 is an 8-channel analog input module designed for the DeltaV Distributed Control System (DCS). It interfaces with analog sensors, converting their signals into digital data for process automation and safety systems. ​

Technical Specifications

Applications

The Emerson KJ3002X1-BC1 module is widely used in various industries for process automation and control:​

• Chemical and Petrochemical Plants: Monitoring temperature, pressure, and flow rates.​

• Power Generation Facilities: Measuring voltage, current, and other electrical parameters.​

• Oil and Gas Industry: Tracking levels, densities, and compositions.​

• Water and Wastewater Treatment Plants: Assessing pH, conductivity, and turbidity.​

Advantages

• High Accuracy: Provides precise measurement of analog signals, ensuring reliable data for control systems.​

• Compact Design: Small footprint allows for efficient use of cabinet space.​

• Robust Construction: Designed to withstand harsh industrial environments with shock and vibration resistance.​

• Easy Integration: Seamlessly integrates with the DeltaV DCS, simplifying system configuration.​

• Certified Quality: Meets CE standards for safety and performance.​

Frequently Asked Questions (FAQ)

1. What is the primary function of the KJ3002X1-BC1 module?

   • It serves as an analog input module, converting 4–20 mA signals from field devices into digital data for the DeltaV DCS.​

2. How many input channels does this module support?

   • The module supports 8 analog input channels.​

3. What type of input signals are compatible with this module?

   • It is designed for 4–20 mA analog input signals.​

4. Can this module operate in extreme temperatures?

   • Yes, it operates within a temperature range of 0°C to 60°C.​

5. Is the KJ3002X1-BC1 compatible with other DeltaV modules?

   • Yes, it integrates seamlessly with other modules in the DeltaV system.​

6. What are the dimensions and weight of the module?

   • The module measures 51 x 102 x 102 mm and weighs 0.181 kg.

7. Does the module have any certifications?

   • Yes, it is CE-certified, ensuring compliance with safety and performance standards.​

8. What is the power requirement for this module?

   • It requires 12 VDC at 150 mA for local bus power and 24 VDC at 32 mA for the field circuit.​

9. Can the module withstand industrial environmental conditions?

   • Yes, it is designed to resist shock (10g ½ Sinewave for 11 msec) and vibration (1mm Peak to Peak from 5 to 16Hz; 0.5g from 16 to 150Hz).​

10. Is there any special installation requirement for this module?

    • The module should be installed in accordance with DeltaV system guidelines to ensure proper operation and integration.
