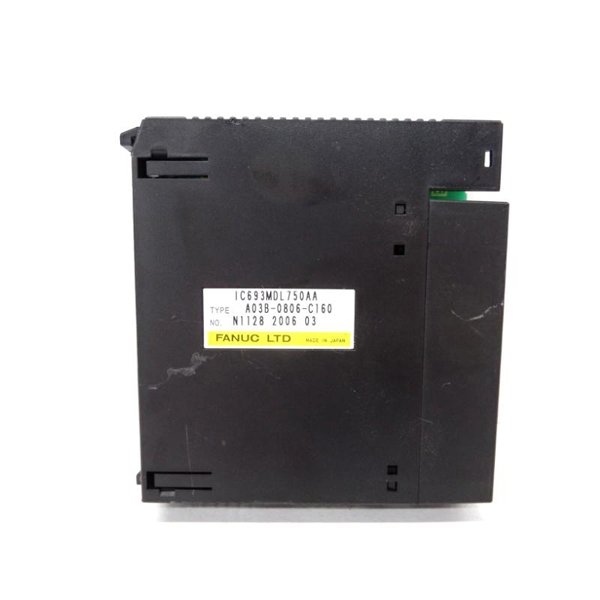

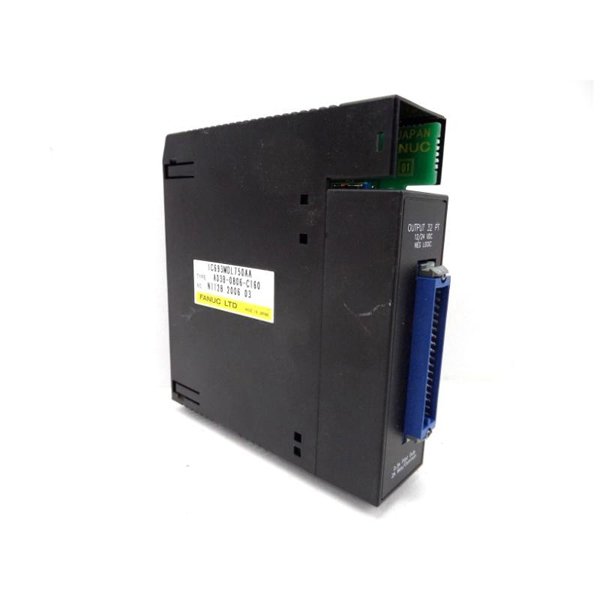

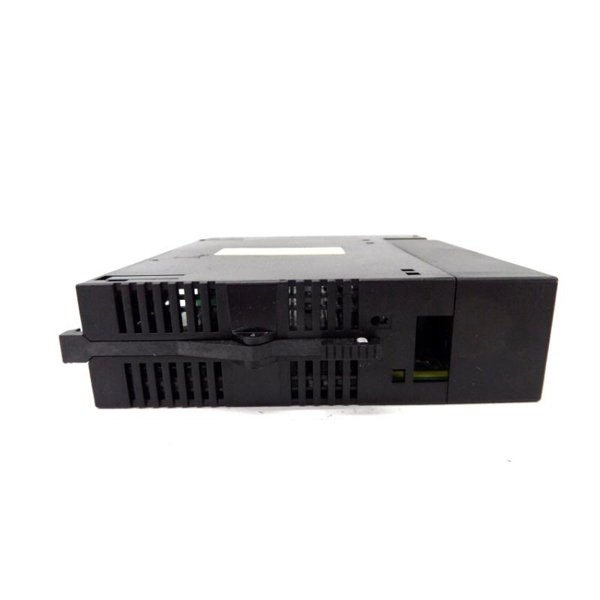

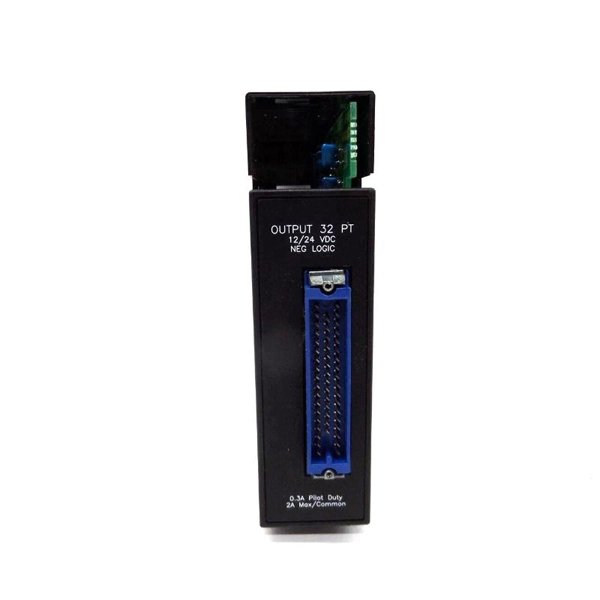

General Electric IC693MDL750 Series 90-30 Negative Logic Output Module
Manufacturer:GE
Product Number:IC693MDL750
Product Type:Negative Logic Output Module
Origin:USA
Dimensions:142 x 30 x 130 mm
Weight:0.25 kg
Views:44
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The GE IC693MDL750 is a 32-point negative logic DC output module designed for the Series 90-30 PLC systems. This module provides an efficient means of controlling a wide range of DC devices by sinking current to the load, making it suitable for applications requiring fast switching and reliable digital control. Each of the 32 outputs is grouped into four isolated groups of eight, allowing flexible integration into various industrial systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | DC Output Module (Negative Logic) |
| Output Points | 32 |
| Output Type | Sinking (Negative Logic) |
| Voltage Range | 5 to 30 VDC |
| Output Current | 0.5 A per point, 4 A per group max |
| Isolation | 500V between field side and logic side |
| Response Time | Off to On: 0.1 ms, On to Off: 0.1 ms |
| Internal Power Consumption | 135 mA @ 5 VDC |
| Connector Type | 50-pin female (HE10 type) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (W x H x D) | 142 x 30 x 130 mm |
| Weight | 0.25 kg |
Applications
-
Industrial automation systems
-
Digital control of relays, solenoids, and lamps
-
Assembly line and conveyor systems
-
Machine control systems
-
Packaging and material handling systems
-
Building automation interfaces
Advantages
-
High-density 32-point output in a compact module
-
Fast response suitable for time-critical operations
-
Electrically isolated groups enhance system protection
-
Low power consumption
-
Designed for seamless integration with GE Series 90-30 PLCs
-
Reduces wiring complexity with grouped output configuration
Frequently Asked Questions (FAQ)
Q1: What type of logic does the IC693MDL750 use?
A1: It uses negative logic (sinking) outputs.
Q2: Can I connect this module directly to inductive loads?
A2: Yes, but external suppression (snubber or diode) is recommended.
Q3: How are the outputs grouped?
A3: The 32 outputs are divided into 4 groups of 8, each group isolated from the others.
Q4: What is the maximum current for each group?
A4: Each group can handle up to 4 A total current.
Q5: Is the IC693MDL750 hot-swappable?
A5: No, the module is not hot-swappable. Power must be off during installation/removal.
Q6: What is the recommended wire gauge for connections?
A6: Typically, 18 to 24 AWG wires are recommended for signal connections.
Q7: Does it support diagnostic LEDs?
A7: Yes, each output point has an LED for status indication.
Q8: What connector is used on this module?
A8: A 50-pin female HE10 connector is used.
Q9: Can it be used with other GE modules in the same rack?
A9: Yes, it is fully compatible with other Series 90-30 modules.
Q10: What is the output voltage range supported?
A10: The module supports 5 to 30 VDC output voltage.
