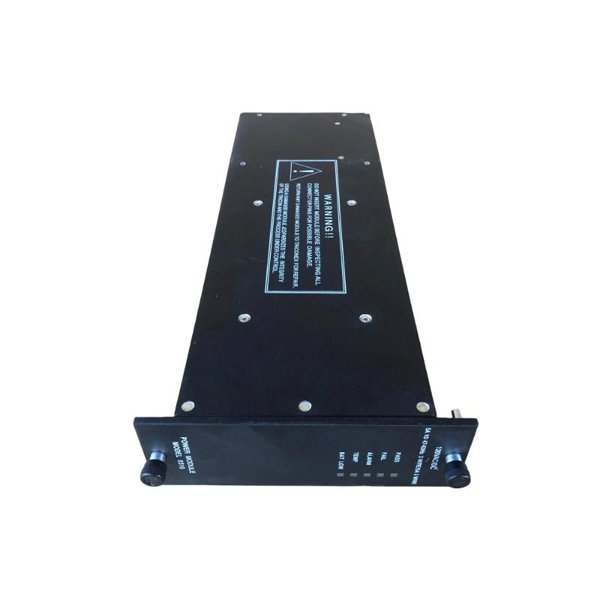

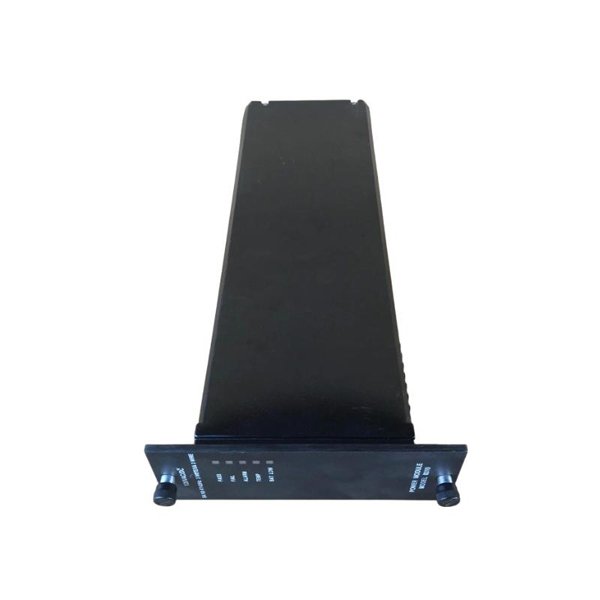

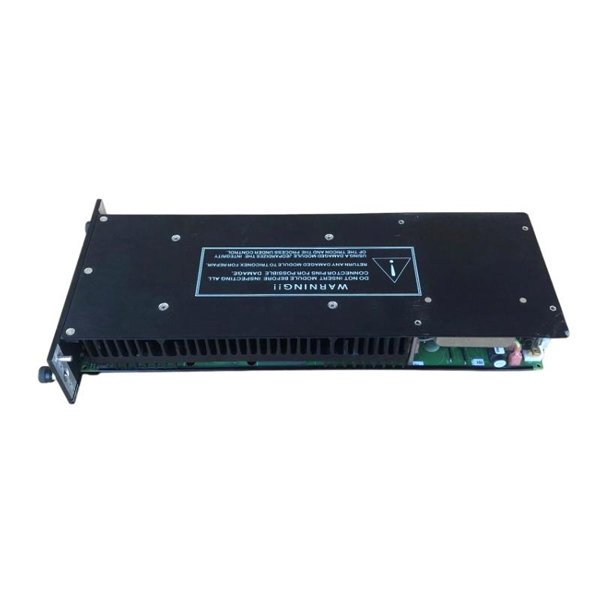

Triconex 3000600-601 Power Supply Module

The Triconex 3000600-601 Power Supply Module is a high-reliability, industrial-grade power supply specifically designed to provide consistent and stable DC power to Triconex 3000 series safety system modules. Ensuring uninterrupted power delivery is critical in safety-critical applications, where loss of power can compromise system integrity and operational safety.

This module converts standard AC input voltage into regulated 24 VDC output to support CPUs, I/O modules, and other connected devices within the Triconex safety network. Its design includes redundancy features and monitoring capabilities that allow continuous operation even in the event of a component fault. The 3000600-601 is widely used in environments such as oil and gas, petrochemical, power generation, and chemical processing facilities, where maintaining constant power to safety systems is vital.

Engineered for robustness and reliability, the module features advanced diagnostics, thermal management, and protection against overvoltage, overload, and short-circuits, providing operational continuity and reducing downtime risks.

Product Specifications

Applications

The 3000600-601 Power Supply Module is used in multiple industrial and safety-critical applications:

• Oil and Gas Platforms – Provides continuous power to CPUs and I/O modules in emergency shutdown (ESD) systems.

• Petrochemical Plants – Supports safety instrumented systems (SIS) requiring reliable 24 VDC supply.

• Power Generation Facilities – Powers turbine trip circuits, boiler safety controls, and auxiliary systems.

• Chemical Processing Plants – Supplies reliable power to valve controllers, flow sensors, and safety interlocks.

• Mining and Metals – Maintains power to critical equipment monitoring and shutdown circuits.

• Nuclear and High-Safety Facilities – Ensures uninterrupted power for SIL-rated systems and safety controllers.

Advantages

The Triconex 3000600-601 Power Supply Module offers several operational and technical benefits:

• High Reliability – Provides stable DC output to all Triconex 3000 modules, even under industrial stress conditions.

• Redundant Configuration Support – Can be configured in N+1 redundancy to ensure uninterrupted system operation.

• Advanced Protection – Features overload, short-circuit, overvoltage, and thermal protection for safe operation.

• High Efficiency – Optimized for minimal power loss and reduced heat generation.

• Seamless Integration – Fully compatible with Triconex 3000 series CPUs and I/O modules.

• Easy Maintenance – Modular design allows replacement or upgrade without disrupting the safety system.

• Continuous Diagnostics – Provides fault indicators and monitoring for predictive maintenance and troubleshooting.

FAQ

1. What is the input voltage range for the 3000600-601?

   It operates on 85–264 VAC, 47–63 Hz input voltage.

2. What DC output voltage does it provide?

   It provides a regulated 24 VDC output with ±1% tolerance.

3. Can this module be used in redundant configurations?

   Yes, it supports N+1 redundancy for uninterrupted operation.

4. How is the module protected against electrical faults?

   It includes overload, short-circuit, overvoltage, and thermal shutdown protections.

5. Is it compatible with all Triconex 3000 series modules?

   Yes, it is fully compatible with CPUs, I/O modules, and other 3000 series devices.

6. What is the maximum output current of the module?

   It can supply up to 10 A DC to connected devices.

7. Does it require forced-air cooling?

   It can operate with convection cooling; forced-air is optional for high ambient temperatures.

8. How does the module indicate a fault or abnormal condition?

   Fault conditions are indicated through dedicated LED status indicators and optional system monitoring.

9. Can it operate in high-humidity environments?

   Yes, it is designed for 5% to 95% relative humidity, non-condensing.

10. Does the module support continuous operation in industrial temperature ranges?

    Yes, it is rated to operate continuously from 0°C to 60°C.
