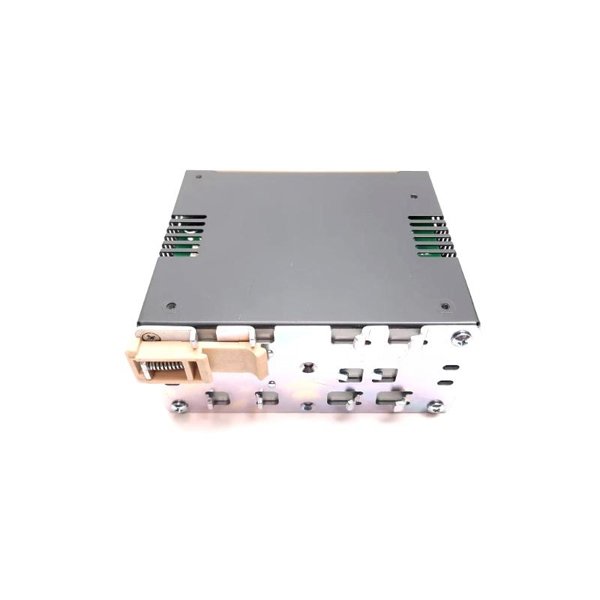

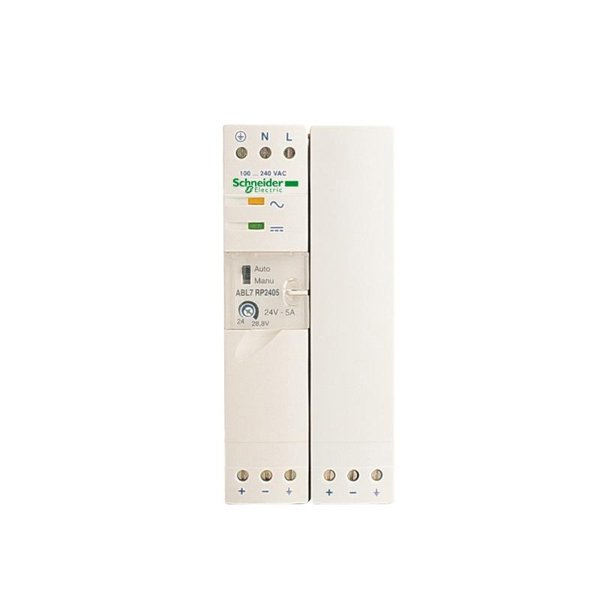

Schneider ABL7RP2405 Switching Power Supply

The Schneider Electric ABL7RP2405 is a robust and reliable switching power supply designed to meet the needs of industrial applications. It is part of the ABL7 series, known for its efficiency, versatility, and compact design. This power supply is engineered to ensure consistent and stable output in environments that demand high performance and minimal downtime. Whether used in automation, control systems, or other industrial applications, the ABL7RP2405 offers excellent power distribution with high reliability.

Specifications

The specifications of the ABL7RP2405 Switching Power Supply are as follows:

Applications

The Schneider ABL7RP2405 is used in a variety of industrial applications that require stable and efficient power supply. Some of the typical applications include:

• Industrial Automation: Powers control systems, sensors, and actuators in factory automation.

• Process Control: Supports power needs in chemical, food, and beverage processing plants.

• Building Management: Used in HVAC (heating, ventilation, and air conditioning) systems for power distribution.

• Robotics: Provides the necessary power for robotic systems, ensuring smooth operation in manufacturing processes.

• Control Cabinets: Integrated into control cabinets for various industrial machines and devices.

Advantages

1. High Efficiency: With an efficiency rating of 90%, the ABL7RP2405 ensures minimal energy loss, making it a cost-effective solution for long-term use.

2. Compact Design: Its compact size allows for easy installation in control panels and tight spaces.

3. Wide Input Voltage Range: Supports a wide input voltage range (90-264V AC), making it ideal for use in diverse global markets.

4. Reliable Protection Features: Equipped with multiple protection features like overload, overvoltage, and short-circuit protection to ensure safety and longevity.

5. Long Life Cycle: With a MTBF of 100,000 hours, it offers long-term durability and reduces the need for frequent replacements.

6. Environmental Resistance: The power supply operates in a wide temperature range (-10°C to +60°C), making it suitable for different industrial environments.

7. Ease of Installation: Designed for DIN rail mounting, the ABL7RP2405 is easy to install and integrate into existing systems.

8. Versatile Applications: Suitable for various industrial applications, from automation to HVAC systems, providing a universal solution for many sectors.

Frequently Asked Questions (FAQ)

1. What is the input voltage range of the ABL7RP2405 power supply?

   • The ABL7RP2405 can operate with an input voltage range of 90–264V AC.

2. What is the output voltage of the ABL7RP2405?

   • It provides a 24V DC output with ±1% accuracy.

3. What is the output power rating of the ABL7RP2405?

   • The ABL7RP2405 delivers a power output of 120W.

4. How efficient is the ABL7RP2405?

   • The power supply has an efficiency of up to 90%.

5. What are the dimensions of the ABL7RP2405?

   • The power supply measures 90mm in width, 130mm in height, and 120mm in depth.

6. What is the weight of the ABL7RP2405?

   • The ABL7RP2405 weighs 0.798 kg.

7. Can the ABL7RP2405 be used in extreme temperatures?

   • Yes, it operates within a temperature range of -10°C to +60°C.

8. What certifications does the ABL7RP2405 have?

   • It is CE certified, UL listed, and meets EN60950 and UL508A standards.

9. Is the ABL7RP2405 suitable for robotic applications?

   • Yes, the ABL7RP2405 is commonly used in robotic systems, providing stable power for robotic arms and control systems.

10. How does the ABL7RP2405 handle overload conditions?

• The ABL7RP2405 includes overload protection, ensuring safe operation even during fault conditions.
