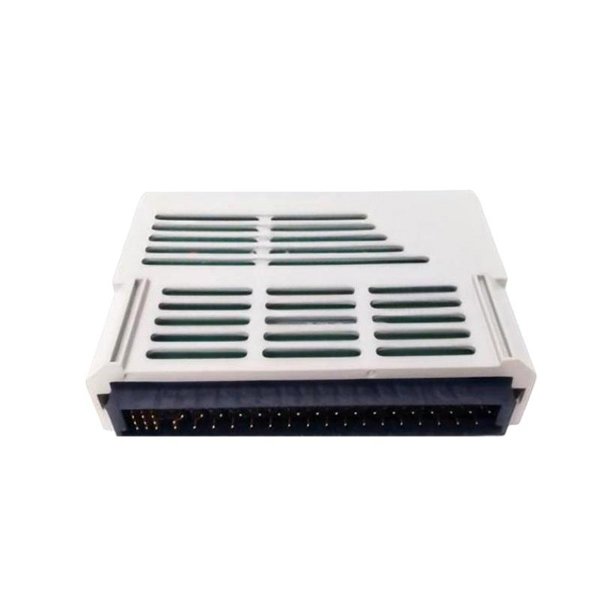

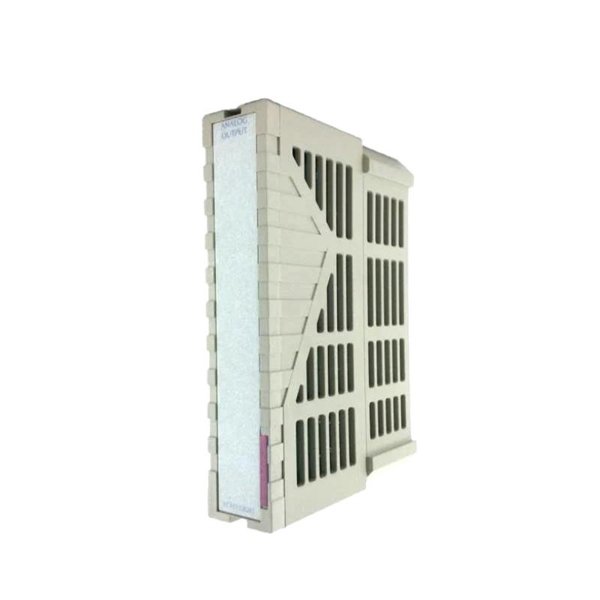

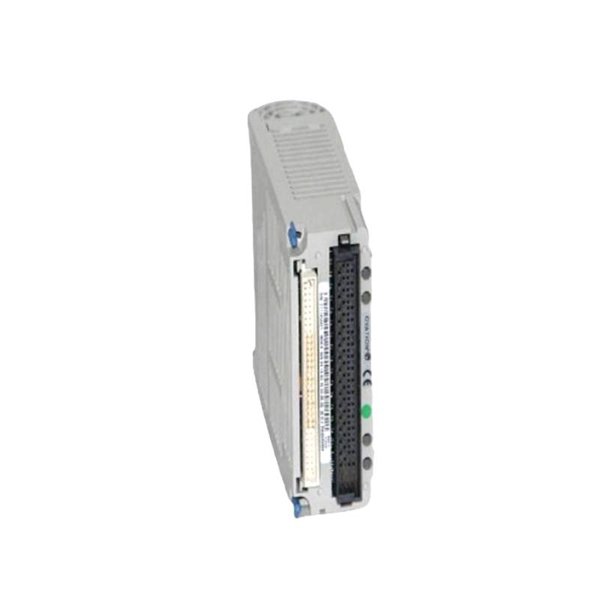

Ovation 1C31132G01 Analog Output Module

The Ovation 1C31132G01 Analog Output Module is a critical component designed for seamless integration within the Ovation Distributed Control System (DCS). This module converts digital control signals into precise analog outputs, enabling the accurate control of field devices such as valves, actuators, and control valves in industrial processes.

Equipped with multiple analog output channels, the 1C31132G01 ensures dependable performance, accuracy, and signal integrity in complex automation environments. It is specifically engineered for heavy industrial applications including power generation, chemical processing, and water treatment, where reliable and consistent analog signal output is essential for maintaining process control and safety.

Product Specifications

Applications

• Power Generation: Controls turbine valves, excitation systems, and other analog-controlled equipment for stable operation.

• Oil & Gas: Regulates flow control valves, pump speeds, and other analog actuators in refineries and pipelines.

• Chemical Industry: Manages analog control for critical process variables such as flow, pressure, and temperature.

• Water & Wastewater Treatment: Provides accurate analog signals for chemical dosing and process control systems.

• Manufacturing: Controls variable-speed drives, robotic actuators, and other devices requiring analog input.

• Building Automation: Used to regulate HVAC systems, lighting dimmers, and environmental controls.

Advantages

• Superior Accuracy: Delivers precise analog output with minimal error, supporting fine process control.

• Robust Isolation: Ensures electrical isolation between channels to reduce noise and protect system integrity.

• Dual Signal Compatibility: Supports both voltage and current analog outputs, increasing flexibility.

• Compact Design: Fits into standard Ovation racks with efficient space utilization.

• Fast Response: Responds swiftly to control system changes, enabling dynamic process adjustments.

• Industrial-Grade Reliability: Built to withstand harsh environmental conditions and continuous operation.

• Maintenance Friendly: Easy to swap or upgrade without extensive downtime.

• Energy Efficient: Designed to operate with low power consumption, reducing heat and energy costs.

Frequently Asked Questions (FAQ)

1. What output signals does the 1C31132G01 support?

   It supports 4-20 mA current and 0-10 V voltage analog outputs.

2. How many output channels does the module have?

   The module includes 8 analog output channels.

3. What is the accuracy level of the outputs?

   Outputs are accurate within ±0.05% of full scale.

4. Is there isolation between output channels?

   Yes, galvanic isolation is provided channel-to-channel.

5. What are the module’s physical dimensions and weight?

   Dimensions are 25.4 x 273 x 267 mm, and it weighs 0.454 kg.

6. What power supply does this module require?

   The module requires a nominal 24 V DC power supply.

7. What operating temperatures can the module tolerate?

   It operates effectively between -20°C and +70°C.

8. Can it be used in harsh industrial environments?

   Yes, it is designed for reliable operation in demanding conditions.

9. What communication interface does the module use?

   It connects via the Ovation backplane bus interface.

10. Is the module easy to install and replace?

    Yes, it is designed for simple plug-and-play installation.
