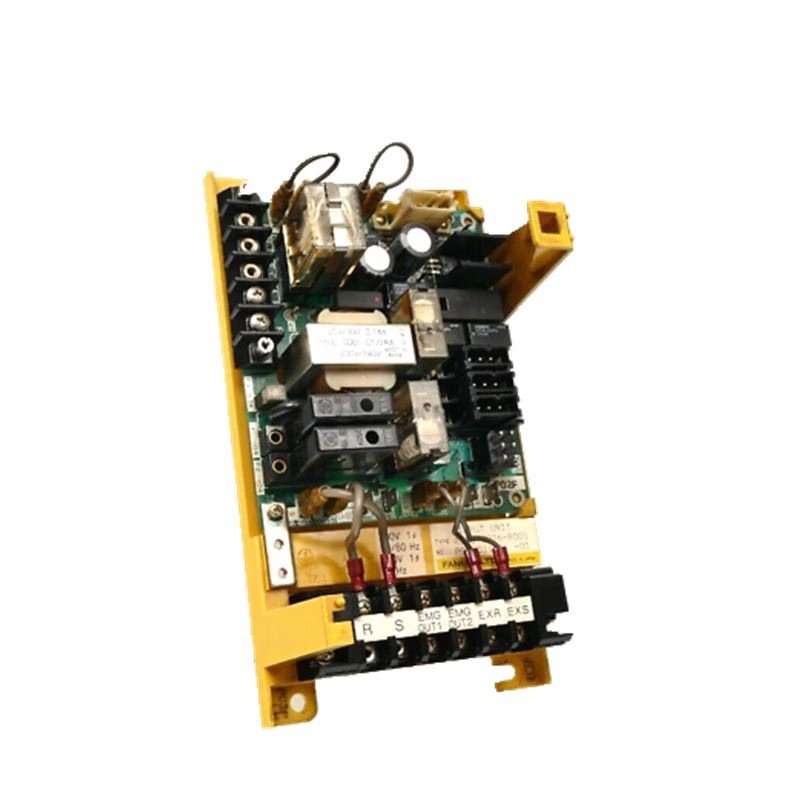

GE Fanuc A14B-0076-B001-01 Input Power Unit

The Fanuc A14B-0076-B001 is an Input Power Unit (I/P Unit) designed for GE Fanuc CNC systems, particularly for models FS-0A, 0B, and some 15A systems. It functions as the relay stage to the main power supply, controlling the switching on and off of power to CNC machines like lathes, EDMs, and machining centers. The unit is equipped with a 200-220 VAC input voltage and integrates a A16B-1600-0090 PCB for reliable switching control. The design includes a yellow plastic frame, which distinguishes it from previous versions that used anodized metal.

Technical Specifications

• Manufacturer: GE Fanuc (now part of FANUC Corporation)
• Part Number: A14B-0076-B001-01
• Product Type: Input Power Unit (I/P Unit)
• Platform Compatibility: GE Fanuc CNC systems (FS-0A, FS-0B, and some 15A models)
• Input Voltage: 200-220 VAC
• Function: Power supply switching and monitoring
• PCB Included: A16B-1600-0090
• Connectors:
  • Three 3-pin black male sockets (CP3, CP4, CP5)
  • One 3-pin white male socket
  • One 6-pin male connector (CP2)
• Operating Temperature: -20°C to +60°C
• Dimensions: 5.0 in x 9.0 in x 3.3 in (12.7 cm x 22.9 cm x 8.4 cm)
• Weight: 1 lbs 9.1 oz (0.7 kg)
