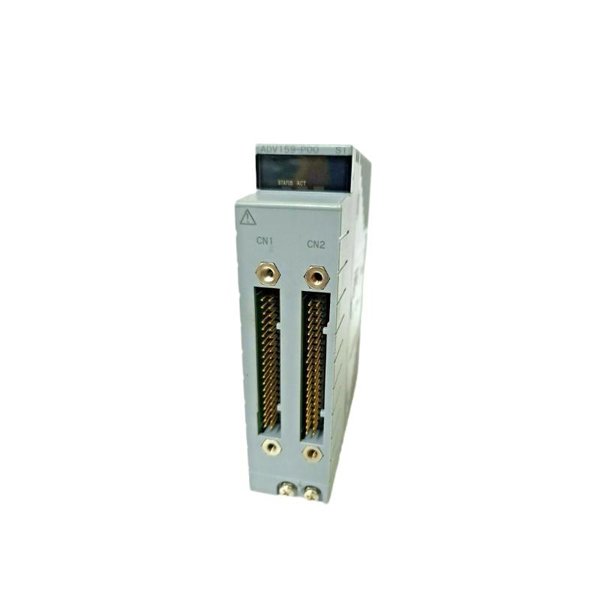

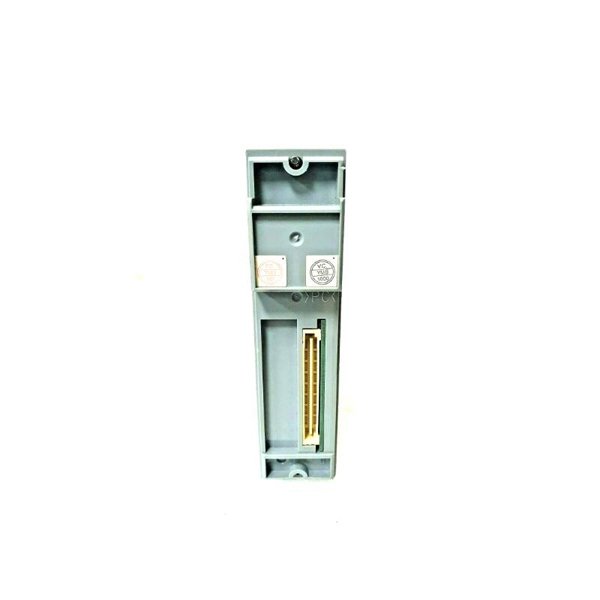

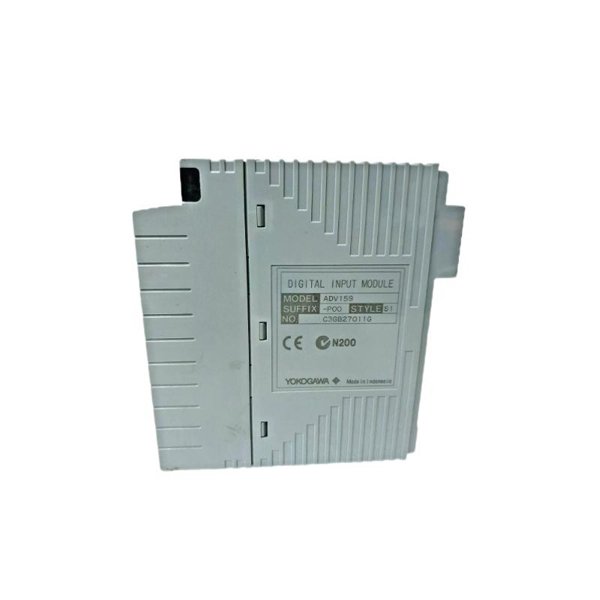

Yokogawa ADV159-P00 Digital Input Module

The Yokogawa ADV159-P00 is a high-performance Digital Input Module designed for industrial automation and process control systems. As part of Yokogawa’s CENTUM VP and ProSafe-RS series, it plays a crucial role in receiving and processing digital signals from field devices such as switches, sensors, and relay contacts.

This module is engineered to provide reliable and precise signal acquisition in harsh industrial environments, ensuring seamless communication between field instrumentation and control systems. With high-speed processing, robust noise immunity, and fault detection features, the ADV159-P00 enhances system reliability and operational efficiency.

The module is widely used in Distributed Control Systems (DCS), Safety Instrumented Systems (SIS), and other industrial automation platforms to support real-time monitoring and control.

Product Specifications

Applications

The Yokogawa ADV159-P00 Digital Input Module is widely utilized in various industrial and automation environments, offering reliable signal acquisition and processing.

1. Distributed Control Systems (DCS) – Used in Yokogawa’s CENTUM VP and similar DCS platforms for real-time monitoring and control.

2. Safety Instrumented Systems (SIS) – Integrated into ProSafe-RS safety systems for emergency shutdowns, interlocks, and fail-safe operations.

3. Power Plants – Used in nuclear, thermal, and renewable energy sectors for digital signal acquisition from field sensors and protection relays.

4. Oil & Gas Industry – Ensures safe and efficient operation of refineries, offshore platforms, and petrochemical plants.

5. Chemical Processing – Supports batch processing, reactor control, and safety automation in chemical manufacturing plants.

6. Water & Wastewater Treatment – Monitors pump stations, valves, and filtration systems in municipal and industrial water facilities.

7. Pharmaceutical Industry – Used in GMP-compliant automation for precise control of manufacturing processes and environmental monitoring.

8. Manufacturing & Robotics – Enables factory automation, conveyor belt control, and machine safety monitoring.

Advantages

The ADV159-P00 Digital Input Module offers several advantages, making it an essential component in modern industrial automation.

1. High Reliability – Designed for 24/7 continuous operation in critical industrial environments.

2. Fast Response Time – With a response time of ≤ 5 ms, it ensures accurate and real-time digital signal processing.

3. Fault Detection – Built-in diagnostics for open circuits, short circuits, and input signal failures.

4. Optical Isolation – Provides superior noise immunity and electrical isolation to protect against voltage spikes and surges.

5. Energy Efficient – Consumes low power (<5W), reducing overall system power requirements.

6. Robust Design – Compliant with harsh industrial conditions (-20°C to +70°C, 5% – 95% humidity).

7. Wide Compatibility – Works with various Yokogawa control platforms, including CENTUM VP and ProSafe-RS.

8. Compact and Lightweight – Saves cabinet space while ensuring high-density I/O integration.

9. Industrial-Grade Certifications – Compliant with CE, UL, CSA, RoHS, and ATEX for global applications.

10. Seamless Integration – Supports various fieldbus communication protocols, ensuring compatibility with existing automation systems.

Frequently Asked Questions (FAQ)

1. What is the primary function of the Yokogawa ADV159-P00 module?

   It is a 16-channel digital input module designed for monitoring and processing digital signals in industrial automation systems.

2. Which Yokogawa systems are compatible with this module?

   It is compatible with CENTUM VP, ProSafe-RS, and other Yokogawa control systems.

3. What is the response time of the ADV159-P00?

   The response time is ≤ 5 ms, ensuring fast and accurate data acquisition.

4. What type of input signals does this module support?

   It supports dry contact and voltage input signals (24V DC nominal).

5. Does the module include fault detection features?

   Yes, it has built-in diagnostics for open circuits, short circuits, and signal loss.

6. What kind of isolation is used in this module?

   The module uses optical isolation to protect against electrical noise and surges.

7. What is the operating temperature range?

   The module operates between -20°C to +70°C, making it suitable for harsh industrial environments.

8. Can this module be used in safety applications?

   Yes, it is designed for use in Safety Instrumented Systems (SIS) like ProSafe-RS.

9. What certifications does this module have?

   It is CE, UL, CSA, RoHS, and ATEX certified for industrial applications.

10. How much does the module weigh?

    The module weighs 0.4 kg.
