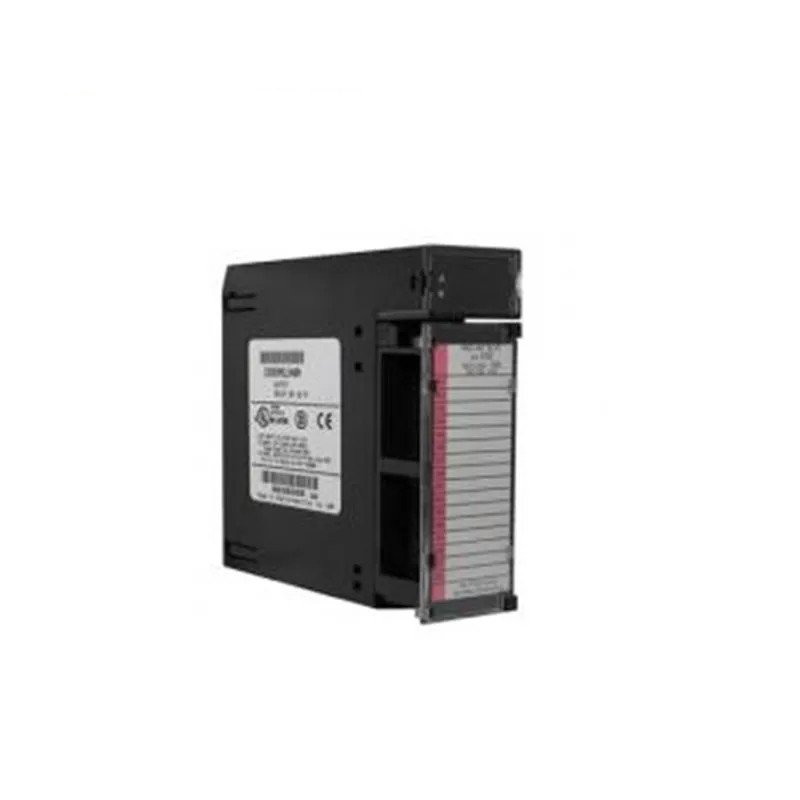

GE Fanuc DS3820PS7A1B1C I/O Module

The GE Fanuc DS3820PS7A1B1C is a digital input/output (I/O) module tailored for industrial automation systems. It offers a versatile combination of digital inputs and outputs, enabling connections to a range of field devices and sensors.

Key Features and Functions

• DC-DC Conversion: The module converts a higher DC voltage into a lower, regulated DC voltage.
• Power Supply: It provides stable power to components in industrial automation systems.
• Modular Design: You can easily integrate it into different industrial control systems.
• High Efficiency: It converts power with minimal energy loss, ensuring efficient operation.
• Reliability: The design suits rugged industrial environments and long-term use.

Typical Applications

• PLC Power: It supplies power to PLCs and other control devices.
• I/O Module Power: It powers input/output modules interfacing with sensors and actuators.
• HMI Power: It delivers power to HMIs, enabling operator interaction with the system.
• Motion Control Systems: The module supplies power to servo drives and motion control components.

Technical Specifications

• Input Voltage: The range typically falls between 24V DC and 48V DC.
• Output Voltage: It offers output configurations like 5V DC, 12V DC, or 24V DC.
• Output Current: The maximum output current depends on the model.
• Efficiency: The module often exceeds 80% efficiency.
• Mounting: It can be mounted on a DIN rail or a panel for easy installation.
