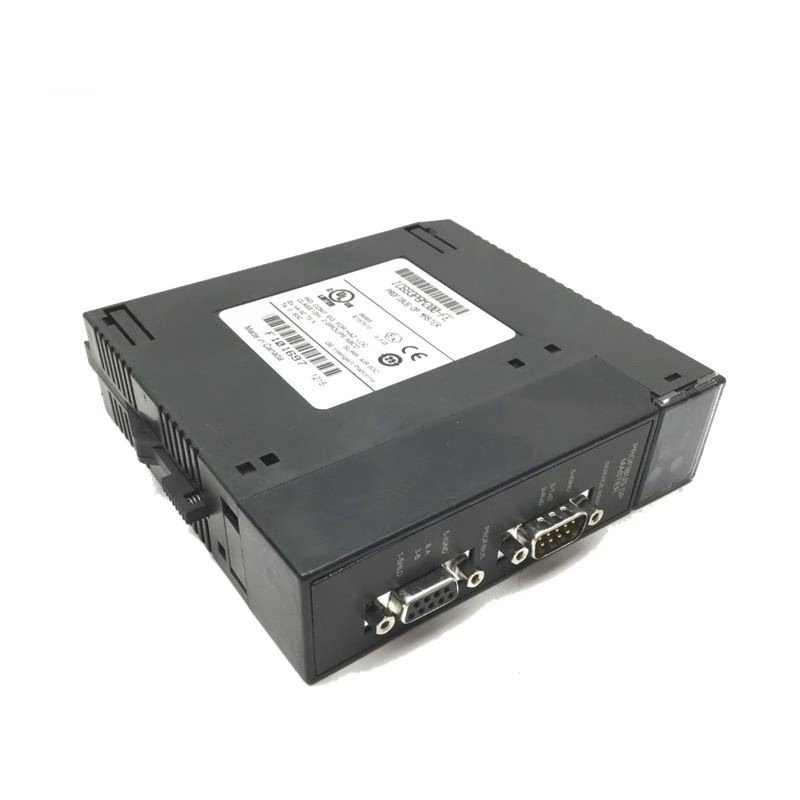

GE Fanuc IC693PBM200-FE Profibus DP Master Module

The GE Fanuc IC693PBM200-FE is a Profibus DP Master Module designed to interface with GE Fanuc Series 90-30 PLCs. It enables the PLC to function as a master on a Profibus DP network, allowing communication with multiple Profibus DP slave devices such as I/O modules, drives, and other automation equipment. The module is designed to integrate seamlessly with Series 90-30 systems, offering reliable communication and control in industrial automation environments.

Technical Specifications

• Module Type: Profibus DP Master Module
• Communication Ports:
  • RS-485
  • RS-232
• Local Logic: 20 Kbytes of optional local logic
• Flash Memory: 10 Mbytes for user data storage
• Battery: Battery-backed Real-Time Clock
• Firmware: In-system upgradeable
• Backplane Support: Dual support for RX3i PCI and 90-30 Serial
• Protocol Support:
  • SNP
  • Modbus Slave
  • Serial I/O
  • Modbus Master
• Data Exchange: Ethernet Global Data (EGD)
• Communication Services: TCP/IP via SRTP
• Power Requirements:
  • Current Draw: 450 mA @ 5VDC (typical)
• Network Capabilities:
  • Number of Supported DP Slaves: 125
  • Data Rates: 9.6K, 19.2K, 93.75K, 187.5K, 500K, 1.5M, 3M, 6M, 12M Baud
• Data Handling:
  • Input Data: 244 Bytes
  • Output Data: 244 Bytes
• Environmental Specifications:
  • Operating Temperature: 0 to 60°C
  • Mounting Location: Any Series 90-30 Baseplate
• Diagnostic Features:
  • Slave Status Bit Array
  • Network diagnostic counters
  • DP master diagnostic counters
  • Slave diagnostic address
