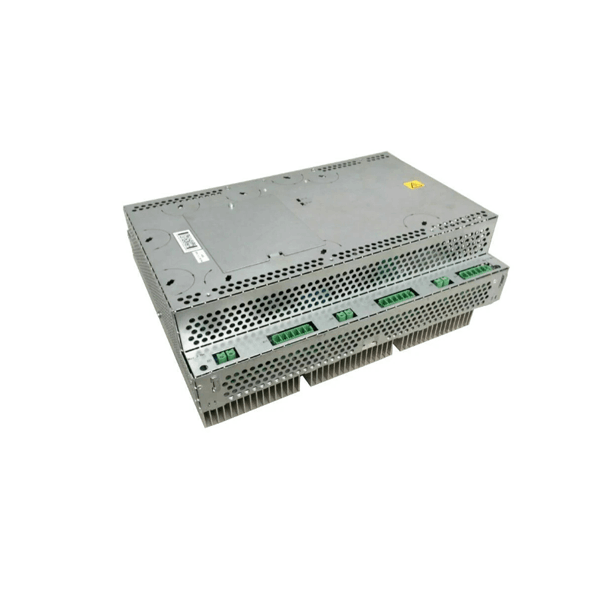

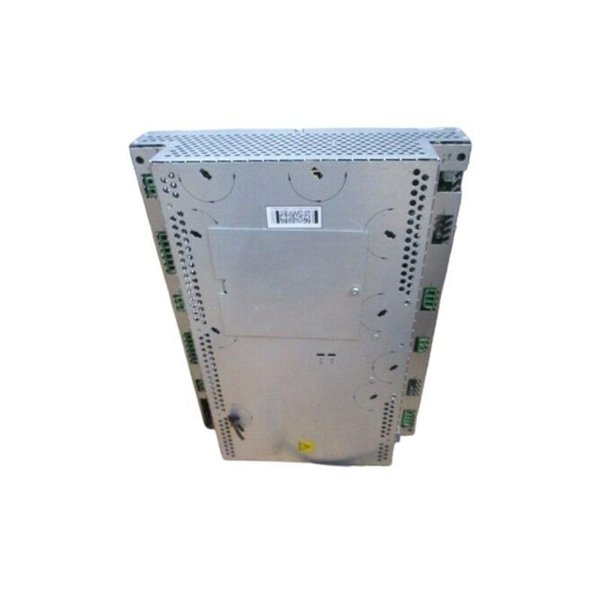

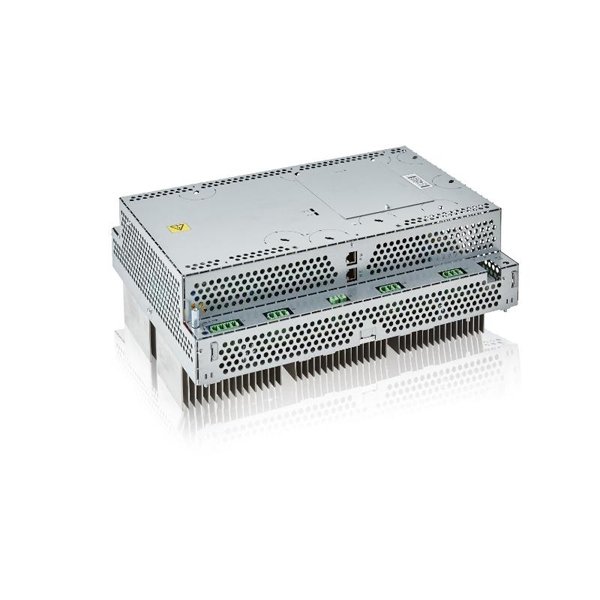

ABB DSQC 663 3HAC029818-001 Robot servo drive unit

The ABB DSQC 663 3HAC029818-001 is a high-performance axis control unit designed for use within ABB’s industrial robotics systems, particularly in the IRC5 robot controller platform. Acting as a critical interface between the main controller and the robot’s servo drives, it enables precise control of multiple motion axes. With robust architecture and proven reliability in harsh industrial environments, the DSQC 663 is engineered for long-term performance in demanding applications.

It plays a central role in orchestrating robotic arm movement, ensuring high-speed synchronization and accurate feedback across various axes. As a plug-in board, it also allows for modular expansion and easy replacement in ABB robot control cabinets.

Product Advantages

• Precision Control: Offers high-resolution signal processing for coordinated multi-axis motion control.

• Reliable Feedback Integration: Facilitates communication with resolver/encoder feedback systems for real-time positioning.

• Industrial Durability: Designed to endure vibration, temperature fluctuations, and electrical noise in factory environments.

• Plug-and-Play Replacement: Designed for quick integration into ABB’s IRC5 controller with minimal configuration.

• Diagnostics Support: Built-in diagnostic LEDs and intelligent feedback circuits enable easy troubleshooting.

• Compatibility: Fully compatible with a range of ABB robots including the IRB 2400, IRB 4600, and others using the IRC5 controller.

Technical Specifications

Product Applications

• Industrial Robotics: Key component in controlling articulated robotic arms across manufacturing lines.

• Automated Welding Cells: Coordinates movement across multiple axes for precision welding tasks.

• Material Handling Systems: Supports synchronized motion in pick-and-place and palletizing applications.

• CNC and Machining Robots: Ensures high-speed control for robotic milling, cutting, and assembly processes.

• Packaging Automation: Enables repeatable, accurate motion for high-throughput packaging lines.

Compatible/Paired Models

• ABB IRC5 Controller Mainframe

• DSQC 679 Axis Computer (alternative axis board)

• DSQC 608 Drive Units

• DSQC 679/679A Signal Interface

• IRB Series Robots: IRB 2400, IRB 4600, IRB 6600

• DSQC 601 I/O Boards

Installation Instructions

1. Power Down the System: Ensure all power to the controller is turned off before installation.

2. Discharge Static Electricity: Use an ESD wrist strap before handling the PCB.

3. Insert Into Slot: Carefully slide the DSQC 663 board into the designated slot on the IRC5 controller backplane.

4. Secure the Board: Confirm that it clicks into position and fasten any necessary retention screws.

5. Reconnect Cables: Connect any encoder or resolver feedback cables as specified in the wiring diagram.

6. System Boot and Test: Restore power, boot the controller, and verify board recognition via the robot teach pendant or control software.

7. Run Diagnostics: Use ABB RobotStudio or IRC5 diagnostics to validate operation.

FAQs

Q1: What is the main function of the ABB DSQC 663 board?

A1: It serves as the axis control board in ABB’s IRC5 system, managing motion control across robotic joints.

Q2: Can I use this board in the older S4C+ controllers?

A2: No, the DSQC 663 is specifically designed for the IRC5 system and is not backward compatible with S4C+.

Q3: How do I know if my DSQC 663 board is faulty?

A3: Common indicators include axis motion errors, blinking status LEDs, or failure of robot axes to initialize.

Q4: Is it possible to replace the DSQC 663 by myself?

A4: Yes, it is a modular board. However, ABB recommends certified personnel due to safety and calibration procedures.

Q5: Does this board control all axes simultaneously?

A5: It handles multiple axes based on robot configuration, typically up to 6, depending on the system setup.

Q6: What is the difference between DSQC 663 and DSQC 679?

A6: Both are axis control boards, but DSQC 679 includes additional diagnostic functions and is used in extended applications.

Q7: Is this board refurbished or new when purchased from third-party suppliers?

A7: It depends on the vendor. Always request condition reports; some units are reconditioned, others are new old stock.

Q8: Can I use it with IRB 120 robots?

A8: No, the IRB 120 typically uses different compact control systems; DSQC 663 is more suited for mid to large robots.

Q9: What if the firmware version doesn’t match the controller?

A9: Firmware mismatch may result in boot errors. ABB service tools or updates may be needed to align versions.

Q10: Is DSQC 663 still in production?

A10: It is being phased out in newer systems but remains widely available through ABB channels and aftermarket suppliers.
