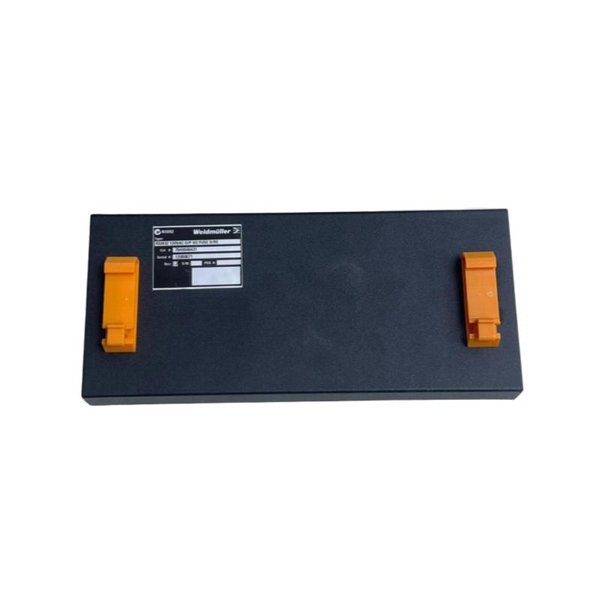

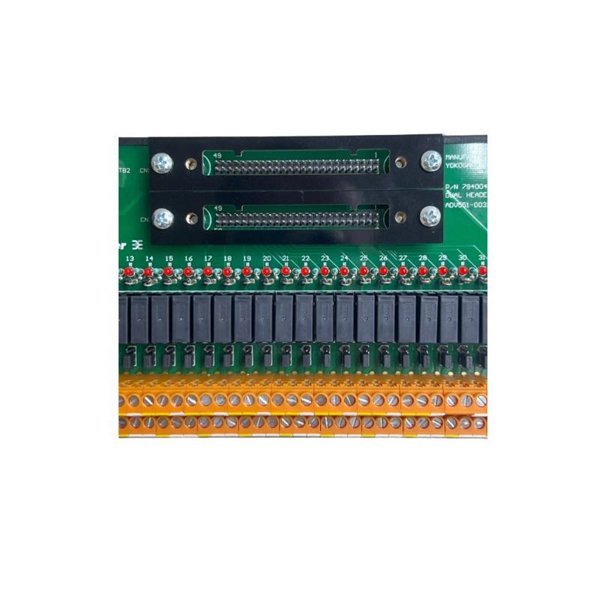

Yokogawa ADV551-D032 Discrete Output Module

The Yokogawa ADV551-D032 is a discrete output module that is part of the Yokogawa Centum VP and ProSafe-RS systems. It is designed for industrial automation environments that require reliable and fast control of digital outputs. This module provides high-performance discrete signal outputs, ensuring that automation systems receive timely and accurate control signals for actuators, valves, relays, and other field devices.

The ADV551-D032 module is built to handle a variety of output types and provides excellent signal processing capabilities. With its 150 x 325 mm dimensions and a weight of 0.5 kg, the module is compact enough to be easily integrated into existing control systems. The module is suitable for various industries including oil and gas, chemical, power, and manufacturing where quick response times and high reliability are critical.

This discrete output module supports 24 V DC output and is designed for easy integration with other modules and systems. It also includes advanced diagnostics and troubleshooting capabilities, ensuring that operators can quickly detect faults and maintain system efficiency.

Product Parameters

Product Applications

The Yokogawa ADV551-D032 discrete output module is used in a wide range of industrial applications where it is essential to control field devices based on digital inputs. Its applications include:

• Factory Automation: The module is used to control actuators, solenoid valves, and relays in automated production lines. It converts digital signals from a control system into reliable, fast actuator commands.

• Process Control: In industries such as chemical processing, oil and gas, and power generation, the module outputs control signals to process valves, pumps, and other equipment, helping regulate the flow of materials and energy.

• Safety Systems: The ADV551-D032 module is also used in safety-critical systems, where discrete outputs are required to trigger emergency shutdown systems, alarms, or fire suppression systems.

• Machine Monitoring: The module controls machine status indicators, alarm relays, and other devices in machine monitoring systems, ensuring that equipment operates within set parameters.

• Building Automation: The module can be used in HVAC systems to control the operation of devices like fans, heaters, and lighting, ensuring energy efficiency in building management systems.

The DIN rail mounting capability allows for quick and easy installation within control cabinets or enclosures, making it an ideal solution for applications requiring compact, high-density output control.

Product Advantages

The Yokogawa ADV551-D032 offers numerous advantages that make it an ideal choice for industrial automation:

• Compact and Lightweight: With dimensions of 150 x 325 mm and a weight of 0.5 kg, this module is both space-efficient and easy to install, providing flexibility in system integration.

• High Channel Density: The module supports 32 discrete output channels, allowing it to control a large number of field devices from a single module, optimizing space and reducing the need for additional modules.

• Fast and Reliable Response Time: The ADV551-D032 ensures quick and reliable signal processing, providing timely control signals to actuators and devices.

• Wide Operating Temperature Range: The module operates within a temperature range of -20°C to +60°C, making it suitable for use in a wide variety of environments.

• Easy Integration: Its compatibility with DIN rail mounting ensures easy integration into control panels and cabinets, simplifying installation in existing automation systems.

• Compliance with Industry Standards: Certified with CE and UL, the module meets the stringent safety and performance standards required for industrial automation applications.

• Advanced Diagnostics: The ADV551-D032 features built-in diagnostics, providing system status information and helping to quickly identify faults, minimizing downtime and improving system reliability.

• Versatile Applications: It is ideal for use in various industries, including manufacturing, process control, and building automation, providing flexible and reliable control for field devices.

FAQ

1. What is the primary function of the Yokogawa ADV551-D032?

   • It is a discrete output module used to send digital control signals to field devices such as actuators, relays, and valves.

2. What is the output voltage for this module?

   • The module outputs 24 V DC signals to connected field devices.

3. What is the number of output channels on the ADV551-D032?

   • The module has 32 discrete output channels.

4. What is the operating temperature range of the module?

   • The module operates within the temperature range of -20°C to +60°C.

5. How is the module mounted?

   • The ADV551-D032 is DIN rail mounted, making installation quick and easy in control panels.

6. What are the certifications for the ADV551-D032?

   • The module is certified with CE and UL for safety and performance.

7. What are the main advantages of using the ADV551-D032?

   • It offers high channel density, fast signal processing, easy installation, and advanced diagnostics, making it ideal for industrial automation.

8. Can this module be used for process control applications?

   • Yes, the ADV551-D032 is widely used in process control systems to control devices like pumps, valves, and motors.

9. What is the module’s weight?

   • The module weighs 0.5 kg, making it lightweight and easy to handle.

10. Is the ADV551-D032 suitable for safety-critical applications?

    • Yes, the module is used in safety systems where reliable discrete outputs are required to trigger emergency shutdowns, alarms, or safety mechanisms.
