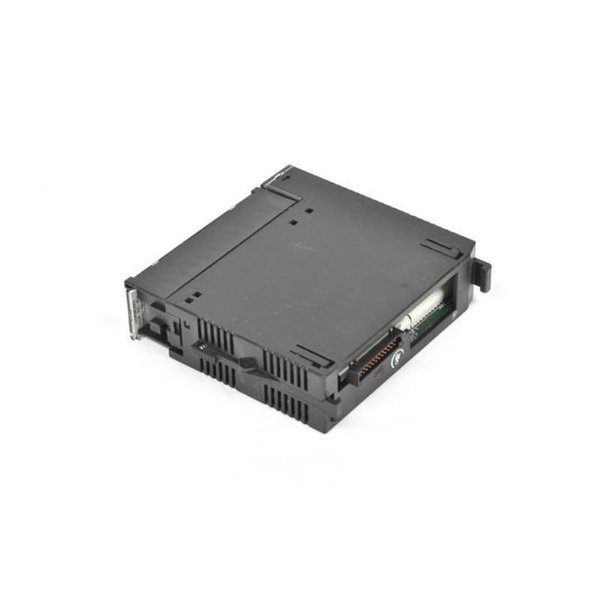

General Electric IC694BBM331C Controller

The GE IC694BBM331C is a highly reliable Battery Backup Module used for the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) systems. This module is designed to provide consistent backup power to the PLC’s memory, preventing any data loss during power failures. It integrates seamlessly with the existing system, ensuring that the PLC’s configuration and process data are preserved during an outage, thereby preventing downtime or loss of critical data. This backup module is an essential part of any automated control system that requires uninterrupted operation and memory retention even in the absence of direct power supply.

Product Specifications

Product Applications

The IC694BBM331C battery backup module is designed for use in various industrial automation and control systems, including:

• Manufacturing Automation: Used in systems where continuous operation is critical to prevent production downtime.

• Process Control Systems: Ensures the memory retention in control systems that regulate processes like temperature, pressure, and flow.

• Energy Management Systems: Helps preserve data in real-time monitoring and control of energy distribution.

• Oil and Gas Industry: Used for systems that need to operate in harsh environments where power interruptions could lead to safety hazards.

• Utilities and Water Treatment: Ensures control systems in water treatment plants and other utility infrastructures continue to run without loss of data.

Advantages

1. Reliability: The GE IC694BBM331C ensures that PLC data is protected, even when the main power supply is interrupted.

2. Seamless Integration: It is easily integrated into existing GE Fanuc Series 90-30 PLC systems without needing significant modifications.

3. Extended Battery Life: With a battery life of approximately 5-7 years, this module minimizes maintenance efforts and costs.

4. Compact Design: The module’s compact size makes it suitable for applications where space is limited.

5. Wide Temperature Range: Operates in extreme temperatures, making it suitable for harsh industrial environments.

6. Cost-Efficiency: By preventing data loss and minimizing downtime, it offers a cost-effective solution for systems that demand continuous operation.

7. Long-Term Durability: Built for long-term operation, reducing the frequency of replacements.

FAQs (Frequently Asked Questions)

1. What is the purpose of the GE IC694BBM331C module?

   The GE IC694BBM331C is a battery backup module that ensures the retention of memory and data in a GE Fanuc Series 90-30 PLC during power outages.

2. How does this module protect data?

   The module provides backup power through a lithium battery, preventing the loss of critical configuration and process data during power interruptions.

3. What is the typical battery life for this module?

   The battery life is approximately 5 to 7 years, depending on usage and environmental conditions.

4. What is the operating temperature range of this module?

   The module can operate between 0°C to 60°C (32°F to 140°F), making it suitable for most industrial environments.

5. Can the IC694BBM331C be used with other PLC systems?

   No, this module is specifically designed for the GE Fanuc Series 90-30 PLC and is not compatible with other PLC systems.

6. What is the weight of the IC694BBM331C module?

   The module weighs 0.5kg.

7. How is the module installed?

   The module can be easily installed into the GE Fanuc Series 90-30 PLC system by mounting it in the appropriate slot and ensuring proper connections.

8. What kind of maintenance does this module require?

   The module requires minimal maintenance. However, it’s recommended to check the battery every few years to ensure it is functioning properly.

9. Can this module be used in extreme environments?

   Yes, the module is designed to operate in a wide range of temperatures, from -20°C to 70°C (-4°F to 158°F), making it suitable for various industrial environments.

10. What happens if the battery in the IC694BBM331C fails?

    If the battery fails, the module will no longer provide backup power, and the PLC will lose data during power outages. It is essential to replace the battery to restore functionality.
