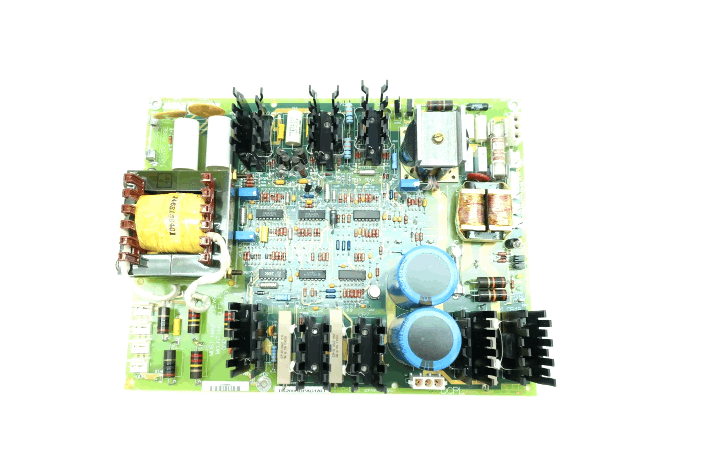

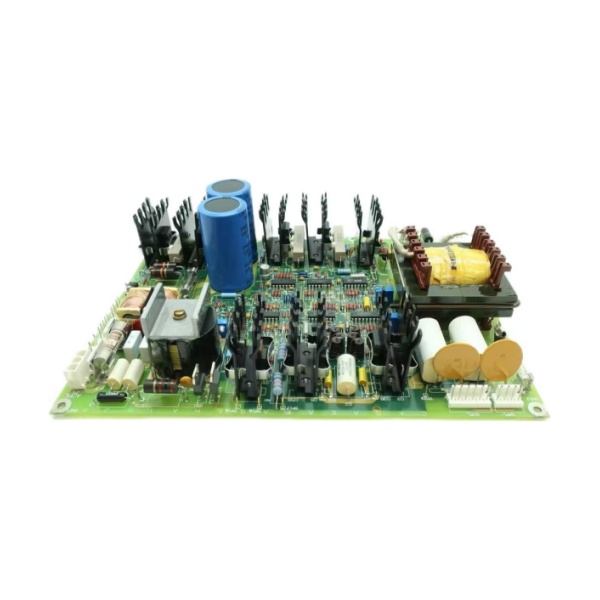

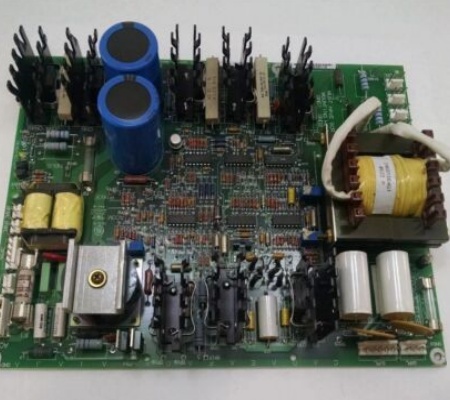

General Electric DS200GDPAG1ALF High Frequency Power Supply Board
Item Number:DS200GDPAG1ALF
Brand:GE
Lead Time: In stock
Description:High Frequency Power Supply Board
Payment: T/T
Product Description
The DS200GDPAG1ALF is a GE Mark V series High Frequency Power Supply Board. It features a plug-and-stab connector design, provides 600-700W of power output, and supports both AC and DC inputs. Test points also allow the DS200GDPAG1ALF to quickly locate power supply anomalies.
Function & Features
- Connections and Installation: The GE DS200GDPAG1ALF is equipped with 12 plug connectors and two stab-on connectors, with grounding provided via three mounting screws (GND1, GND2, and GND3).
- Buck Chopper: The GE DS200GDPAG1ALF regulates the DC bus voltage to maintain output voltage to match the load.
- 27 kHz Inverter: The GE DS200GDPAG1ALF converts DC power to high-frequency AC power to power components in the system requiring AC power.
Specifications
|
Model |
DS200GDPAG1ALF |
|
Series |
General Electric Mark V |
|
Power Range |
600 to 700 Watts |
|
Input Voltage Range |
80-132 VAC (AC) or 105-140 VDC (DC) |
|
Output Transformer |
50 Volts AC |
|
Control Power Supply |
120 Volts DC |
|
Inverter Frequency |
27 KHz |
|
Indicators |
4 LEDs, 2 Neon Indicators |
