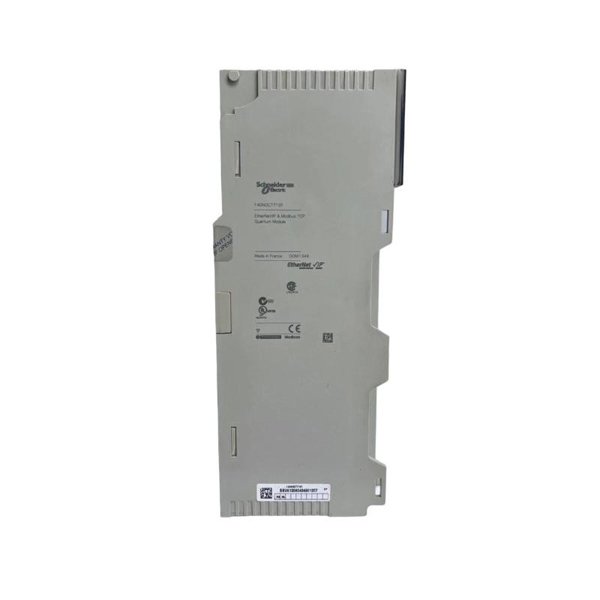

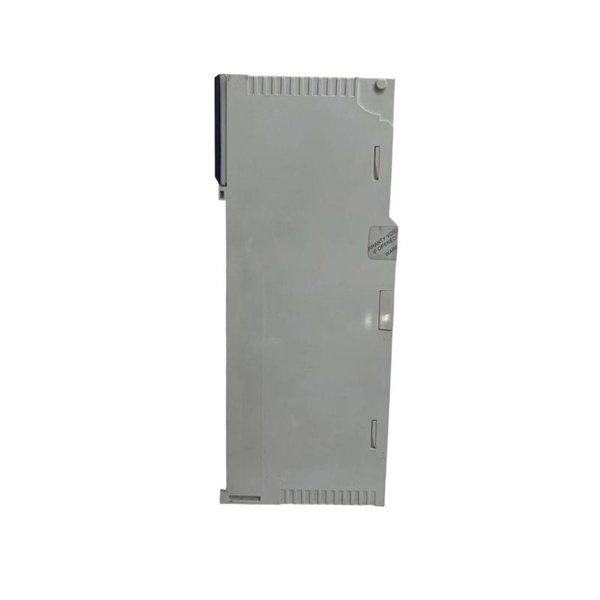

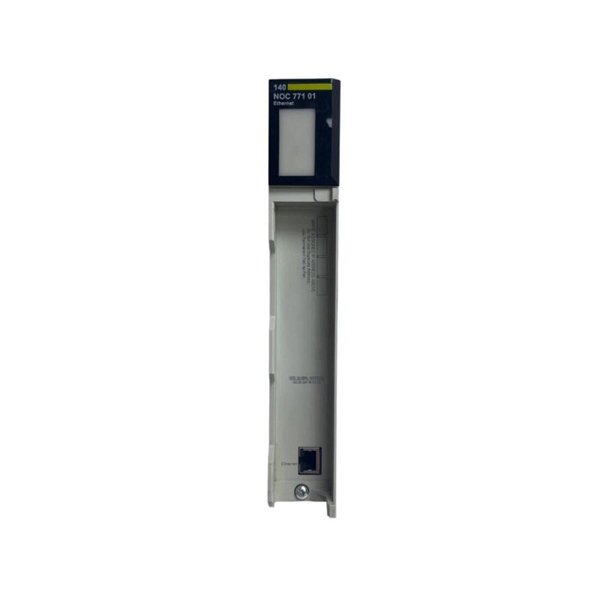

Schneider 140NOC77101 Ethernet Communication Module

The Schneider 140NOC77101 Ethernet Communication Module is a robust and high-performance Ethernet interface designed for the Modicon Quantum PLC platform. This module enables reliable, secure, and high-speed network communication, providing a seamless connection between Quantum PLC systems and plant or enterprise-level Ethernet networks.

With its support for standard industrial protocols and advanced communication functions, the 140NOC77101 allows users to integrate their automation systems into modern Ethernet architectures, facilitating real-time monitoring, diagnostics, and data exchange. Its design emphasizes reliability, making it ideal for continuous operation in demanding industrial environments.

The module is widely used in applications that require high data throughput, secure communication, and remote system access.

Key Features

• High-speed Ethernet connectivity for Modicon Quantum PLCs

• Supports Modbus TCP/IP and other standard industrial communication protocols

• Enables real-time monitoring, diagnostics, and control over Ethernet networks

• Integrated web server for easy configuration and system monitoring

• Supports multiple simultaneous connections for distributed architectures

• LED indicators for network link, activity, and module status

• Industrial-grade design for reliable operation in harsh environments

• Hot-swappable for minimal system downtime during maintenance

• Facilitates integration with SCADA, DCS, MES, and ERP systems

• Compliant with global industrial standards for safety and reliability

Technical Specifications

Industry Applications

The 140NOC77101 Ethernet Communication Module is designed for a broad range of industries where high-speed, reliable network integration is essential:

• Manufacturing Automation: Real-time data exchange between control systems, production lines, and enterprise networks

• Power Generation and Distribution: Remote monitoring and diagnostics for substations and control centers

• Oil & Gas Industry: Reliable communication for pipeline monitoring, remote terminals, and process safety systems

• Transportation Infrastructure: Network integration for signaling, control, and monitoring systems in transportation networks

• Water and Wastewater Treatment: Secure data communication for remote control of treatment plants and pumping stations

• Facility Management: Ethernet connectivity for building automation, energy management, and security systems

Product Advantages

• High-Speed and Reliable Communication: Ensures fast, stable Ethernet connectivity for industrial control systems

• Advanced Diagnostics and Monitoring: Integrated web server provides easy configuration and system status visibility

• Remote Access Capability: Facilitates off-site monitoring, troubleshooting, and control for increased system flexibility

• Support for Standard Protocols: Compatible with Modbus TCP/IP and other widely used industrial protocols

• Enhanced System Uptime: Hot-swappable feature allows module replacement without halting system operations

• Durability for Harsh Conditions: Designed to endure vibration, shock, and temperature fluctuations in industrial settings

• Scalable Network Integration: Supports complex distributed architectures and multiple network connections

• Compliance with Global Standards: Certified to meet CE, UL, CSA, and RoHS requirements

• Easy Installation and Maintenance: Integrates seamlessly with Modicon Quantum racks and standard Ethernet infrastructure

• Ideal for Mission-Critical Applications: Provides secure, real-time communication for high-reliability environments

Frequently Asked Questions (FAQ)

1. What is the main function of the 140NOC77101 module?

It provides Ethernet TCP/IP communication for Modicon Quantum PLCs, enabling network connectivity for monitoring and control.

2. Which protocols are supported by the module?

The module supports Modbus TCP/IP, TCP/IP, SNMP, HTTP, and FTP protocols for versatile system integration.

3. Does the module have a built-in web server?

Yes, the module includes an integrated web server for configuration, monitoring, and diagnostics.

4. Can I replace the module without stopping the system?

Yes, it is hot-swappable, allowing replacement without disrupting system operation.

5. What type of Ethernet connection does it provide?

It offers a standard 10/100 Mbps Ethernet interface with an RJ45 connector.

6. Is the module compatible with all Modicon Quantum PLCs?

Yes, it is designed to integrate with the entire range of Modicon Quantum controllers and racks.

7. How can I monitor the module’s status?

LED indicators provide visual feedback on network link status, activity, and module health.

8. What is the typical power consumption of the module?

The typical power consumption is approximately 5 Watts.

9. Is the module suitable for industrial environments?

Yes, it meets IEC standards for shock and vibration resistance, ensuring reliable operation in harsh conditions.

10. What certifications does the 140NOC77101 hold?

The module is certified with CE, UL, CSA, and RoHS for global industrial use.
