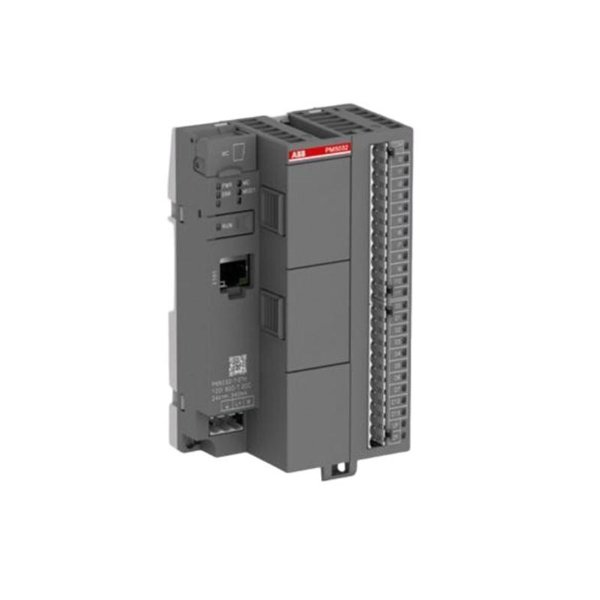

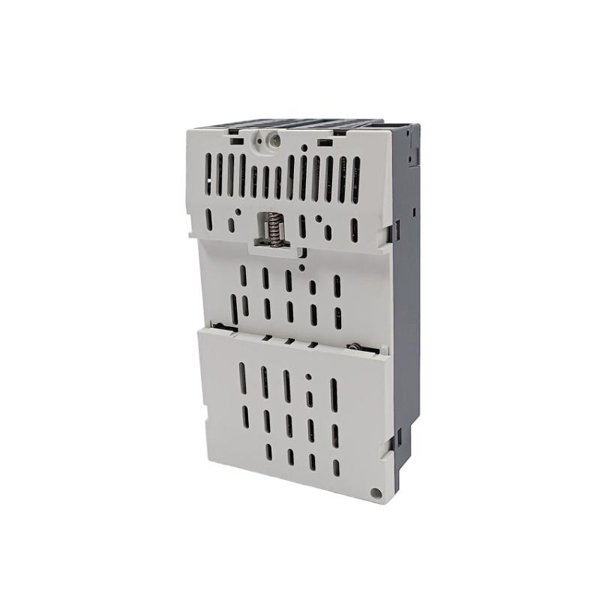

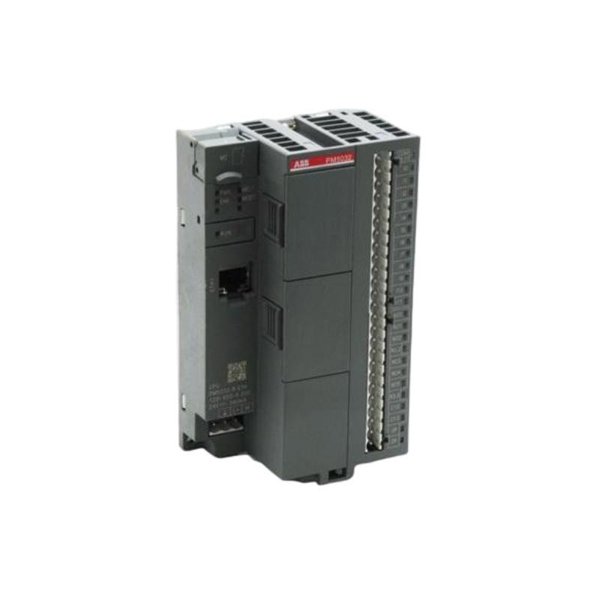

ABB PM5032-T-ETH 1SAP123400R0072 CPU Programmable Logic Controller

The ABB PM5032-T-ETH (1SAP123400R0072) is a high-performance CPU module from ABB’s AC500-eCo PLC family, specifically designed for compact automation tasks with extended networking capabilities. This unit integrates a powerful CPU, digital I/O, and multiple communication interfaces, including Ethernet and serial ports, making it ideal for small to mid-sized control applications in various industries.

Engineered for cost-effective automation, the PM5032-T-ETH features a compact design while delivering the robustness and reliability required in modern control environments. Its programmable capabilities allow it to support standard IEC 61131-3 programming languages, enabling flexible control solutions with fast deployment and scalability.

Key Features

• Integrated CPU, Ethernet, serial, and digital I/O

• 32 digital inputs/outputs (24 VDC)

• Compatible with CoDeSys development environment

• IEC 61131-3 compliant programming (ST, LD, FBD, IL, SFC)

• Built-in real-time clock (RTC)

• Web server capability for remote diagnostics

• USB interface for firmware updates and data transfer

• DIN rail mounting for easy installation

• Compact, fanless design for extended system life

Technical Specifications

Industry Applications

The PM5032-T-ETH is suited for a wide range of automation tasks in various industrial domains:

• Water and Wastewater Treatment – Pump control, filtration, level monitoring

• Building Automation – HVAC control, lighting systems, access and security control

• OEM Machine Control – Packaging machines, conveyors, small assembly lines

• Material Handling – Warehouse automation, lifting systems, sorters

• Agricultural Automation – Irrigation control, greenhouse systems

• Renewable Energy – Solar plant control, battery monitoring, and inverter coordination

• Food and Beverage – Batch processing, temperature control, bottling line control

Product Advantages

• All-in-One Design: CPU, I/O, and communication interfaces integrated in a single compact unit

• Flexible Networking: Supports both Ethernet and serial-based communication protocols

• User-Friendly Programming: Fully programmable via CoDeSys in IEC-compliant languages

• Industrial-Grade Build: Engineered for 24/7 operation in challenging industrial settings

• Scalability: Ideal for small systems but expandable via ABB S500 I/O modules

• Low Power Consumption: Energy-efficient CPU and solid-state design reduce system load

• Remote Access: Embedded web server and diagnostics enable remote monitoring and maintenance

• Minimal Footprint: Compact dimensions help save panel space and reduce wiring complexity

Frequently Asked Questions (FAQ)

1. Q: Is the PM5032-T-ETH programmable using CoDeSys?

   A: Yes, it fully supports CoDeSys with IEC 61131-3 programming languages.

2. Q: What communication protocols are available?

   A: It supports Modbus TCP, Modbus RTU, HTTP, and SNTP via Ethernet and serial ports.

3. Q: How many I/Os does the unit have?

   A: It features 16 digital inputs and 16 digital outputs onboard.

4. Q: Can this PLC be expanded with additional I/O modules?

   A: Yes, it supports expansion via ABB’s S500 series I/O modules.

5. Q: Is the RTC battery-backed?

   A: Yes, it includes a real-time clock with backup for timekeeping during power loss.

6. Q: What is the operating voltage range?

   A: The unit operates at 24 VDC nominal, with a range of 19.2–30 VDC.

7. Q: Is there a built-in web server?

   A: Yes, it includes a web server for remote diagnostics and monitoring.

8. Q: Does it support firmware updates via USB?

   A: Yes, firmware updates and data transfer are supported through the USB port.

9. Q: Can the PM5032-T-ETH be DIN-rail mounted?

   A: Absolutely, it’s designed for quick DIN rail installation.

10. Q: Is it suitable for outdoor use?

    A: It must be housed in a suitable enclosure, as the unit itself is IP20 rated.
